Conguring CAN Settings
Conguring user frame transmission
When operating in receive mode, you can send user-dened CAN frames to the CAN bus.
This section describes how to select the frames to send to the CAN bus and the timing at which
they will be sent.
3
3
4
4
5
5
6
6
7
7
1
1
2
2
1
1

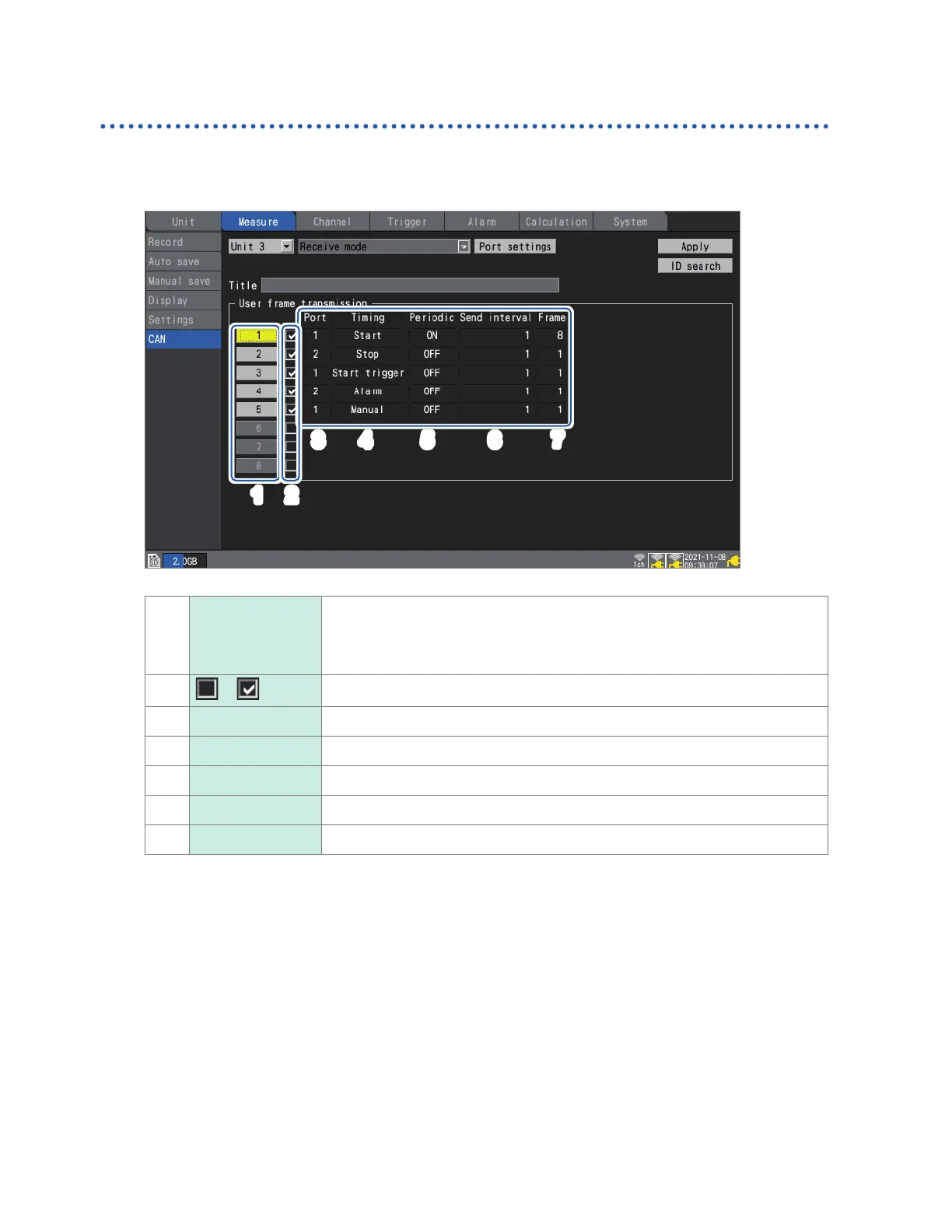

1 to 8 Displays the user frame number. Eight conditions can be congured per unit.
Pressing the ENTER key after selecting a user frame number will open a dialog
box of detailed settings.
See “Detailed settings for user frame transmission” (p. 49).
2
2

,
Selects whether to send the user frame for each set of conditions.
3
3
Port Indicates the port.
4
4
Timing Displays the transmission timing.
5
5
Periodic Indicates whether the frame will be sent periodically.
6
6
Send interval Indicates whether the frame will be sent periodically.
7
7
Frame Displays the number of frames that will be sent.
