Hioki MEMORY HiLOGGER LR8450 User Manual

49
Conguring CAN Settings

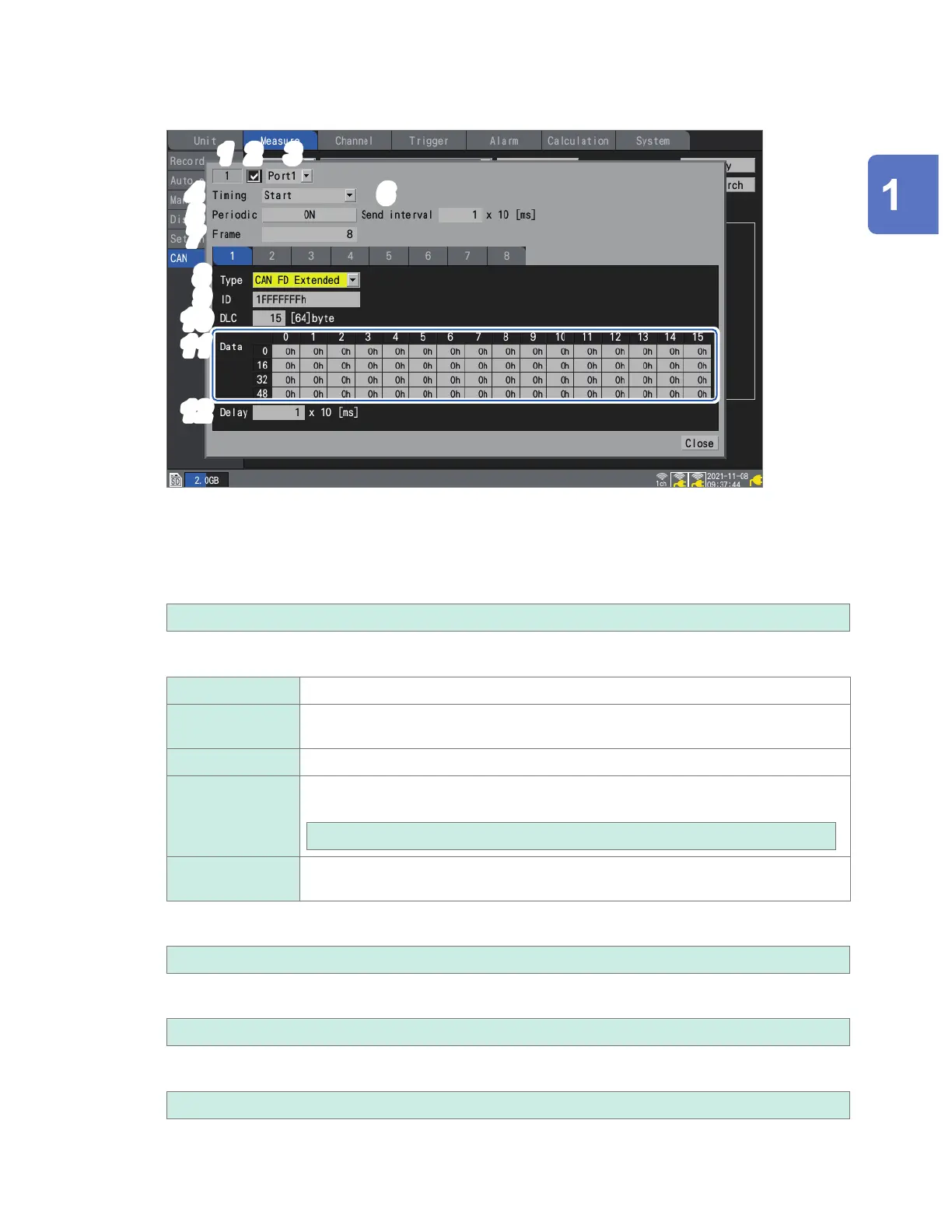

Detailed settings for user frame transmission
1
1
2
2
4
4
5
5
6
6
3
3
7
7
8
8
9
9
10
10
11
11
12
12
1
The user frame number is displayed.
2
Select whether to send the frame.
3
Select the CAN port from which to send the frame.
Port1

, Port2
4
Under [Timing], select when to send the frame.
Start

Starts transmission when measurement starts.
Stop Send just one frame when measurement stops.
Periodic: O󰀨; Frame: xed to 1; Delay: disabled
Start trigger Starts transmission when the start trigger is activated.
Alarm Starts transmission when an alarm occurs.
Select the target alarm number.
All ALM

, ALM1 to ALM8
Manual Starts transmission based on user input for the CAN frame transmission dialog box
shown on the [Wave+Set] waveform screen. (p. 51)
5
Under [Periodic], select whether to send the frame periodically after sending all frames.
OFF

, ON
6
Under [Send interval], select the interval at which to periodically send the frame.
1

to 9999 (×10 [ms])
7
Under [Frame], select the number of frames to send.
1

to 8
Settings and Operation
HIOKI LR8450A964-03
