Hioki MEMORY HiLOGGER LR8450 User Manual

120
Analog Triggers, Pulse Triggers, Waveform Calculation Triggers
Pulse triggers
Waveform calculation triggers
See “Level triggers” (p. 121) and “Window triggers” (p. 123) .
3

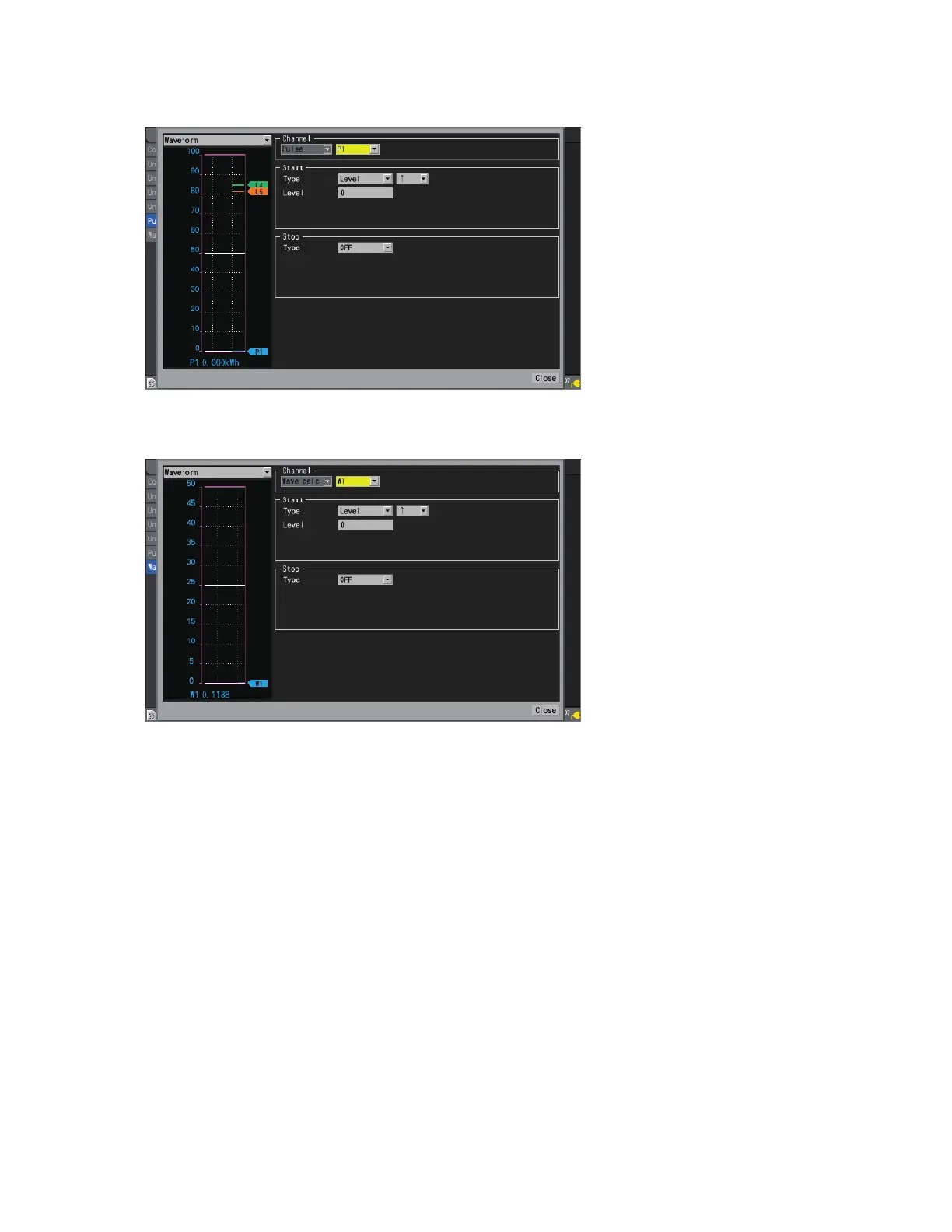

Congure the trigger function settings.
You can also congure settings on the list screen without opening the settings window.
When [Timing] is set to [Start], a [Start] trigger will be set.
When [Timing] is set to [Stop], a [Stop] trigger will be set.
When [Timing] is set to [Start & Stop], two triggers will be set (one [Start] trigger and one [Stop]
trigger).
For more information about trigger timing, see “Shared settings” (p. 116).
