196
Performing Numerical Calculations
5
(When [Target CH] is set to a value other than [All CH])
Set the individual channel for which the calculation is to be performed.
6
(When [Type] is set to [Usage ratio], [ON time], [OFF time], [ON count], or [OFF count])
Under [Threshold], set the reference value.
See “Value entry method” (p. 9).
7
(When [Type] is set to [Aggregation] or [Integration])
Select the calculation method.
For information about the calculation methods, see “Numerical calculation formulas” (p. 200).
Total
Calculates the dierence between the integration or area enclosed by the zero position
and the part of the signal waveform where its amplitude is positive and the integration
or area enclosed by the zero position and the part of the signal waveform where its
amplitude is negative.
Positive Calculates the integration or area enclosed by the zero position and the part of the
signal waveform where its amplitude is positive.
Negative Calculates the integration or area enclosed by the zero position and the part of the
signal waveform where its amplitude is negative.
ABS Calculates the integration or area enclosed by the zero position and the signal
waveform.
> >
8
8
(When saving the numerical calculation results)

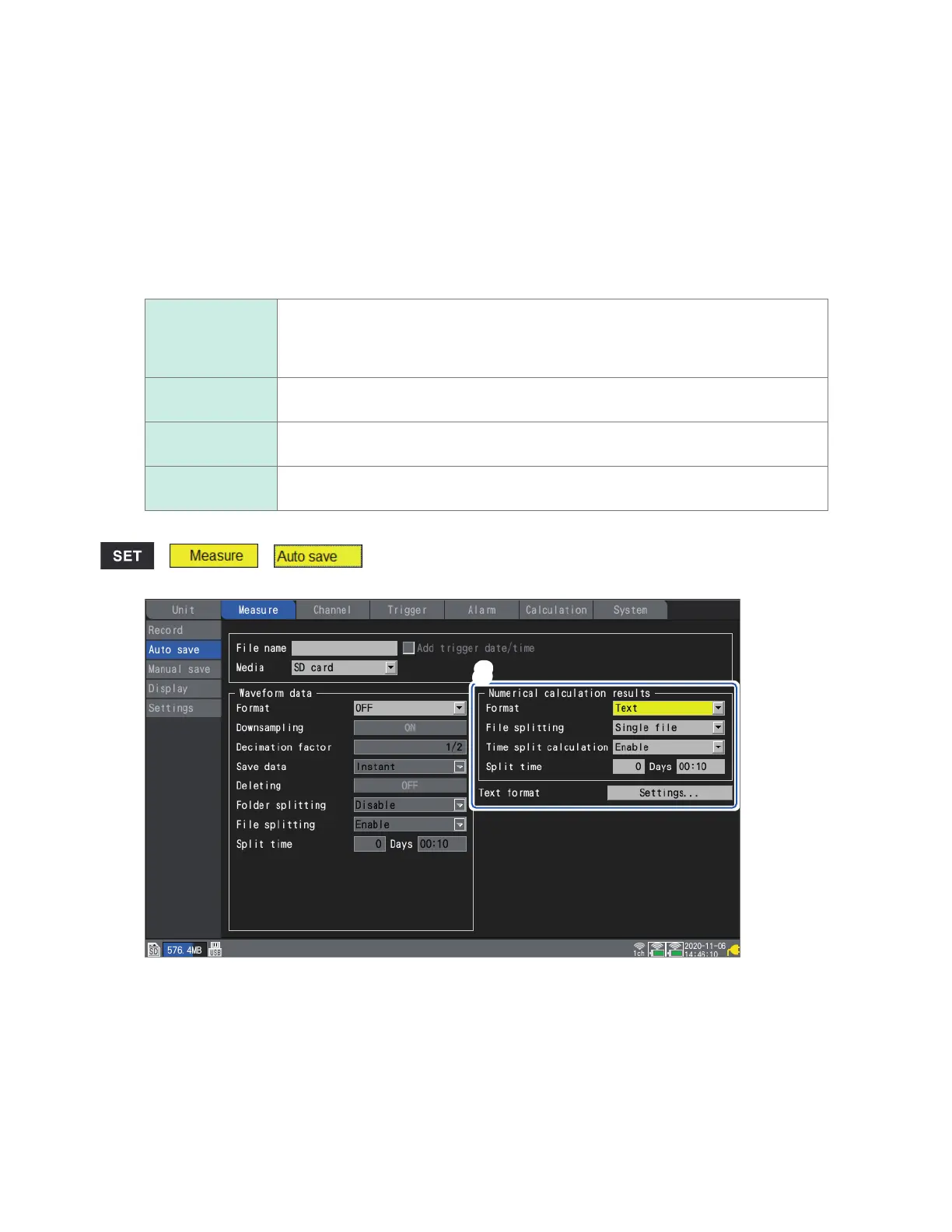

Auto saving: Congure the settings in the [Numerical calculation results] area. (See p. 146.)
Manual saving: Under [Type], select [Calc results]. (See p. 150.)
