X-Y Compositing

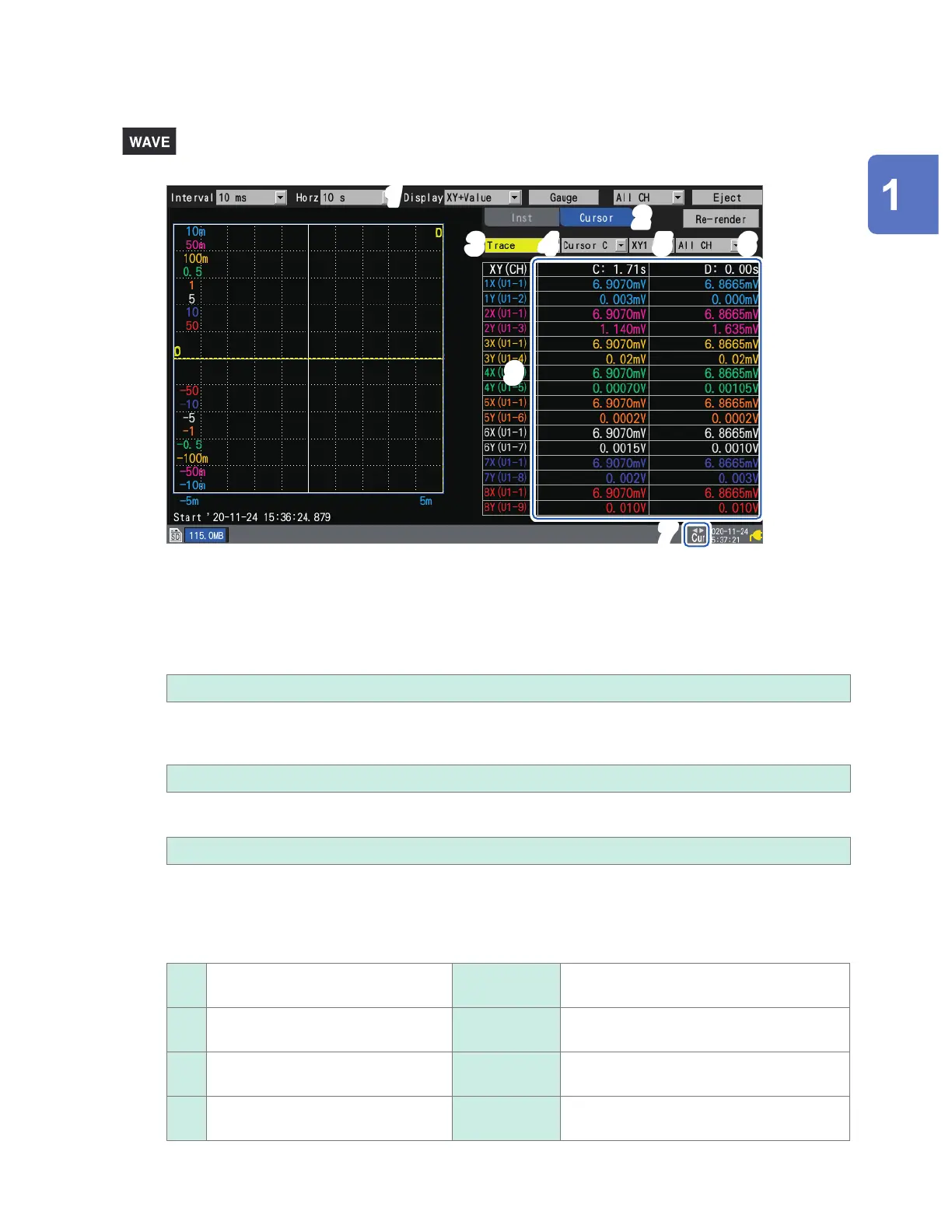

Using the trace cursors to check values
1
2
3
4
5
6
7
9
1
Under [Display], set the display to [XY+Value].
2
Set the display item to [Cursor].
3
Select [Trace] under the cursor settings.
4
Select the target cursor(s).
Cursor C
, Cursor D, Sync
You can manipulate the target cursor(s) using the SCROLL/CURSOR keys.
5
Select the X-Y waveform for which you wish to read values using the trace cursors.
XY1
to XY8
6
Select the display format.
All CH
, Target CH
7
Press the SELECT key to display the cursor icons.
8
Press the SCROLL/CURSOR keys to move the C and D cursors.
Key operation
Moves the cursor left a large amount
(10 data points at a time).
SELECT +
Moves the cursor 10000 data points to the
left.
Move the cursor right a large amount
(10 data points at a time).
SELECT +
Moves the cursor 10000 data points to the
right.
Moves the cursor left a small amount
(1 data point at a time).
SELECT +
Moves the cursor 50 data points to the left.
Move the cursor right a small amount
(1 data point at a time).
SELECT +
Moves the cursor 50 data points to the right.
9
Check the measured values at the C and D cursors.
