Noise Countermeasures

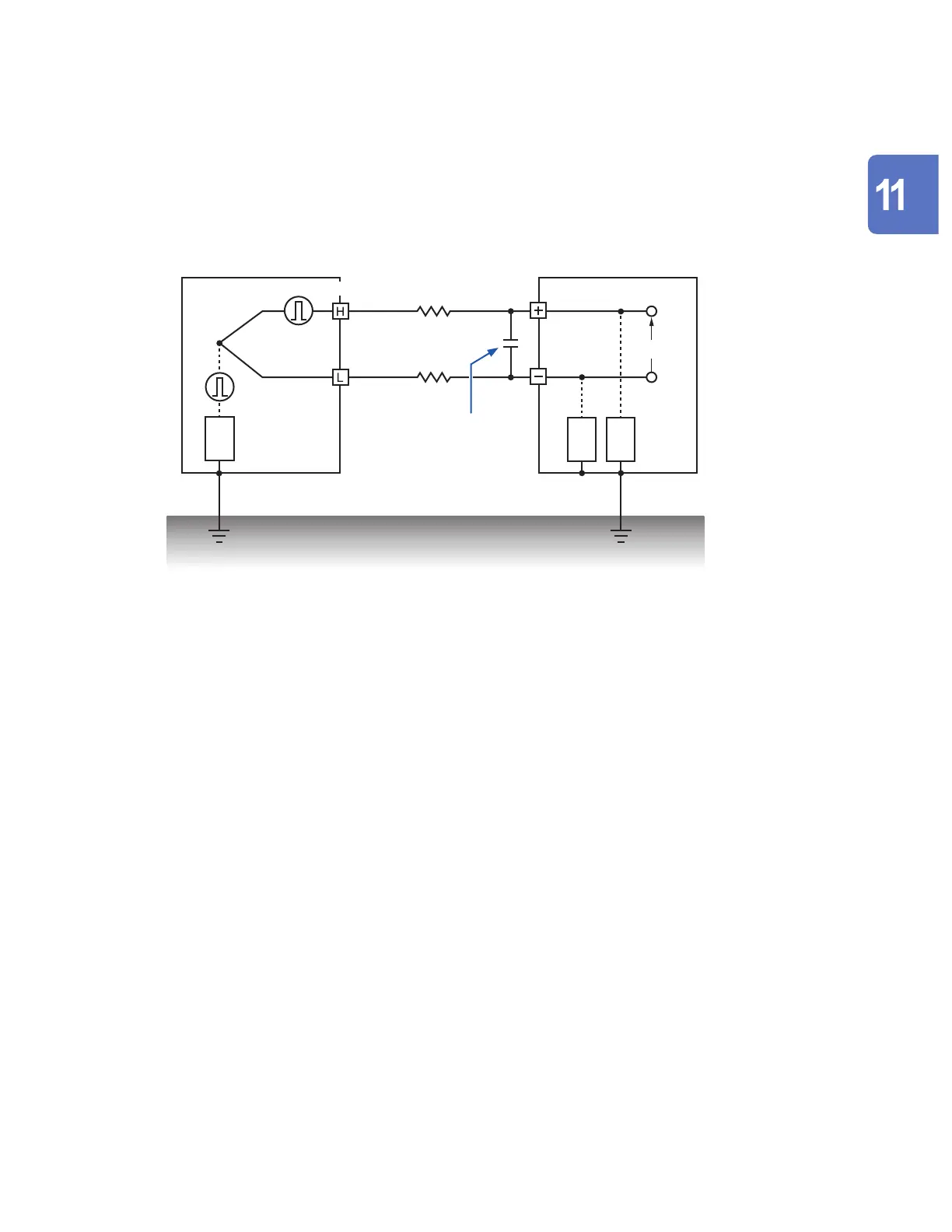

Adding capacitors to signal lines
An e󰀨ective way to address noise caused by superposed signal sources or high-frequency pulses
is to insert a capacitor between the positive and negative input terminals. The capacitor will keep
the noise out of the device’s internal circuitry.
Use a capacitor whose rated voltage is greater than the voltage being input.
Since the lter is applied before channels are scanned, there are no limitations on the data refresh
interval.
Device under measurement
Measurement module
Thermocouple
Enm'
r
1
r
2
Vin
Z
1
Z
2
Z
3
Use a capacitor with a
capacitance of several μF
to several thousand μF.
Insert between the positive
and negative measurement
terminals.
