Hioki MEMORY HiLOGGER LR8450 User Manual

42
Conguring Input Channels
When the range is [r/min]
If the time t [s] is less than t
0
(time specied with the smoothing), the displayed rotational speed will
be the actual rotational speed. (However, t
0
is equal to or more than 2 s.)
If an unintentional trigger activates, set the smoothing time at 1 s.

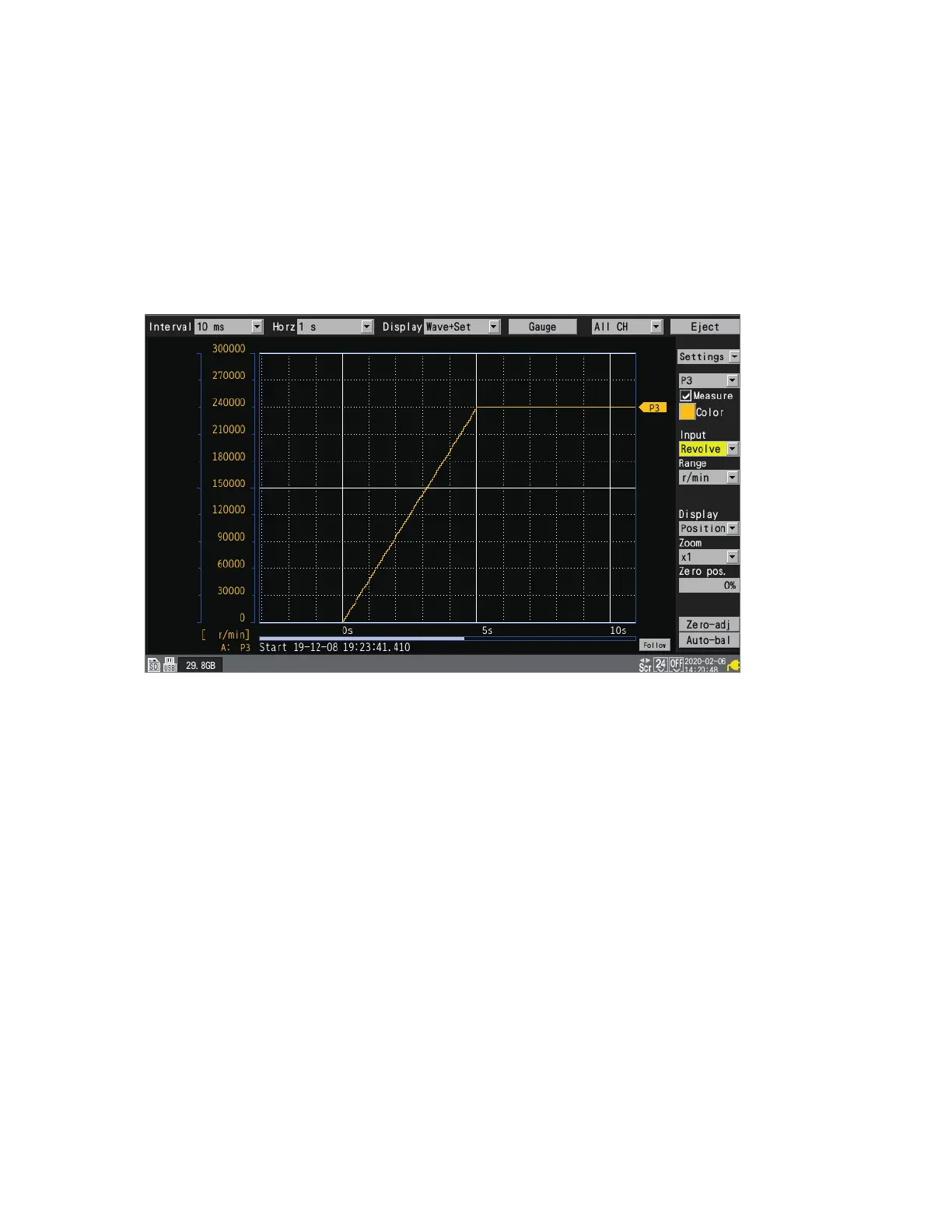

Example when t
0
= 5 s
The rotational speed recorded value will spend t
0
[s] from the start of measurement to increase.
Even if the inputted rotational speed remains constant, the smoothing process will cause the
recorded data to show an increase after the start of measurement until t
0
[s].
HIOKI LR8450A964-03
www.GlobalTestSupply.com
Find Quality Products Online at: sales@GlobalTestSupply.com

Hioki MEMORY HiLOGGER LR8450 Specifications

General

Storage Media	SD card (up to 32 GB)
Measurement Types	Voltage, Temperature, Resistance, Strain, Pulse, Logic
Sampling Rate	1 ms to 1 hour
Interface	LAN, USB, SD card slot
Power Supply	100 to 240 V AC, 12 V DC
Resolution	16-bit
Voltage Range	±10 mV
