Hioki MEMORY HiLOGGER LR8450 User Manual

68
Conguring Channels in a List
3
(U8552, LR8532)
• Press the ENTER key while [16-30>] is selected to display CH16 to CH30.
• Press the ENTER key while [1-15>] is selected to display CH1 to CH15.
4

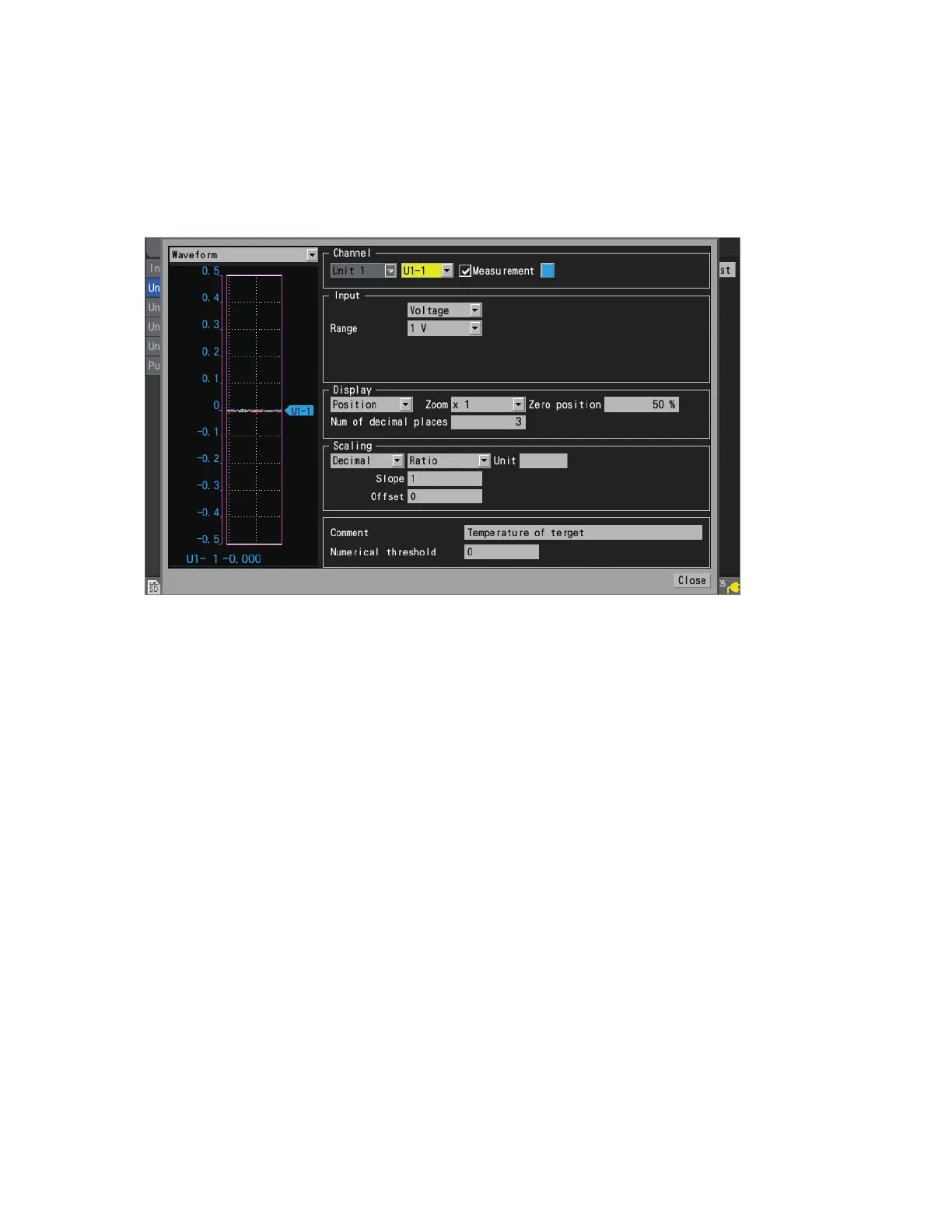

Select a channel number and press the ENTER key.
The individual settings window will open, allowing you to congure the settings.
Press the ESC key to close the window.
See “1.4 Conguring Input Channels” (p. 25).
HIOKI LR8450A964-03
www.GlobalTestSupply.com
Find Quality Products Online at: sales@GlobalTestSupply.com

Hioki MEMORY HiLOGGER LR8450 Specifications

General

Storage Media	SD card (up to 32 GB)
Measurement Types	Voltage, Temperature, Resistance, Strain, Pulse, Logic
Sampling Rate	1 ms to 1 hour
Interface	LAN, USB, SD card slot
Power Supply	100 to 240 V AC, 12 V DC
Resolution	16-bit
Voltage Range	±10 mV
