Rack Mounting
M3 × 6 mm
M4 × 6 mm
1

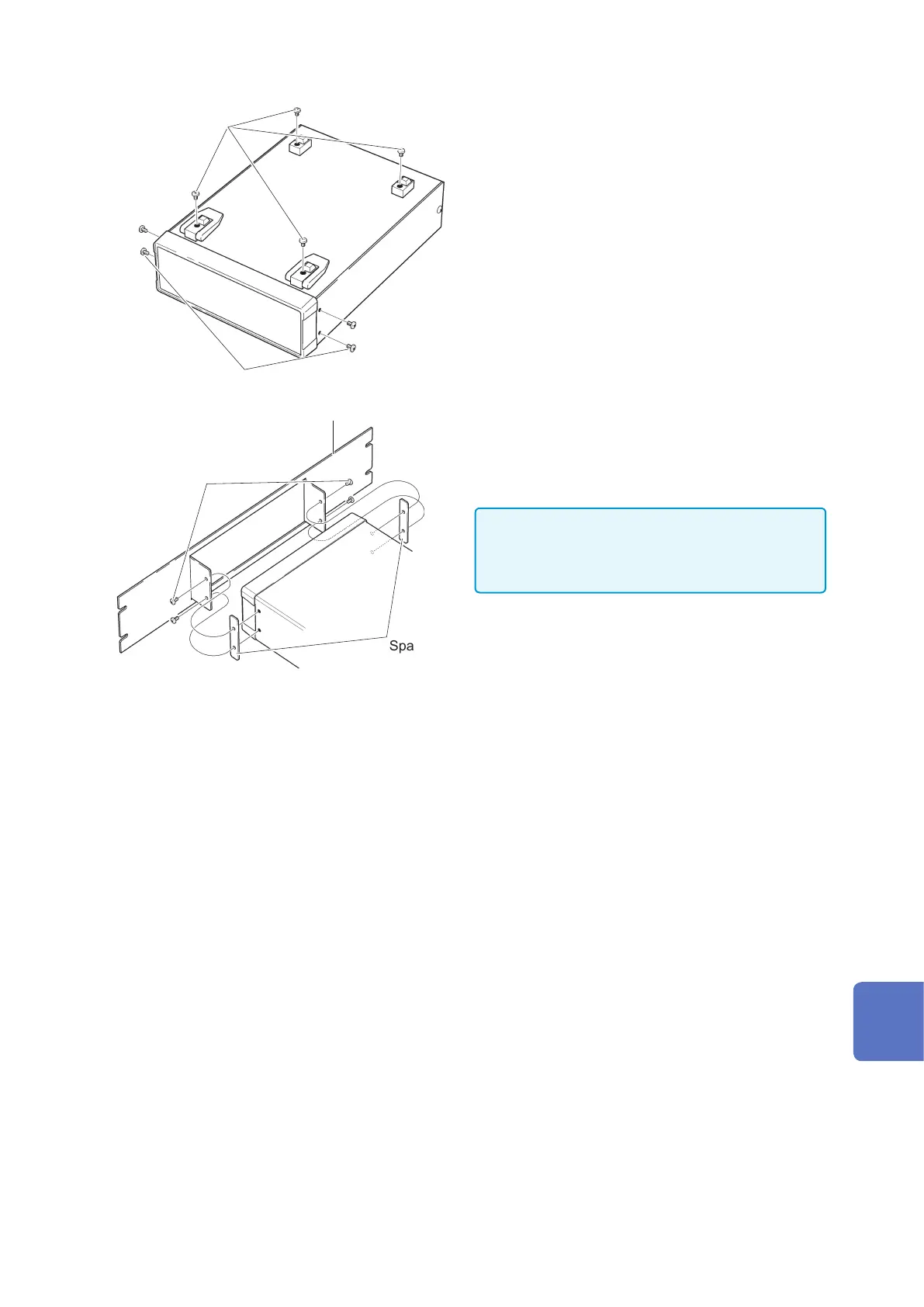

Remove the screws from the RM2611
Electrode Resistance Meter’s support
feet (on the bottom) and side cover (total
of 4 on the sides at the front).
Spacers
M4 × 10 mm
Rack-mounting hardware (JIS, EIA)
2
Insert spacers on both sides of the
RM2611 Electrode Resistance Meter and
then install the rack-mounting hardware
with M4 × 10 mm screws.
IMPORTANT
Use a commercially available stand or other
equipment to reinforce the installation when mounting
the instrument in rack.
