Loading an Electrode Sheet into the RM9003 Press Unit
3.7 Loading an Electrode Sheet into the RM9003
Press Unit
CAUTION
Do not move the electrode sheet if the RM9004 Test Fixture is in contact with it. Doing
so may damage the probes.
Start measurement after verifying that the RM9004 Test Fixture is in contact with the
electrode sheet. Measurement cannot be performed if the RM9004 Test Fixture is not in
contact with the electrode sheet.
IMPORTANT
Exercise caution not to pinch your ngers or other body parts when lowering the RM9004 Test Fixture.
1
2
1
Verify that the up/down lever is in the
raised position.
2

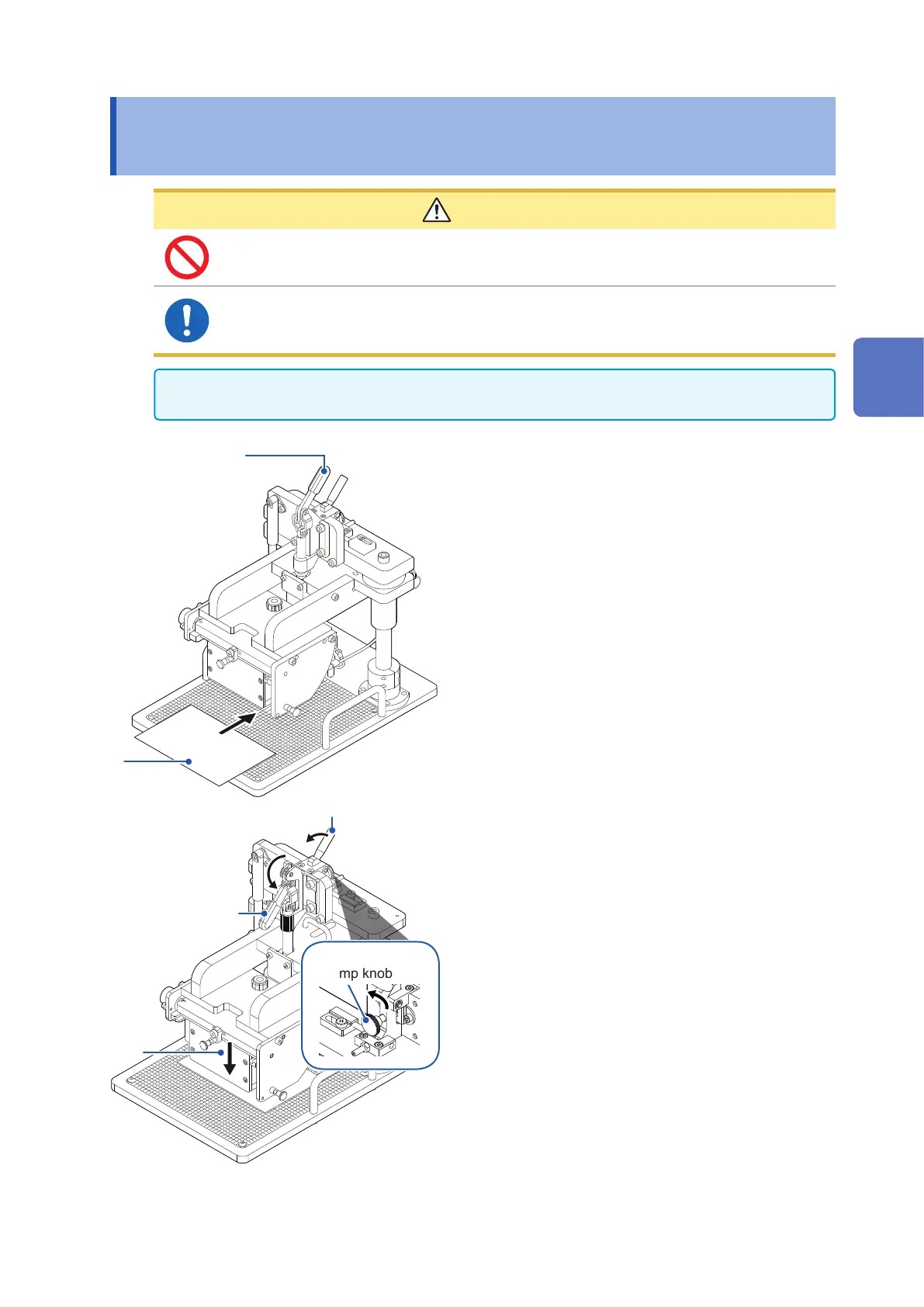

Place an electrode sheet on the
measurement stage.
The probes will make contact with the bold
graduated marks on the graduated plate.
4
5
Up/down lever
3
Lock release lever
clamp knob
4
Lock release lever
3
Verify that the clamp knob on the lock
release lever is loose.
4
Pull the up/down lever toward you and
down while pulling the lock release lever
toward you.
The RM9004 Test Fixture will move downward
under its own weight.
5
Start measurement once the RM9004 Test
Fixture is fully lowered. (p. 47)
6
Once measurement completes, raise the
up/down lever.
7
Remove the electrode sheet from the
measurement stage after verifying that the
RM9004 Test Fixture is fully raised.
