Hioki RM2610 - RM9004 Test Fixture

14
Part Names and Functions
RM9004 Test Fixture
IMPORTANT
The RM9004 Test Fixture’s probes are consumable parts. They require periodic replacement but are not
customer-replaceable. Please contact your authorized Hioki distributor or reseller for more information.
It is recommended to purchase a spare RM9004 Test Fixture since the probe replacement process is time-
consuming.

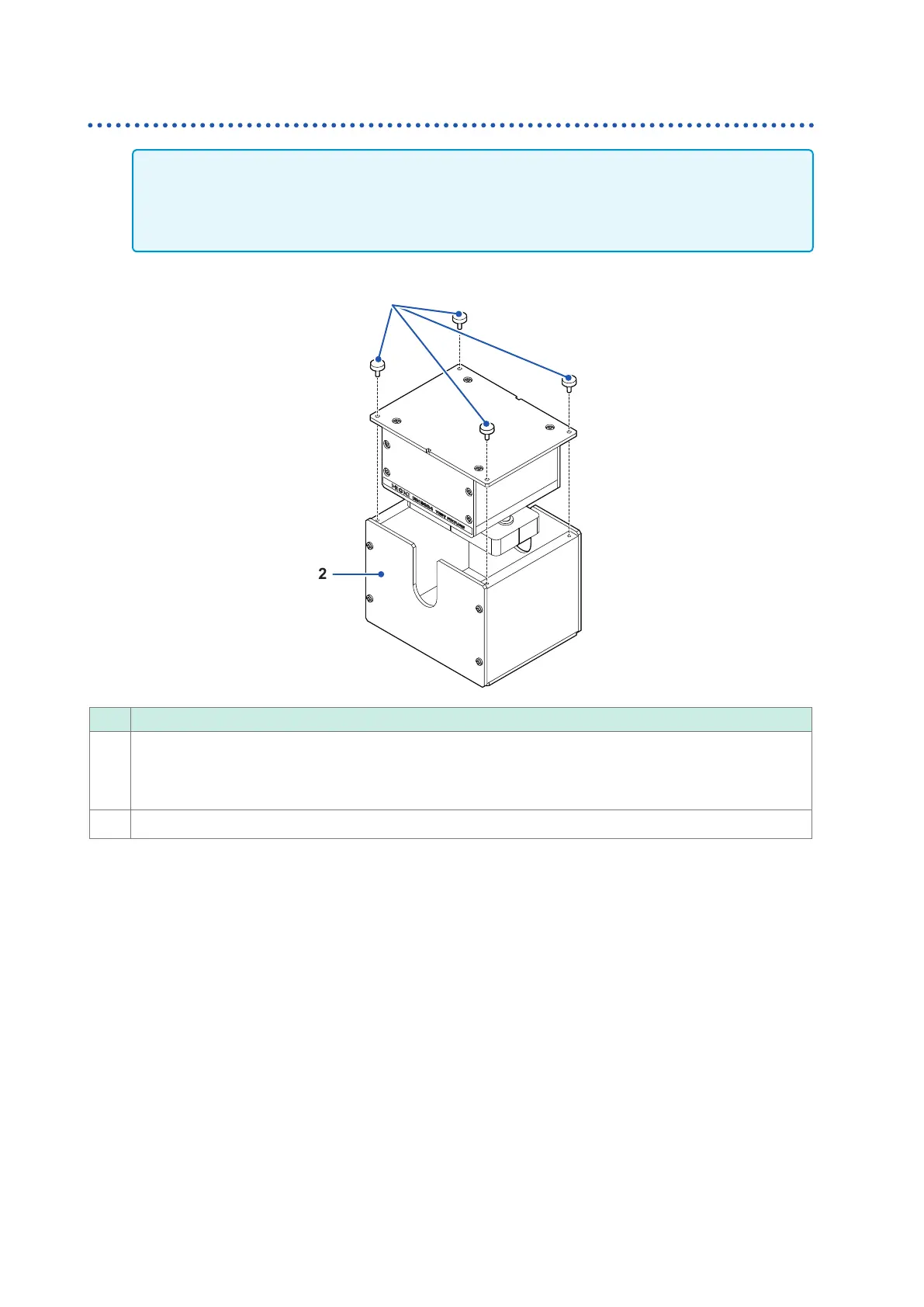

Front and top of the RM9004 Test Fixture
2
1
(Front)
(Top)
No.
Name Description
1
Mounting screws ×4 Hold the RM9004 Test Fixture and the test xture case together. When
using the RM9004 Test Fixture, remove the mounting screw found at each
of the four corners on top of the xture and remove the RM9004 Test Fixture
from its case.
2
Test xture case Used to store or transport the RM9004 Test Fixture.
