15
Part Names and Functions

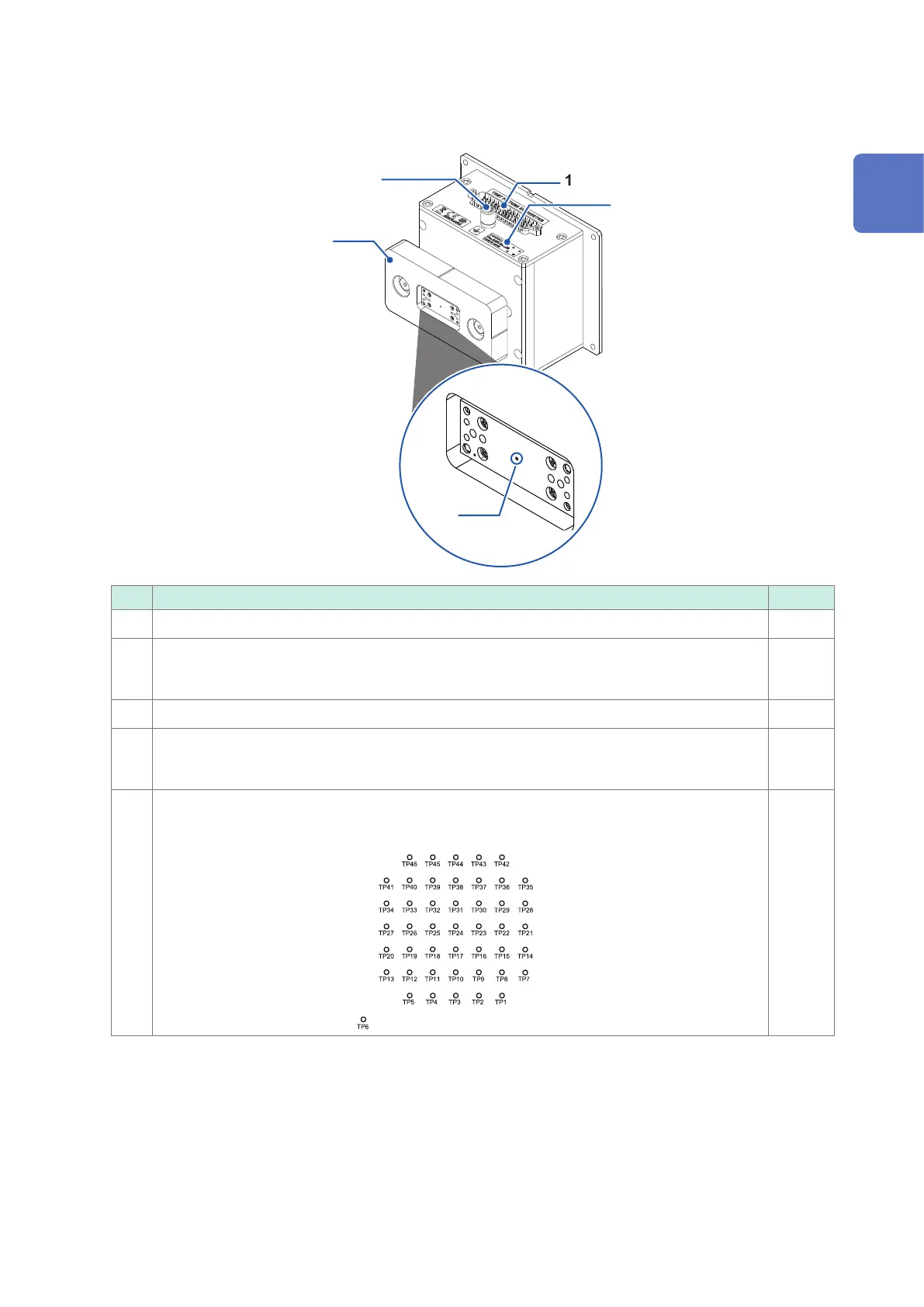

Bottom and rear of the RM9004 Test Fixture
1
(Bottom)
(Rear)
2
3
5
4
No.
Name Description See
1
Connector Connect the RM9005 Connection Cable here.
p. 25
2
Ground terminal Connect the RM9003 Press Unit’s grounding cable here. It is
recommended to connect the cable to the terminal in order to
facilitate stable measurement.
p. 24
3
Probe guard Protects the probes to prevent damage.
–
4
Serial number The 9-digit serial number indicates the year of manufacture (rst
two digits) and the month of manufacture (next two digits). Do not
remove this sticker as the number is important.
–
5
Probes Make contact with, and measure, the measurement target. The
probe layout is shown below.
–
1
Overview
To Next Page
