Output File Formats

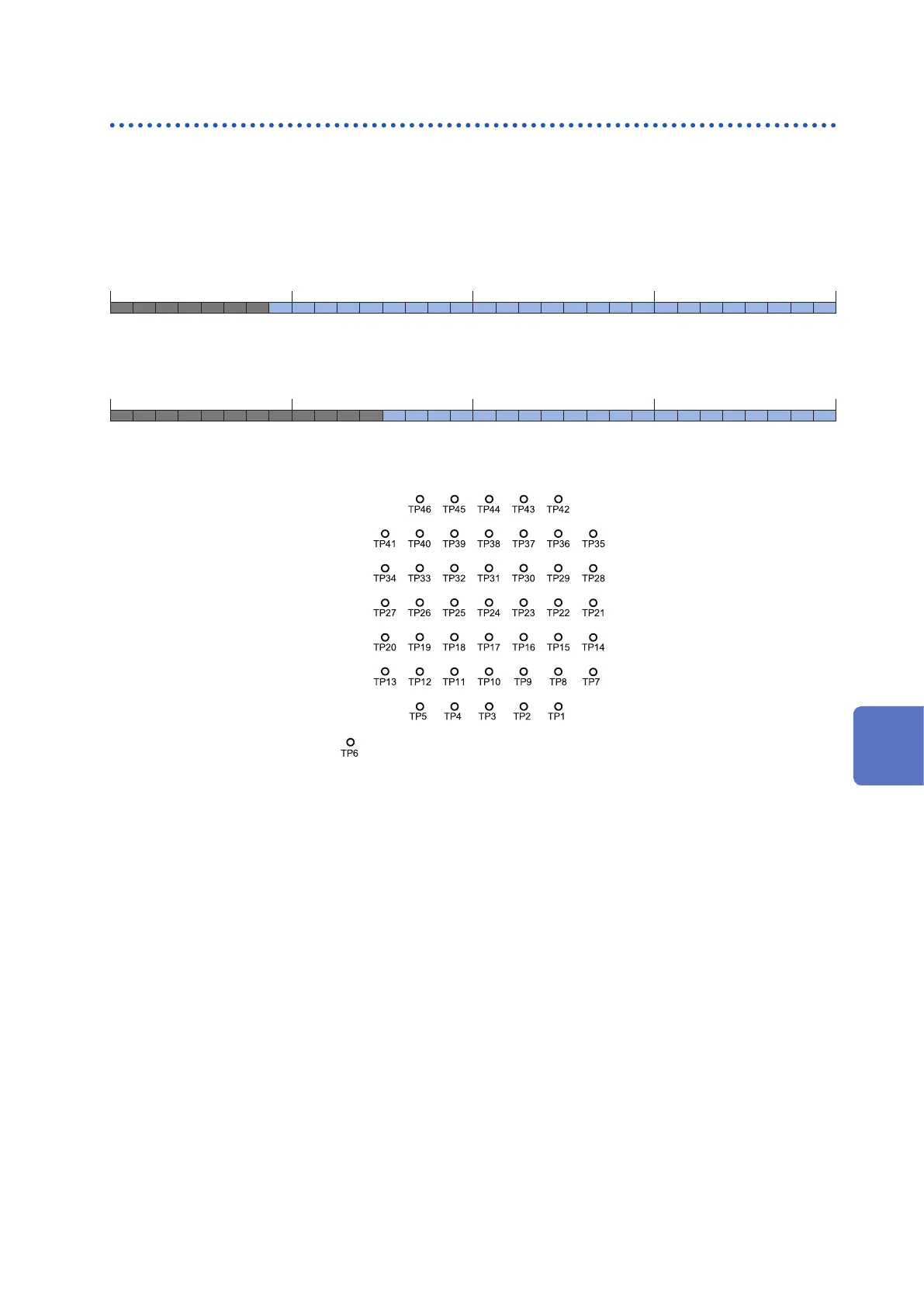

Contact check bit pattern
Analysis results les and 2D potential distribution les output contact check results for potential
followed by current along with measurement results.
Probes that exhibited a contact error are indicated by a bit with the value 1, while normally
functioning probes are indicated by a bit with the value 0.
Voltage probes (Contact check-V): 25 bits of information (output as a 32-bit hexadecimal
value)
31 24 23 16 15 8 7 0
0 0 0 0 0 0 0
Rsv. Rsv. Rsv. Rsv. Rsv. Rsv. Rsv. TP36 TP29 TP22 TP15 TP8 TP37 TP30 TP23 TP16 TP9 TP38 TP31 TP24 TP17 TP10 TP39 TP32 TP25 TP18 TP11 TP40 TP33 TP26 TP19 TP12
Current probes (Contact check-I) : 20 bits of information (output as a 32-bit hexadecimal
value)
31 24 23 16 15 8 7 0
0 0 0 0 0 0 0 0 0 0 0 0
Rsv. Rsv. Rsv. Rsv. Rsv. Rsv. Rsv. Rsv. Rsv. Rsv. Rsv. Rsv. TP35 TP28 TP21 TP14 TP7 TP42 TP43 TP44 TP45 TP46 TP41 TP34 TP27 TP20 TP13 TP1 TP2 TP3 TP4 TP5
(TOP VIEW)
10
9
8
7
6
5
4
3
2
1
