ENGINE
- 166 -

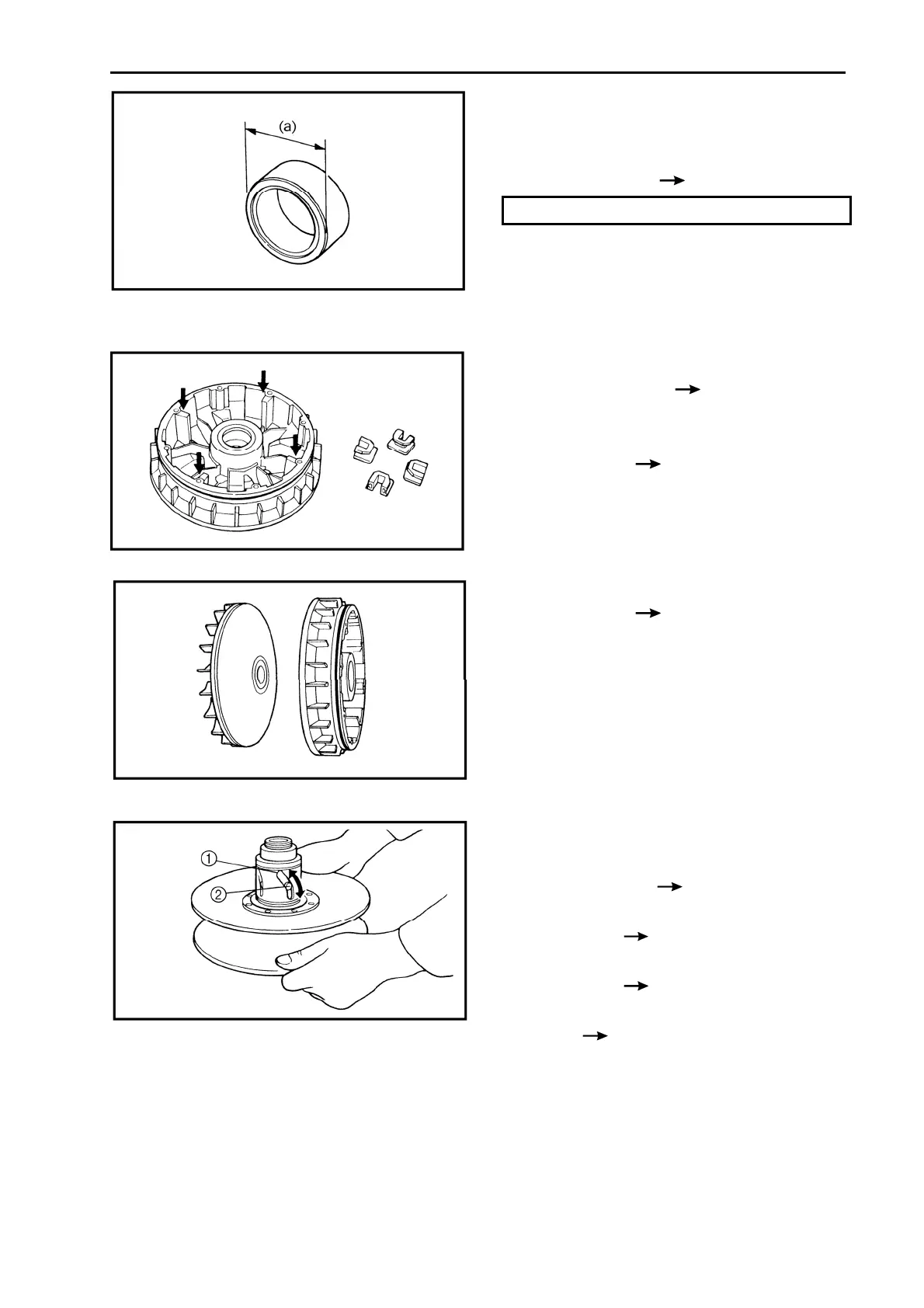

1、Check
1). Checking the primary sheave
• weight outside diameter (a)
Out of specification
Replace the weight.
Weight outside diameter limit: 29.5 mm
• primary pulley slider
• primary sliding sheave splines
Wear/cracks/damage
Replace.
• spacer
• primary pulley cam
Cracks/damage
Replace.
• primary sliding sheave
• primary fixed sheave
Cracks/damage
Replace.
2). Checking the secondary sheave
• secondary fixed sheave smooth operation
• secondary sliding sheave smooth operation
Scratches/damage
Replace as a set.
• torque cam grooves ①
Wear/damage
Replace
• guide pins ②
Wear/damage
Replace.
• secondary sheave spring
Damage
Replace.
To Next Page
