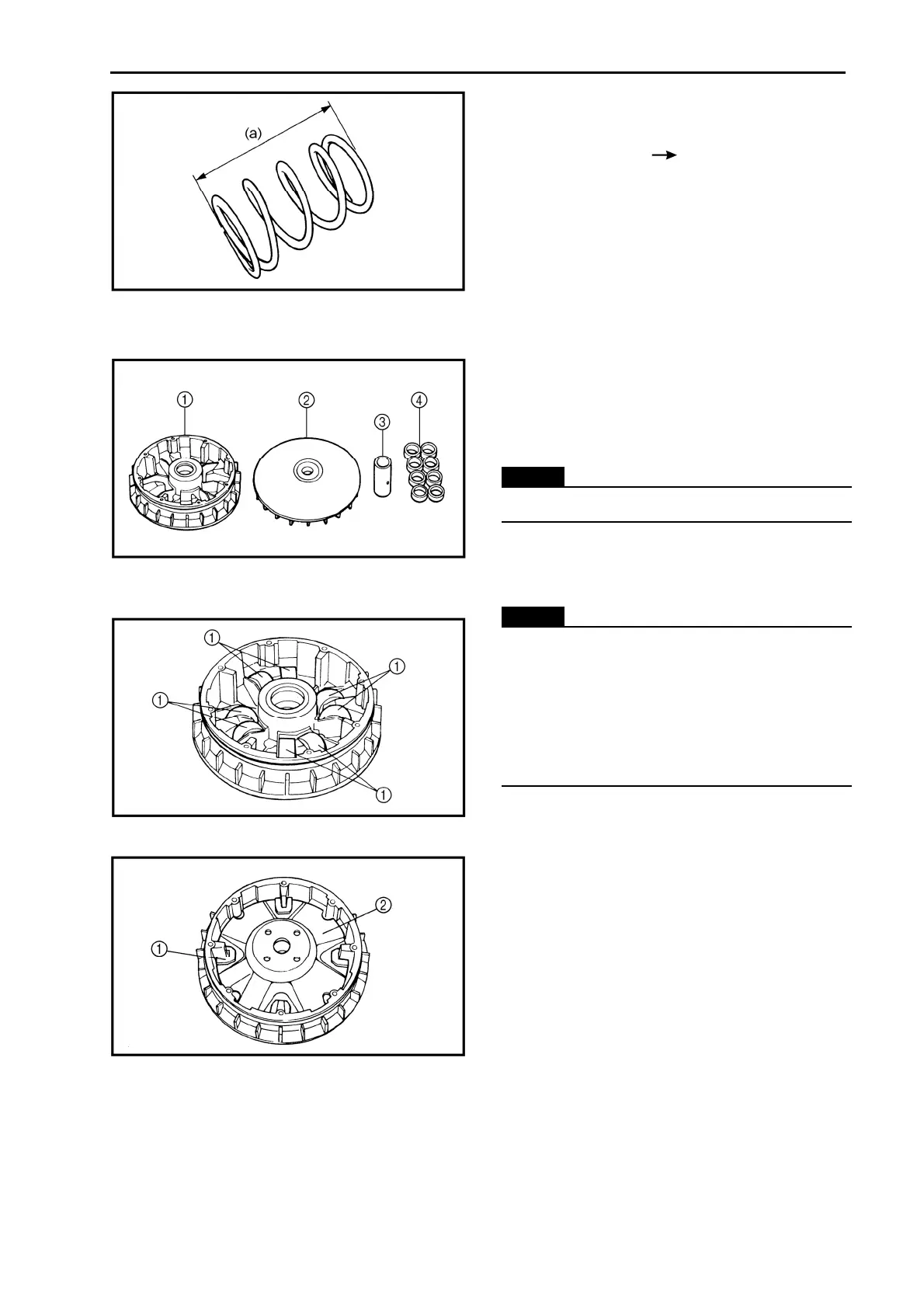

2、Measure
• secondary sheave spring free length (a)
Out of specification
Replace the secondary
sheave spring.
3、INSTALL
1). Assembling the primary sheave
(1)Clean:
• primary sliding sheave face ①
• primary fixed sheave face ②
• collar ③
• weights ④
• primary sliding sheave cam face
1NOTE:
Remove any excess grease.
(2)Install:
• weights ①
1NOTE:
• Apply grease (90g) to the whole outer
surface of the weights and install.
• Apply grease to the inner surface of the
collar.
• Apply grease to the inner surface of the
primary sliding sheave.
• spacer
• sliders ①
• primary pulley cam ②
• primary sliding sheave cap (3 Nm)
