ENGINE
- 172 -
1、CHECK

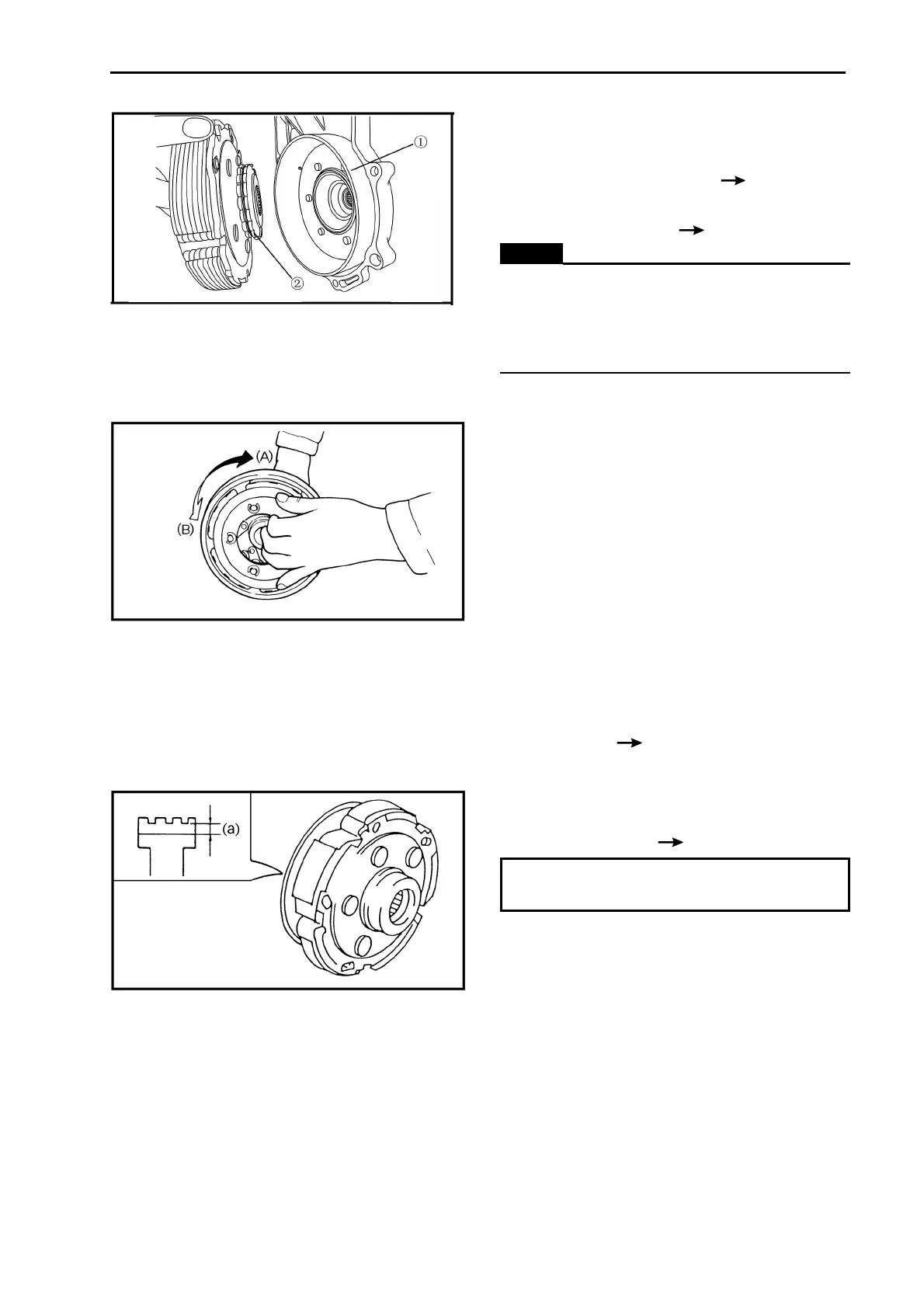

1). Checking the clutch
• clutch housing ①
Heat damage/wear/damage
Replace.
• one-way clutch bearing ②
Chafing/wear/damage
Replace.
1NOTE:
• Replace the one-way clutch assembly and
clutch housing as a set.
• The one-way clutch bearing must be
installed with the flange side facing in.
a. Install the one-way clutch bearing and clutch
carrier assembly to the clutch housing and
hold the clutch carrier assembly.
b. When turning the clutch housing clockwise
(A), the clutch housing should turn freely. If
not, the one-way clutch assembly is faulty.
Replace it.
c. When turning the clutch housing counter-
clockwise (B), the clutch housing and crank-
shaft should be engaged.If not, the one-way
clutch assembly is faulty.
Replace it.
• clutch shoe
Heat damage
Replace.
2、MEASURE
• clutch shoe thickness
Out of specification
Replace.
Clutch shoe wear limit (a)
1.0 mm
