CHASSIS
- 223-
assembly.
• brake caliper body ③
Cracks/damage
Replace.
• brake fluid delivery passage (brake caliper
body)
Blockage
Blow out with compressed air.
WARNING
：
Replace the caliper piston seals and dust
seals whenever the brake caliper is
disassembled.
ASSEMBLING THE FRONT AND REAR
BRAKE CALIPERS
WARNING
：
• All internal brake components should be
cleaned and lubricated with new brake fluid
only before installation.
Must use DOT4 Brake Fluid
• Replace the caliper piston seals and dust seal
whenever a brake caliper is disassembled.

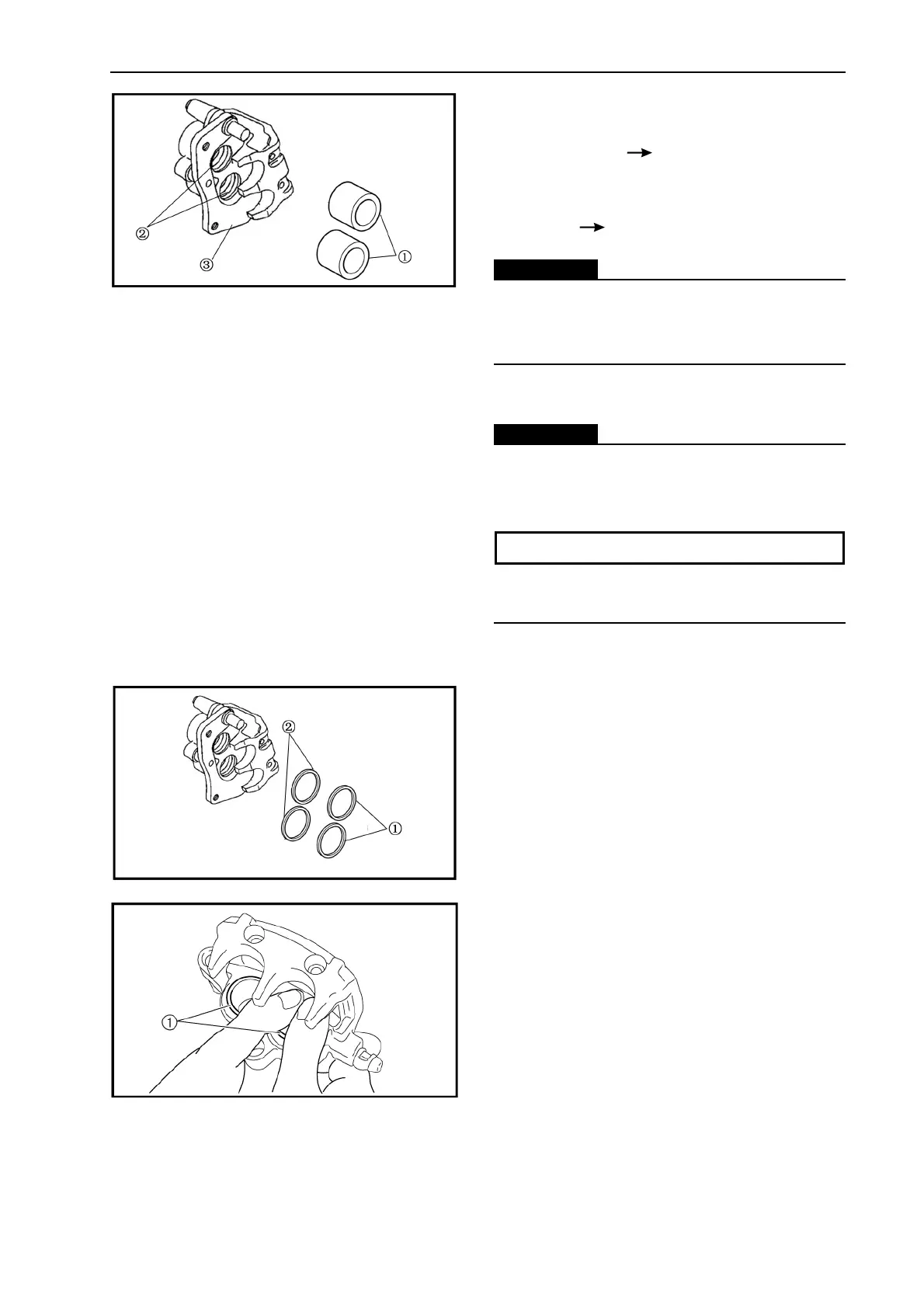

1. Install:
• caliper piston seals ①
• dust seals ②
2. Install:
• brake caliper pistons ①
