CHASSIS
- 243-

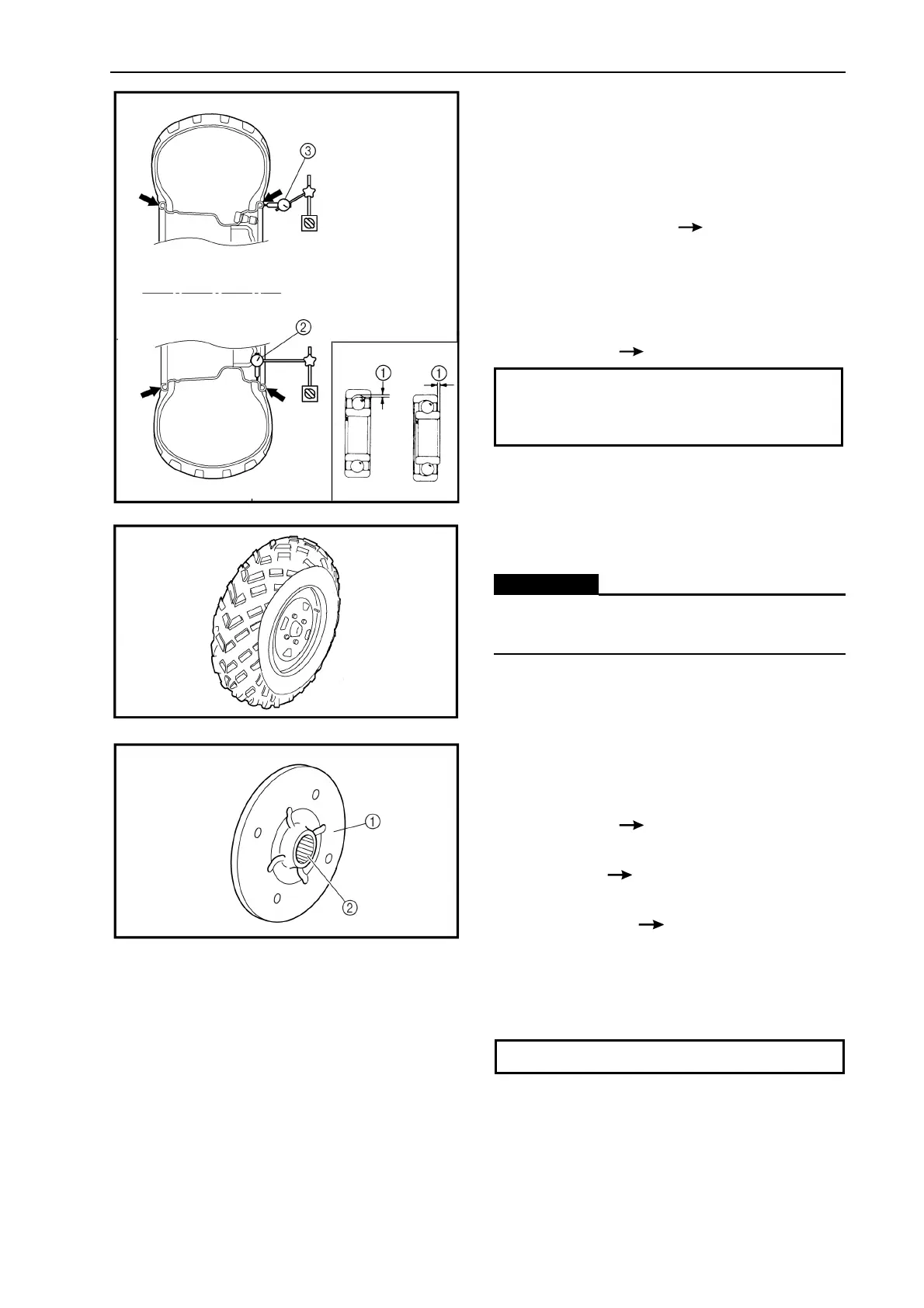

CHECKING THE WHEEL TYRE
1. Check:
• wheel tyre
2. Measure:
• wheel runout
Over the specified limit
Replace the
wheel or check the wheel bearing play .①
3. Check:
• wheel balance
Out of balance
Adjust.
Wheel runout limit
Radial ②: 2.0 mm (0.08 in)
Lateral ③: 2.0 mm (0.08 in)
1WARNING
：
The profile depth falls below 3mm, Please
replace the tyre immediately.
CHECKING THE WHEEL HUB
1. Check:
• wheel hub ①
Cracks/damage
Replace.
• splines (wheel hub) ②
Wear/damage
Replace.
• nuts (wheel hub)
loosen or distorted
Replace or Tighten
INSTALLING THE WHEEL HUB
1. Install:
• axle nut
260 Nm (26.0 m · kg, 190 ft · lb)
To Next Page
