CHASSIS
- 254-
ASSEMBLING THE DIFFERENTIAL GEAR
1. Measure:
• gear lash
2. Install :
• gear motor
a. Installed to the differential gear, to the right
to put it into the 2WD mode.

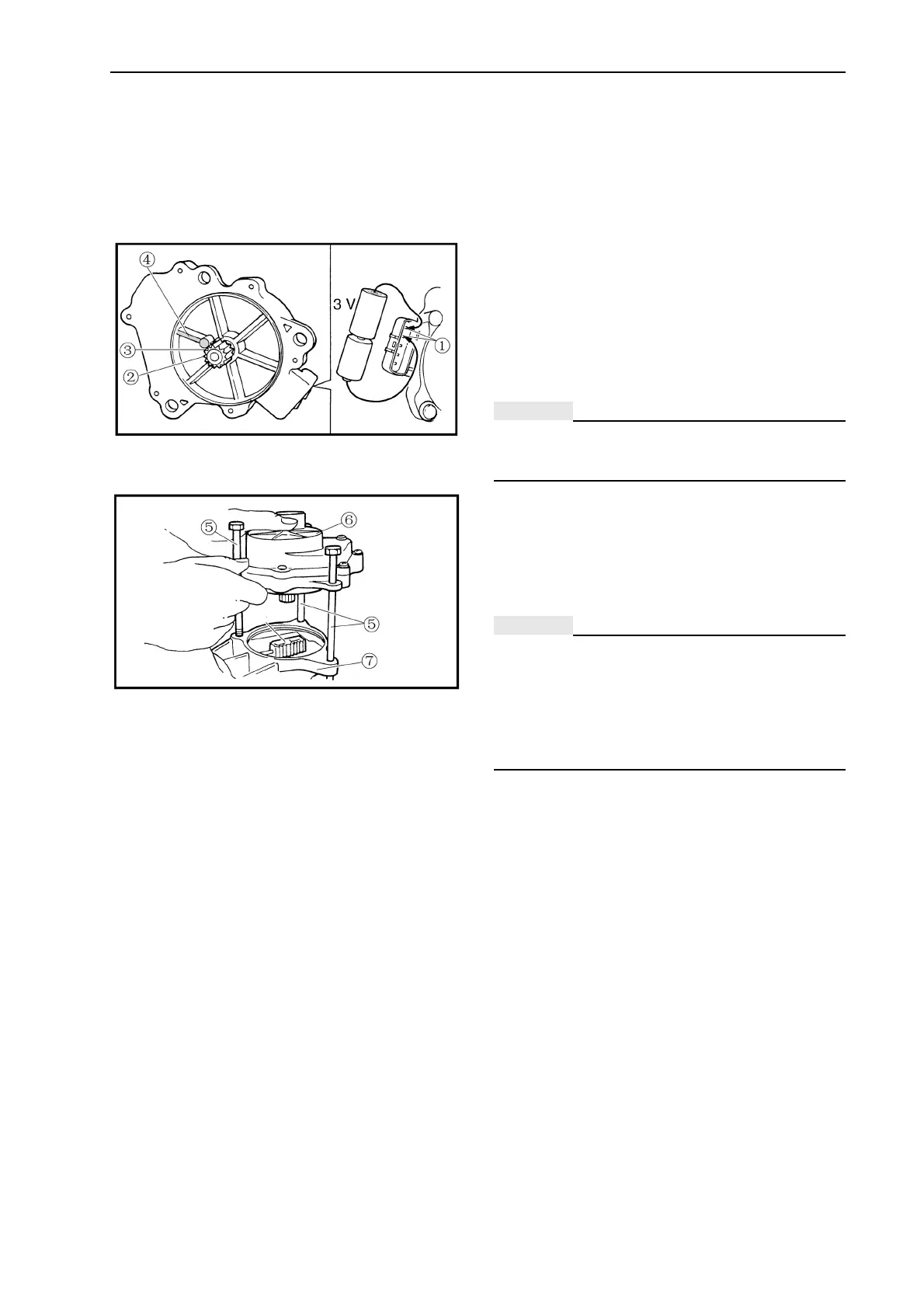

b. Connect two C size batteries to the gear
motor terminal ① to operate the pinion gear
②. Operate the pinion gear until the paint
mark ③ on the gear is aligned with the paint
mark ④ on the gear motor case.
CAUTION:
Do not use a 12 V battery to operate the
pinion gear
.
c. Insert bolts ⑤ into the gear motor ⑥ and use
them as a guide to set the motor on the
differential gear assembly ⑦ so that the shift fork
sliding gear ⑧ does not move.
CAUTION:
If the position of the shift fork sliding gear
is moved, the position of the differential
gear and the indicator light display may
differ,and the 2WD or differential lock mode
may not be activated
.
d. Remove the bolts, and then install the
motor with the gear motor bolts.
