Brevera Breast Biopsy System User Guide
Chapter 3: Components, Controls, and Indicators
MAN-04303-002 Revision 006 Page 29

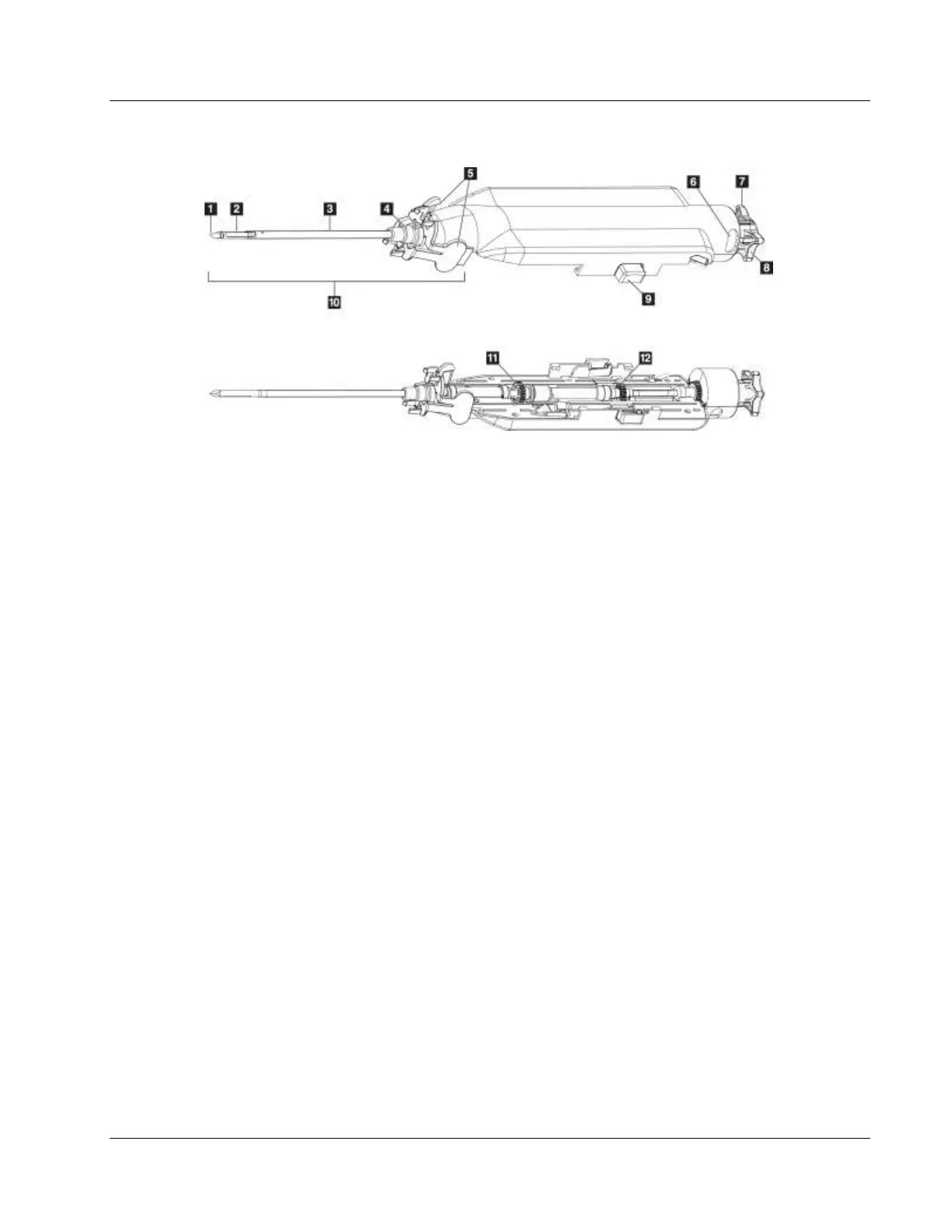

Figure 10: Biopsy Needle Components - Detailed
Figure Legend
1. Trocar tip
2. Outer cannula aperture
3. Outer cannula/introducer
4. Introducer hub
5. "Wing" tabs on introducer hub
6. "Clock" position indicators for outer cannula aperture
orientation
7. Tactile flat area on the thumbwheel that indicates the
outer cannula aperture orientation (flat at 12 o’clock
position)
8. Thumbwheel
9. Button for engaging and disengaging the biopsy needle
and device driver (both sides)
10. Introducer, with lilac-colored hub (shown with
protective sheath removed)
11. Outer cannula gears
12. Inner cannula gears
