Brevera Breast Biopsy System User Guide
Chapter 5: User Interface - Technologist Display
MAN-04303-002 Revision 006 Page 61

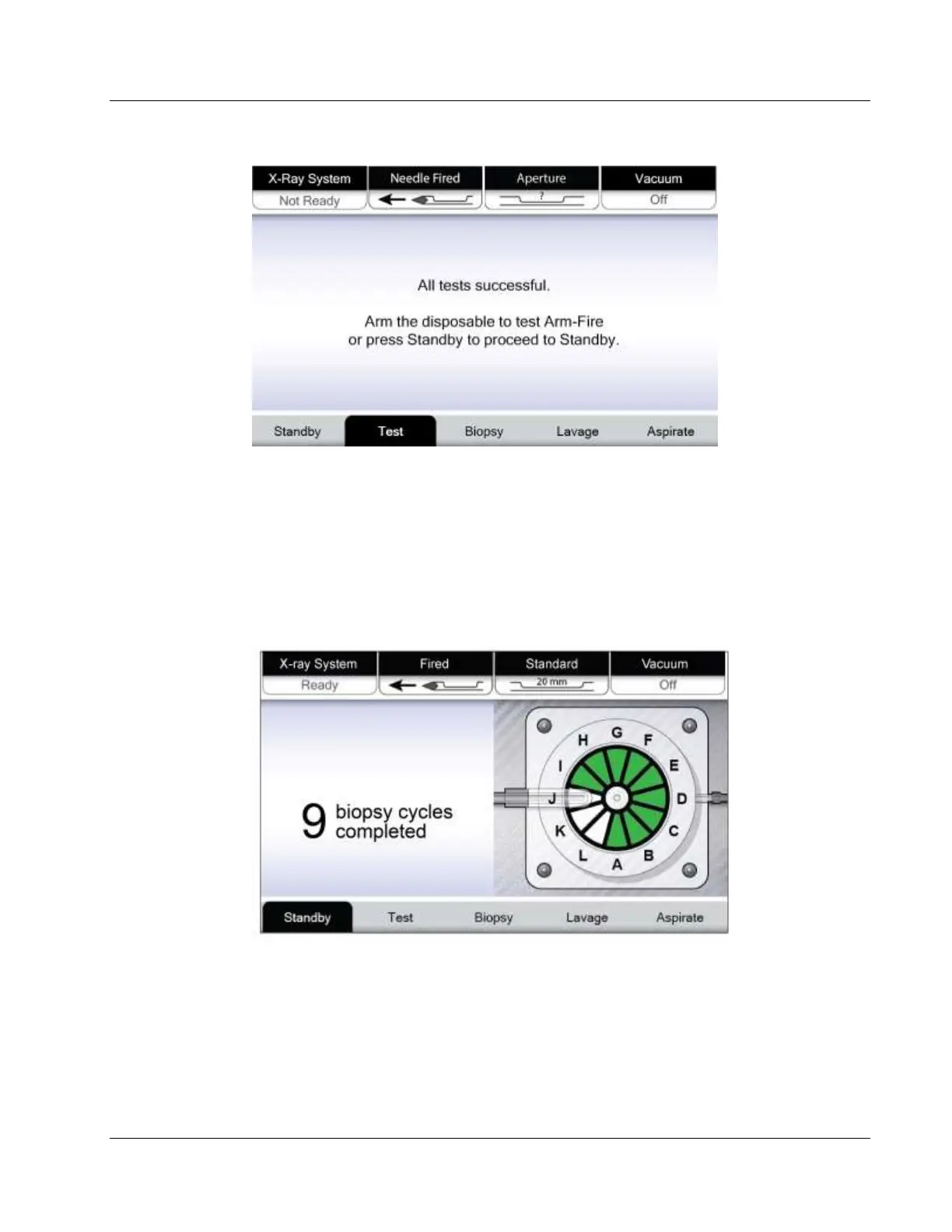

Figure 34: Test Screen - Arm and Fire
Standby
When the system is in Standby mode, the vacuum is off and, if a biopsy device is
connected, the aperture on the needle is closed. The system cannot arm or fire the biopsy
needle when it is in Standby mode. The user must change the console from Standby
mode to Biopsy mode to use the biopsy device and x-ray function.
Figure 35: Standby Screen
