Brevera Breast Biopsy System User Guide
Chapter 3: Components, Controls, and Indicators
Page 30 MAN-04303-002 Revision 006
Tissue Filter Components
The tissue filter is a twelve-chambered container where the biopsy cores are collected for
imaging. During the biopsy process, the tissue samples are aspirated through the biopsy
needle tubing to the in-line tissue filter. A tissue filter cap is provided to cover and seal
the tissue filter for storage in formalin.

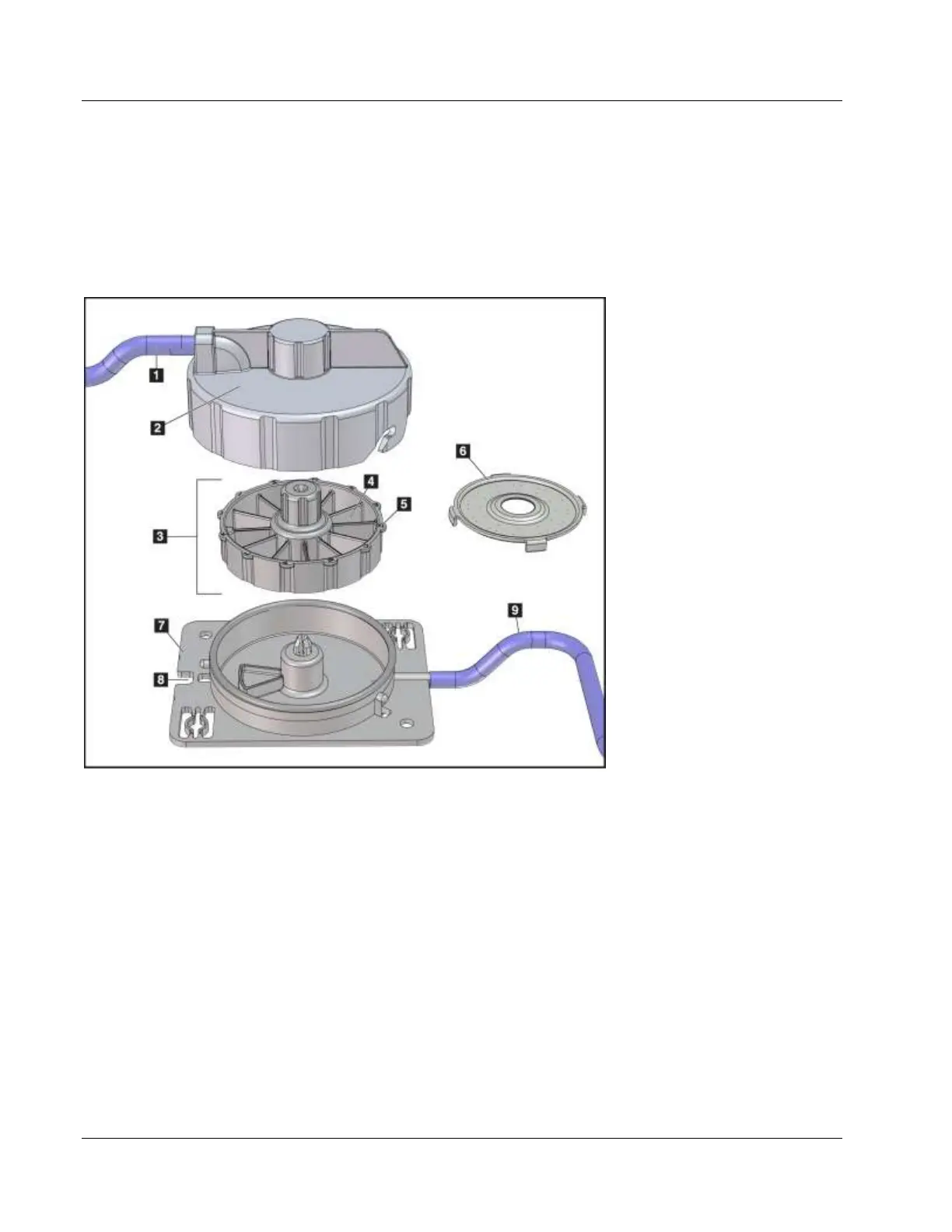

Figure 11: Tissue Filter Components
Figure Legend
1. Tubing inlet from the biopsy
needle
2. Tissue filter housing cover
3. Tissue filter
4. Tissue filter chamber
(12 chambers)
5. Tissue filter chamber
indicator (12 letter
designations)
6. Tissue filter cap
7. Tissue filter base
8. Notch
9. Tubing outlet to the suction
canister (waste)
