Brevera Breast Biopsy System User Guide
Chapter 3: Components, Controls, and Indicators
Page 34 MAN-04303-002 Revision 006
3.2.4 Suction Canister Connections
The system will generate vacuum when the proper modes are selected. The vacuum
connections require a suction canister. The suction canister connects to the suction tubing
from the tissue filter and to the tubing of the vacuum line assembly. The vacuum line
assembly includes a hydrophobic filter and is required to prevent backflow into the
console.

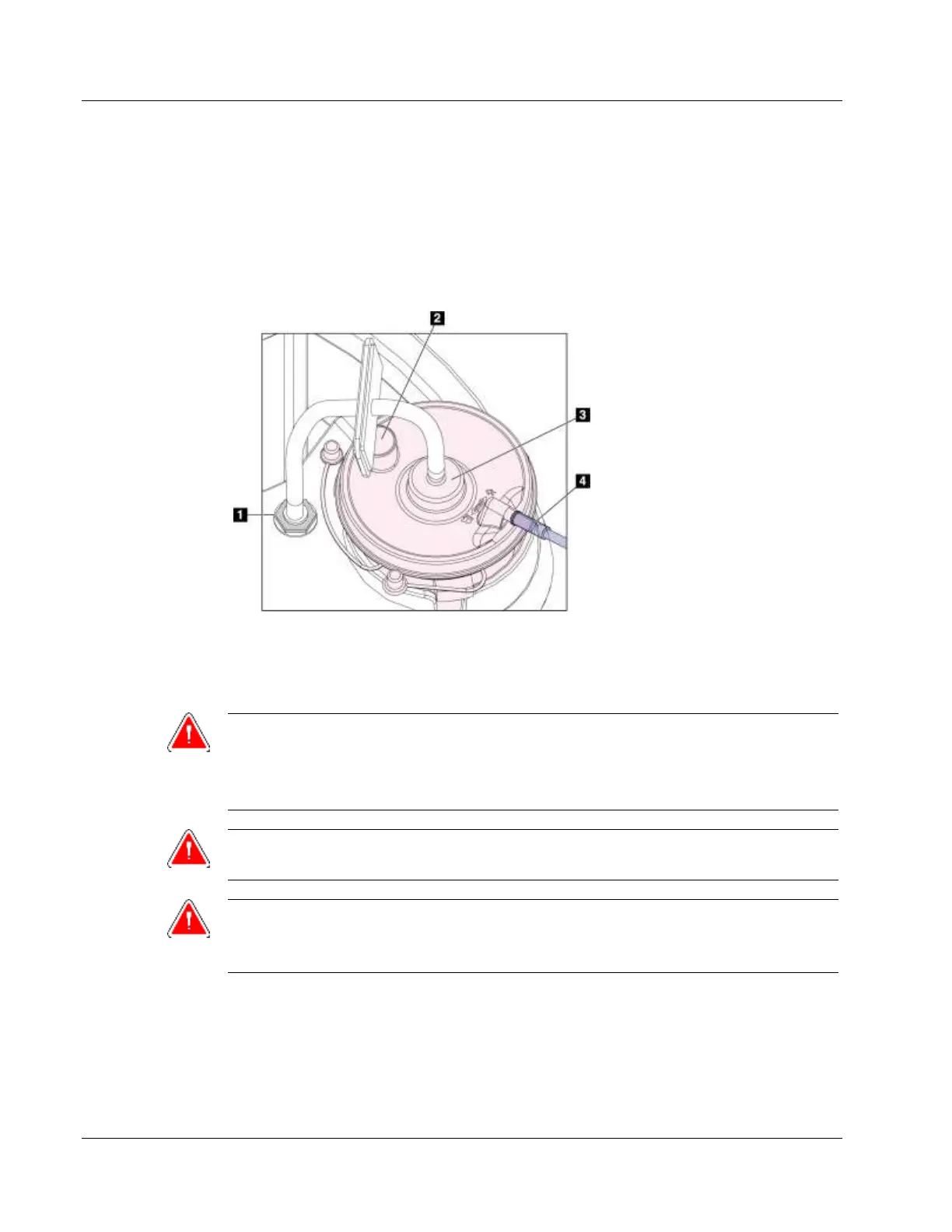

Figure 14: Suction Canister Connections
Figure Legend
1. Connection where the vacuum
line assembly attaches to the
console
2. Large opening sealed with the
large opening cap
3. Connection where the vacuum
line assembly attaches to the
top port on the suction canister
lid labeled "VACUUM"
4. Connection where the clear
suction tubing from the tissue
filter attaches to the horizontal
side port on the suction canister
lid labeled "PATIENT"
3.2.5 Biopsy Needle Connections
Warning:
Before use, inspect the protective packaging and the needle to confirm that
neither has been damaged during shipment. If the packaging or the needle
appear to be compromised, do not use the needle.
Warning:
Do not connect the biopsy needle until the system is powered on.
Warning:
To maintain sterility, leave the protective sheath on the tip of the biopsy
needle.
