Brevera Breast Biopsy System User Guide
Chapter 3: Components, Controls, and Indicators
Page 36 MAN-04303-002 Revision 006
Tissue Filter Connections
The biopsy core travels through the suction tubing to the tissue filter in the tissue filter
drawer when the proper modes are selected.
Note
Each Brevera disposable biopsy needle package includes a tissue filter cap. Save the
tissue filter cap until the biopsy acquisition is complete. The tissue filter cap covers the
tissue filter when the biopsy cores are placed in formalin.

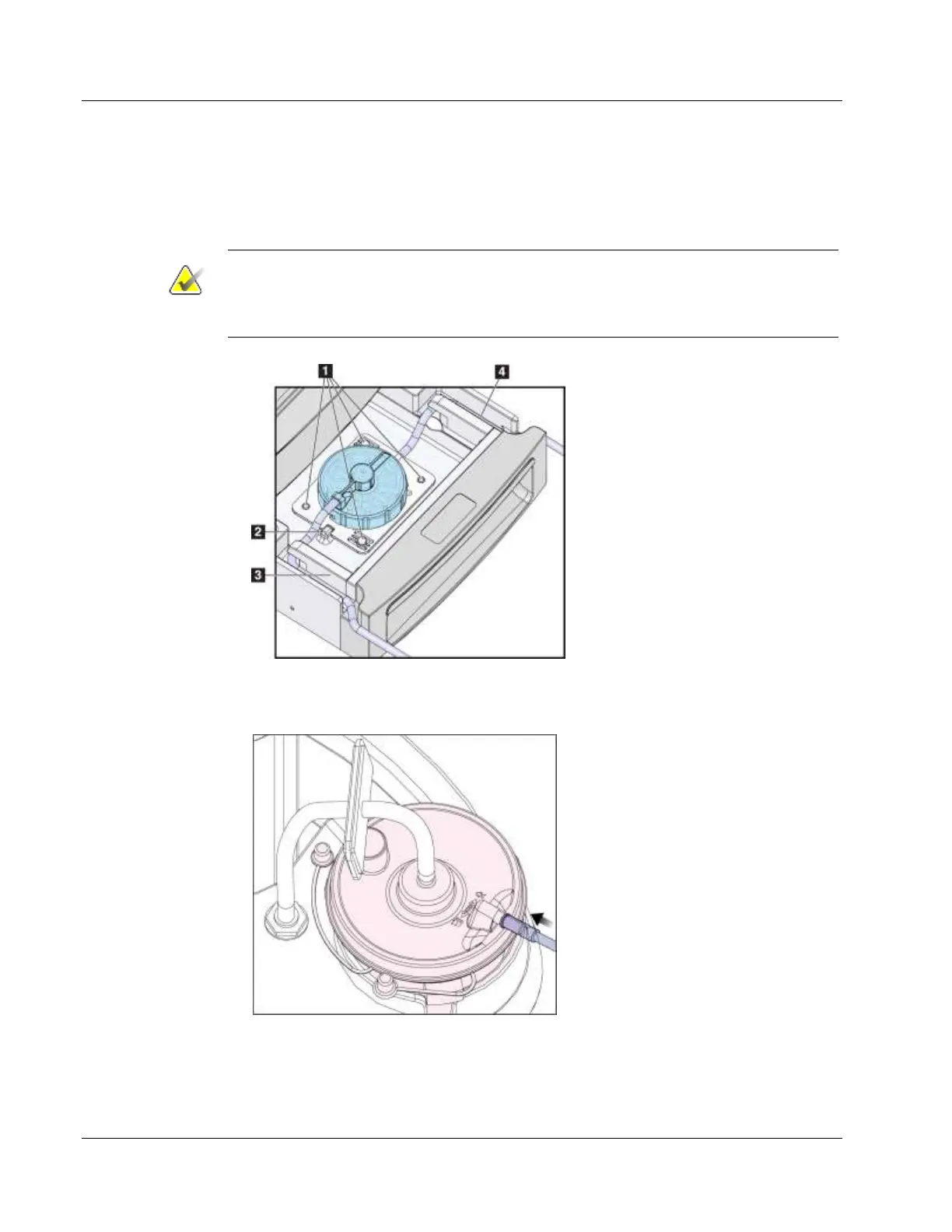

Figure 16: Tissue Filter Connections in the Tissue Filter
Drawer
Figure Legend
1. Locator pin holes align with
locator pins
2. Tissue filter base notch aligns
with the alignment tab
3. Guide for the gray tubing from
the biopsy needle
4. Guide for the suction tubing
(clear tubing with a blue
connector end) to the suction
canister
Figure 17: Tissue Filter Tubing Connection to the
Suction Canister
