HP A7533A - Brocade 4Gb SAN Switch Base - Control Processor Blade (CP8)

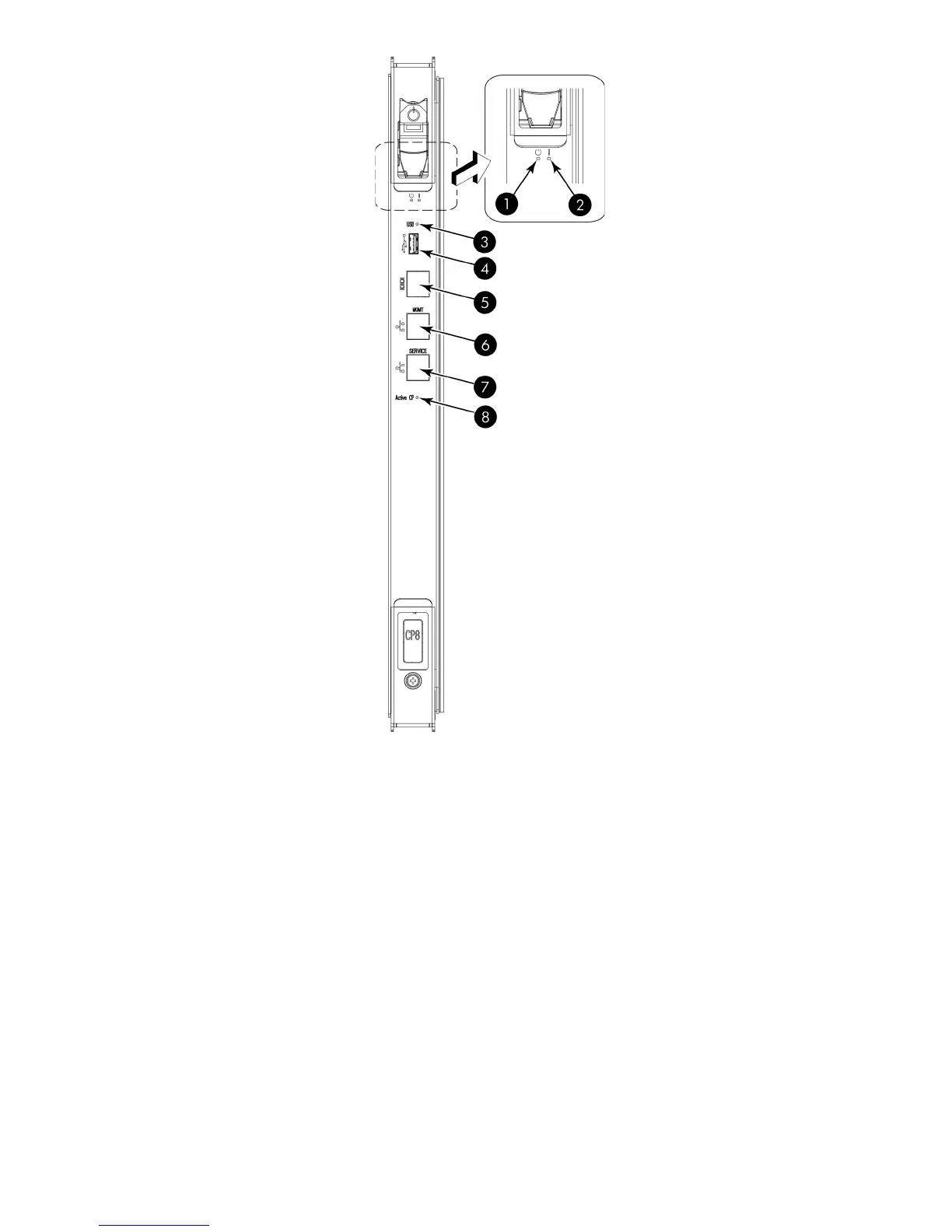

Figure 58 Control Processor blade (CP8)
2. Power LED1. Status LED
4. USB port3. USB LED
6. Ethernet port (MGMT)5. Console port (10101)
8. Active CP LED7. Ethernet port (SERVICE)
Table 31 describes the CP blade LED patterns and the recommended actions for those patterns.
HP StorageWorks DC and DC04 SAN Backbone Director Switches 161
