26423a

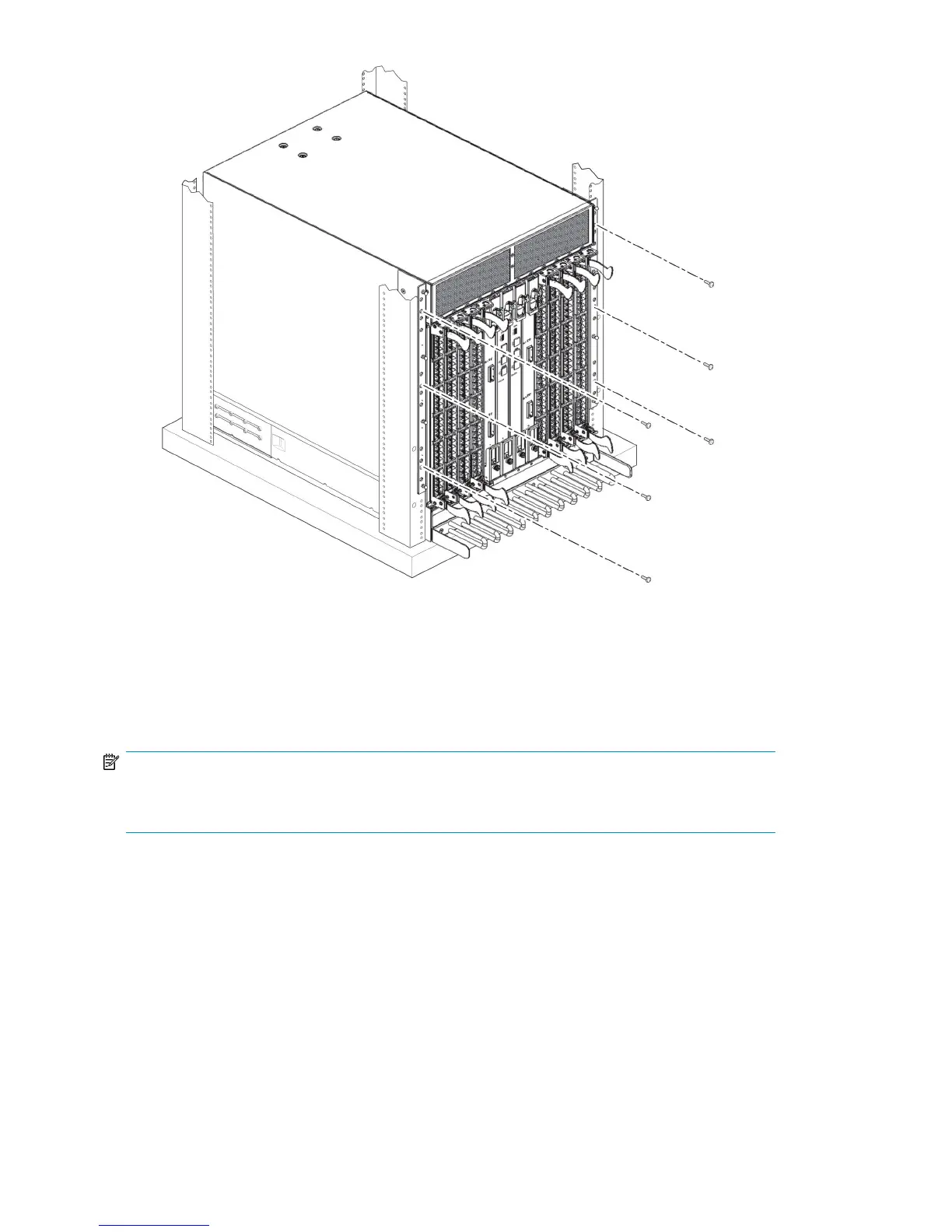

Figure 7 Attaching port side of chassis to rack rails
Replacing the chassis door
To reinstall the chassis door:
NOTE:
The door is not hinged. It installs on the chassis by snapping the four ball studs located on the chassis
into the receiving hardware on the door.
1. Align the eight ball studs on the chassis with mounting hardware locations on the chassis door
while pushing the door straight into the chassis.
2. Snap the door into place over the ball studs (see Figure 8 and Figure 9).
DC SAN Director Installation40
