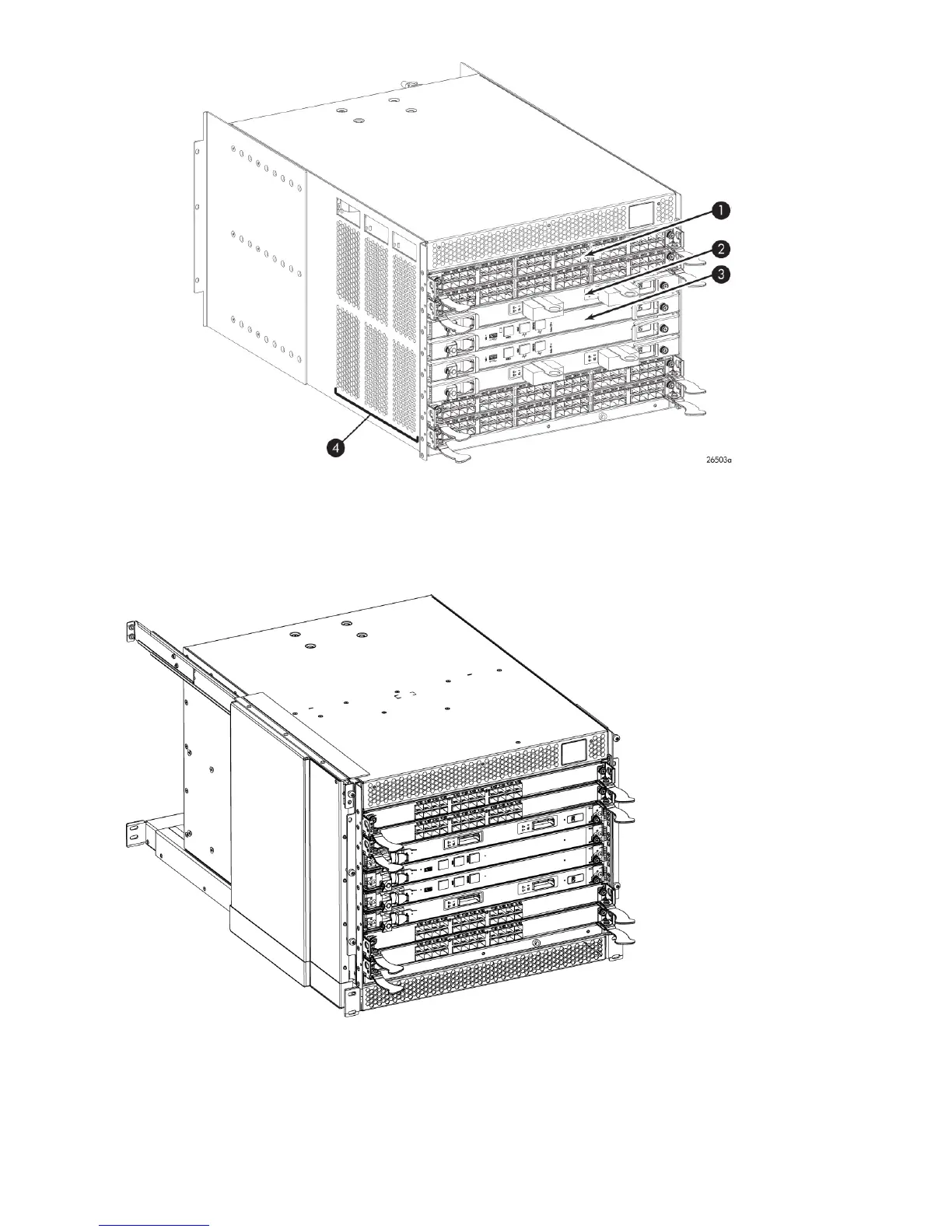

Figure 36 Port side of the DC04 SAN Director (sample configuration)
2. Core switch blade (CR4S-8)1. FC8-48 port blade
4. Exhaust Vent3. Control Processor blade (CP8)
Figure 37 Port side of the DC04 SAN Director with the port side exhaust kit installed
HP StorageWorks DC04 SAN Backbone Director Switch Overview116
