2. Unscrew and save the three screws holding the finger assembly to the rack upright (see Figure
64). Support the assembly to prevent it from falling.
3. Remove the cable management finger assembly.
4. If necessary, repeat step 1 through step 3 for the other finger assembly.
Installing a cable management finger assembly
To install a cable management finger assembly (see Figure 64):
1. Position and tighten the three screws to secure the vertical cable management finger assembly
to the rack upright.
2. Arrange the cables along the cable management finger assembly.
3. If necessary, repeat step 1 and step 2 for the other cable management assembly.

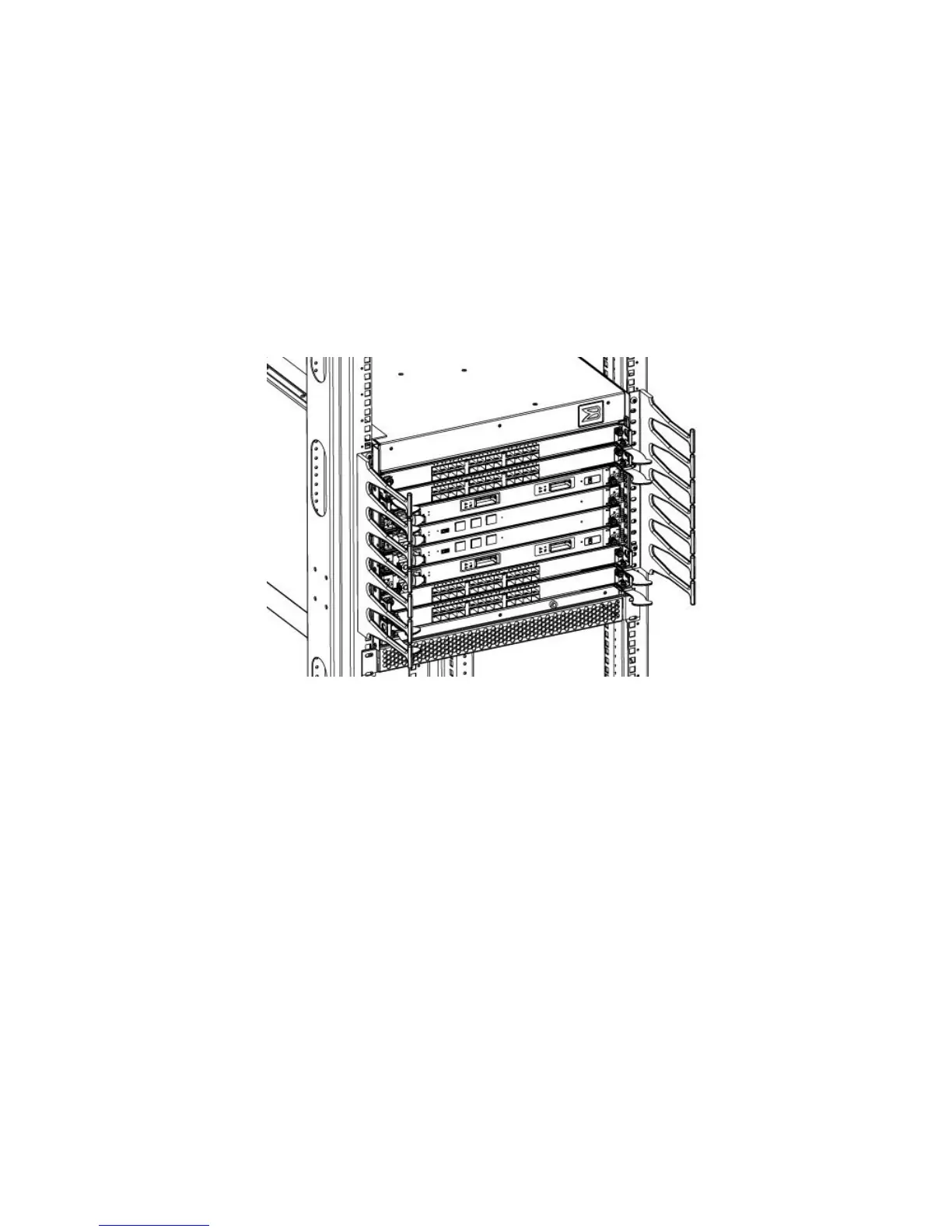

Figure 64 Removing or replacing the cable management finger assembly
Replacing DC04 SAN Director port and application blades
This section describes how to remove and replace a DC04 SAN Director port or application blade.
The replacement procedure for each blade takes less than ten minutes. The following items are required:
• Electrostatic Discharge (ESD) grounding strap
• Workstation computer
• Replacement DC04 SAN Director blade or filler panel
• Phillips screwdriver
• Small form-factor pluggable (SFP) or extended form-factor pluggable (XFP, FC10-6 Director blade
only) transceivers (as needed)
• Optical cables (as needed)
HP StorageWorks DC and DC04 SAN Backbone Director Switches 171
