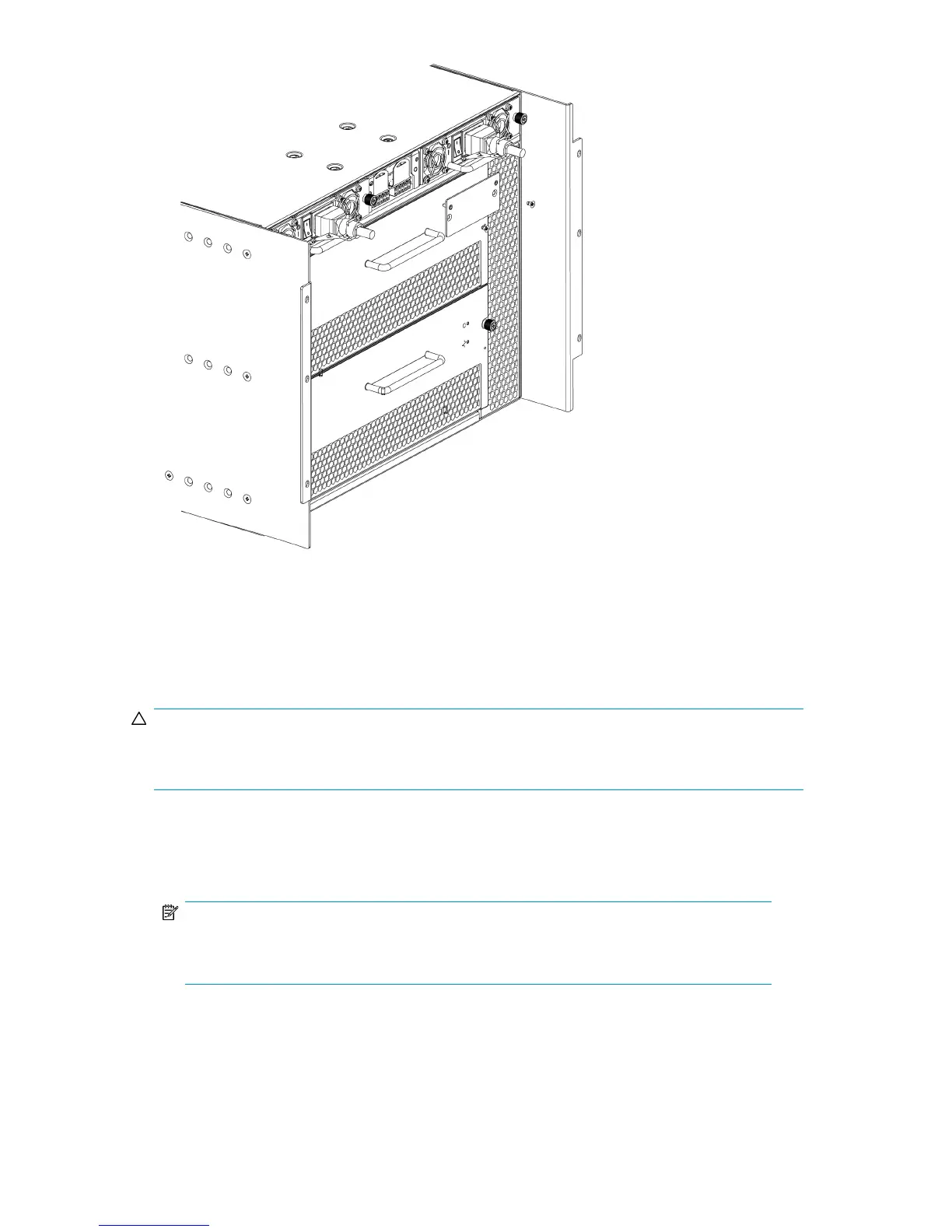

Figure 72 WWN bezel (logo plate) and WWN card
Installing the WWN bezel (logo plate) and WWN card
To install the WWN bezel and WWN card:
CAUTION:
Wear a grounded ESD strap when handling the WWN card. Use the grounding connections above
the power connectors on the chassis.
1. Unpack the new WWN card and save the packaging for the faulty WWN card.
2. Hold the card by the pull tab and insert the WWN cable onto the WWN module until it is fully
seated. Use the Phillips screwdriver and the two screws to attach the WWN card to the chassis.
NOTE:
If a serial console session is active, several removal detected and insertion
detected messages display on the console because of the replacement.
HP StorageWorks DC and DC04 SAN Backbone Director Switches 191
