5. Fasten the port side of the chassis to the cabinet rails. Use three 10-32 x 5/8 inch (1.58 cm)
screws (Item C) per rail. Tighten the screws to a torque of 32 in.-lbs (37 cm-kgs).
NOTE:
Do not use the top or bottom holes of the DC SAN Director mounting bracket because the
door will interfere with the screw heads.
26422a
1
2

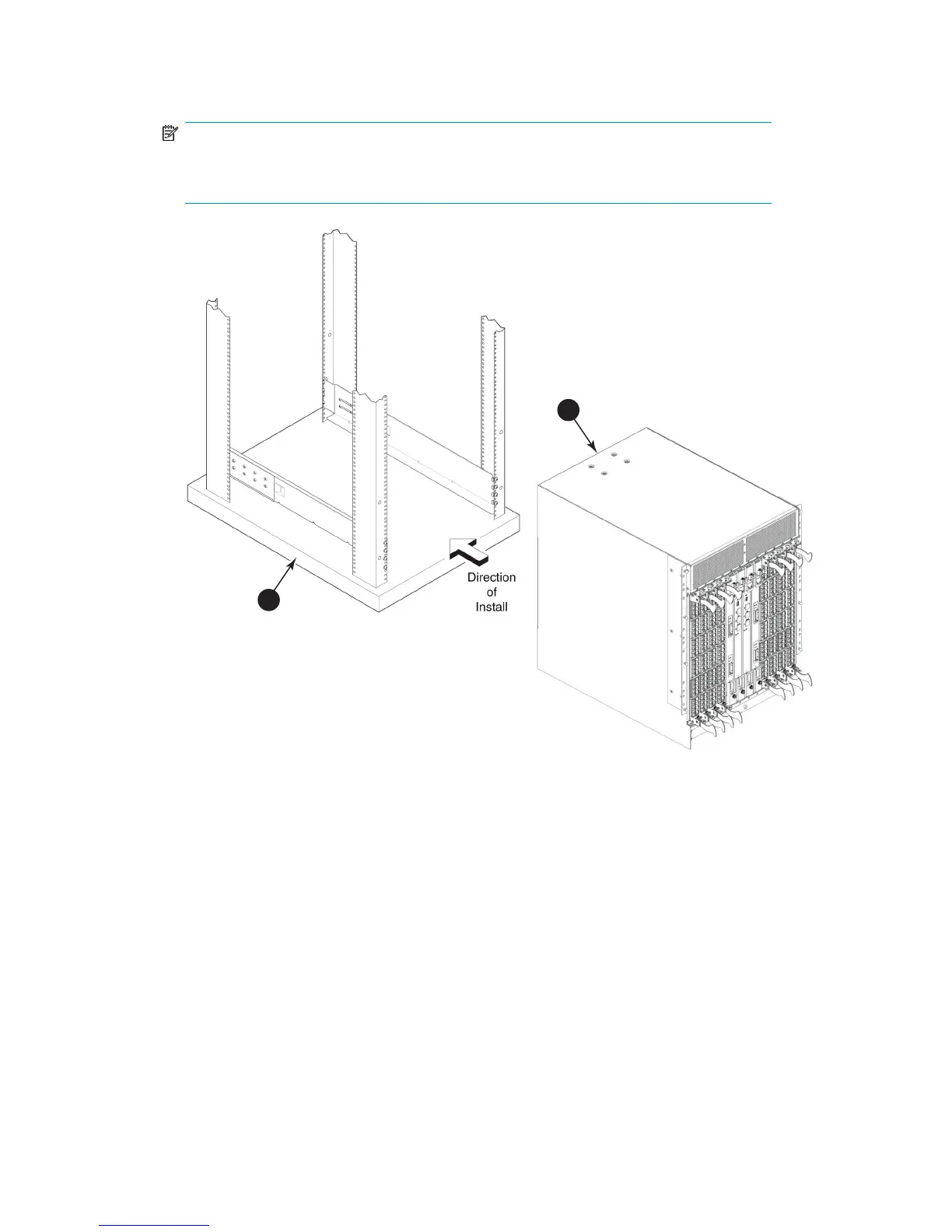

Figure 6 Positioning the DC SAN Director for installation in a cabinet
2. Air-instake side of chassis1. Rack cabinet (shown without sheet metal)
HP StorageWorks DC and DC04 SAN Backbone Director Switches 39
