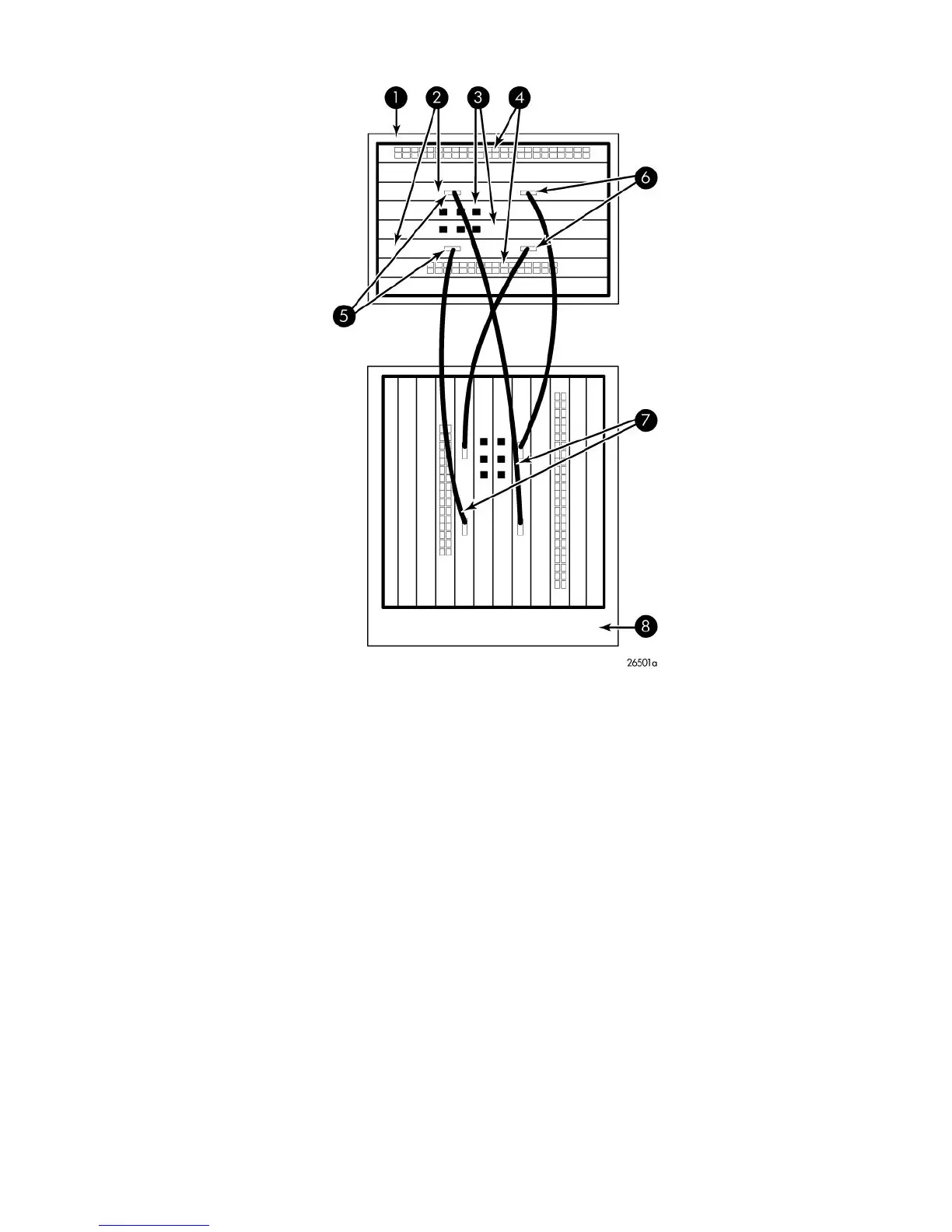

Figure 51 DC04 SAN Director to DC SAN Director ICL cabling
5. ICL connector (ICL1)1. DC04 SAN Director chassis
6. ICL connector (ICL 0)2. Core Switch blades (CR4S-8)
7. ICL cables3. Control Processor blades (CP8)
8. DC SAN Director chassis4. Port blades
HP StorageWorks DC and DC04 SAN Backbone Director Switches 143
