2. Install the mounting nuts in the cabinet rail locations shown in Figure 40. These nuts secure the
10-32 screws that mount the port-side exhaust kit shelf and DC04 SAN Director to the cabinet.
• For rails with round holes—Install the clip nuts (F in Figure 39).
• For rails with square holes—Install the retainer nuts (G in Figure 39).
The location shown Figure 40 is an example. The shelf and DC04 SAN Director can be installed
anywhere in the cabinet that has 9U of space higher available.

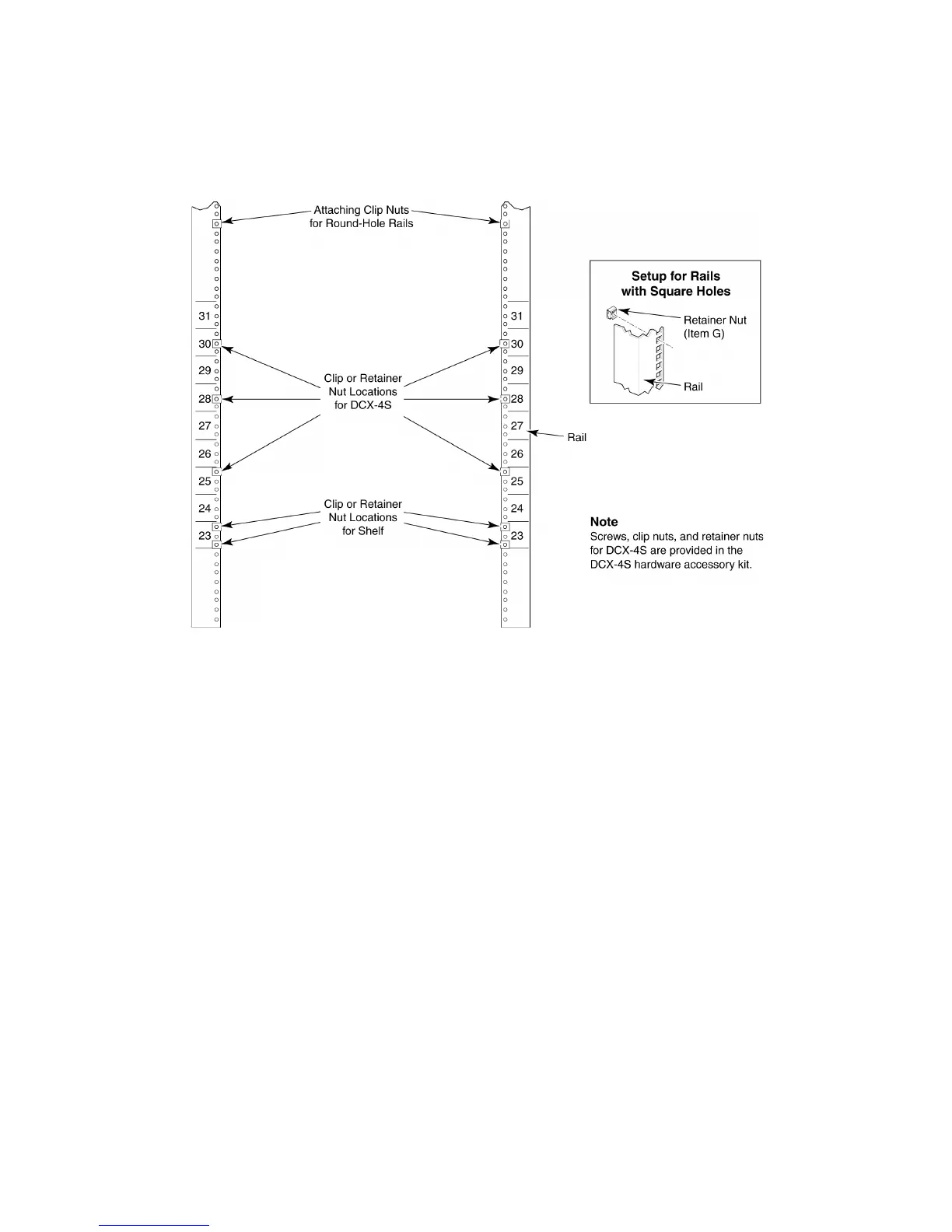

Figure 40 Clip and retainer nut locations on cabinet rails
DC04 SAN Director Installation132
