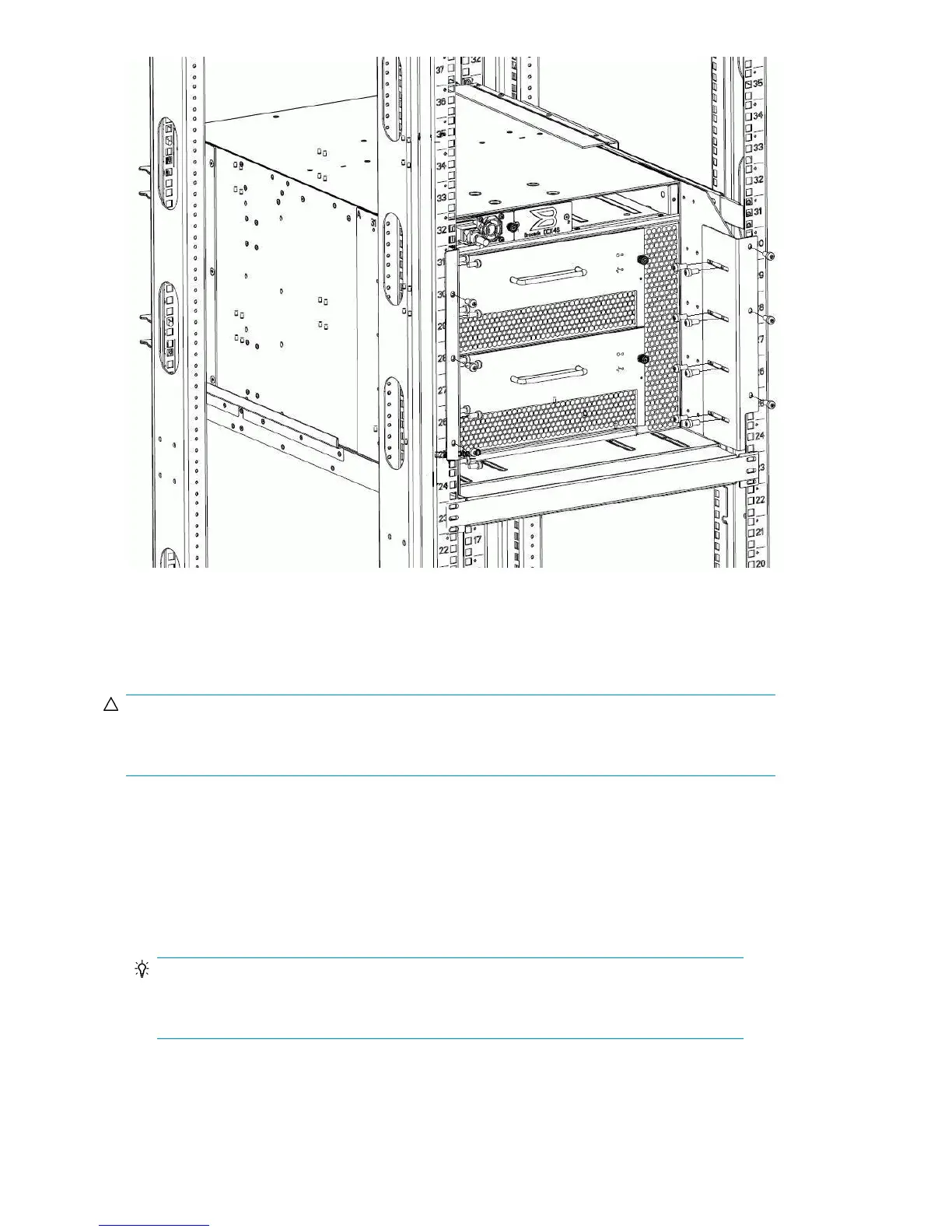

Figure 47 Installing the DC04 SAN Director with shipping brackets
Powering on the DC04 SAN Director
CAUTION:
Use the power cords supplied. Ensure that the facility power receptacle is the correct type, supplies
the required voltage, and is properly grounded.
To power on the DC04 SAN Director:
1. Connect the AC power cords to the power supply assemblies. One to four power cords are
required, depending on electrical service.
2. Connect the power cords to a power source with voltage of 200 to 240 VAC, 47 to 63 Hz
(normally two power cords) or to a power source with voltage of 110 to 120 VAC, 47 to 63 Hz
(two to four power cords).
TIP:
Use of the high-voltage line (200 to 240 VAC) is highly recommended due to better
power-conversion efficiency
DC04 SAN Director Installation138
