2. Slide the filler panel into the slot until it is firmly seated.
3. Tighten the thumb screw at the bottom of the panel.
4. Replace the chassis door (see “Installing the chassis door” on page 170).

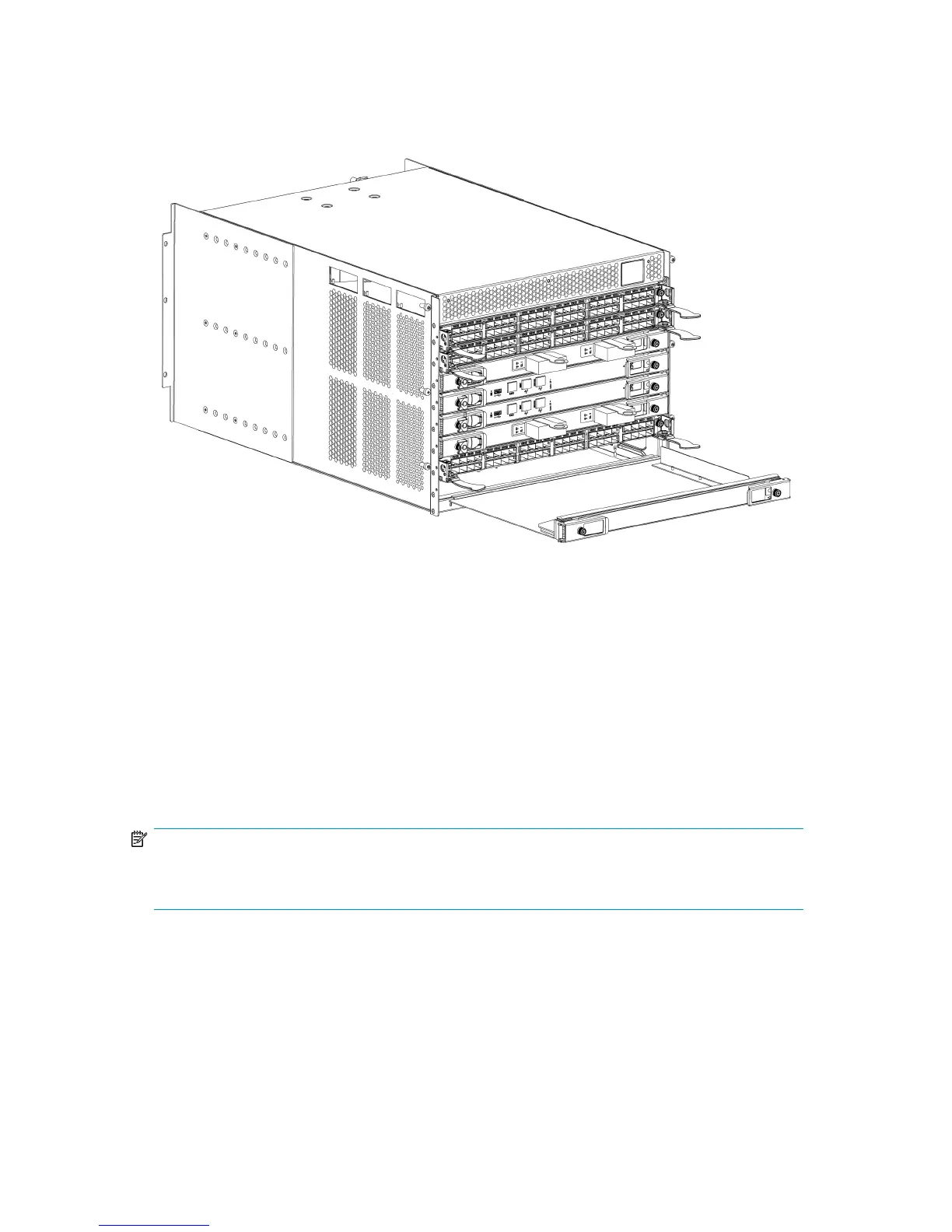

Figure 66 DC04 SAN Director blade filler panel
Replacing a control processor blade (CP8)
This section describes how to remove and replace a control processor (CP8) blade. Each DC04 SAN
Director has two CP8 blades, which are located in slot 4 and slot 5.
NOTE:
If the new CP blade does not have the same firmware as the active CP blade, you must upgrade the
new blade to the active CP blade's firmware version.
The replacement procedure for the CP blade takes approximately 30 minutes. The following items
are required for the CP blade replacement:
• ESD grounding strap
• Workstation computer
• Serial cable
• IP address of an FTP server for backing up the DC04 SAN Director configuration
• Phillips #2 screwdriver
HP StorageWorks DC and DC04 SAN Backbone Director Switches 175
