• Improved cable management using a re-designed cable management comb and chassis door
• Constant intake andField-replaceable Unit (FRU) temperature monitoring
• Redundant AC primary power connections to ensure high availability. Each power supply has its
own connector, so the number of primary power connections varies from two to four
Port side of the DC SAN Director
NOTE:
Airflow in the DC SAN Director is from the non-port (non-cable) side to the port (cable) side and out
the exhaust vent.
Figure 1 shows a sample configuration of the port side of the DC SAN Director.
25369a
1
2
3
4
5

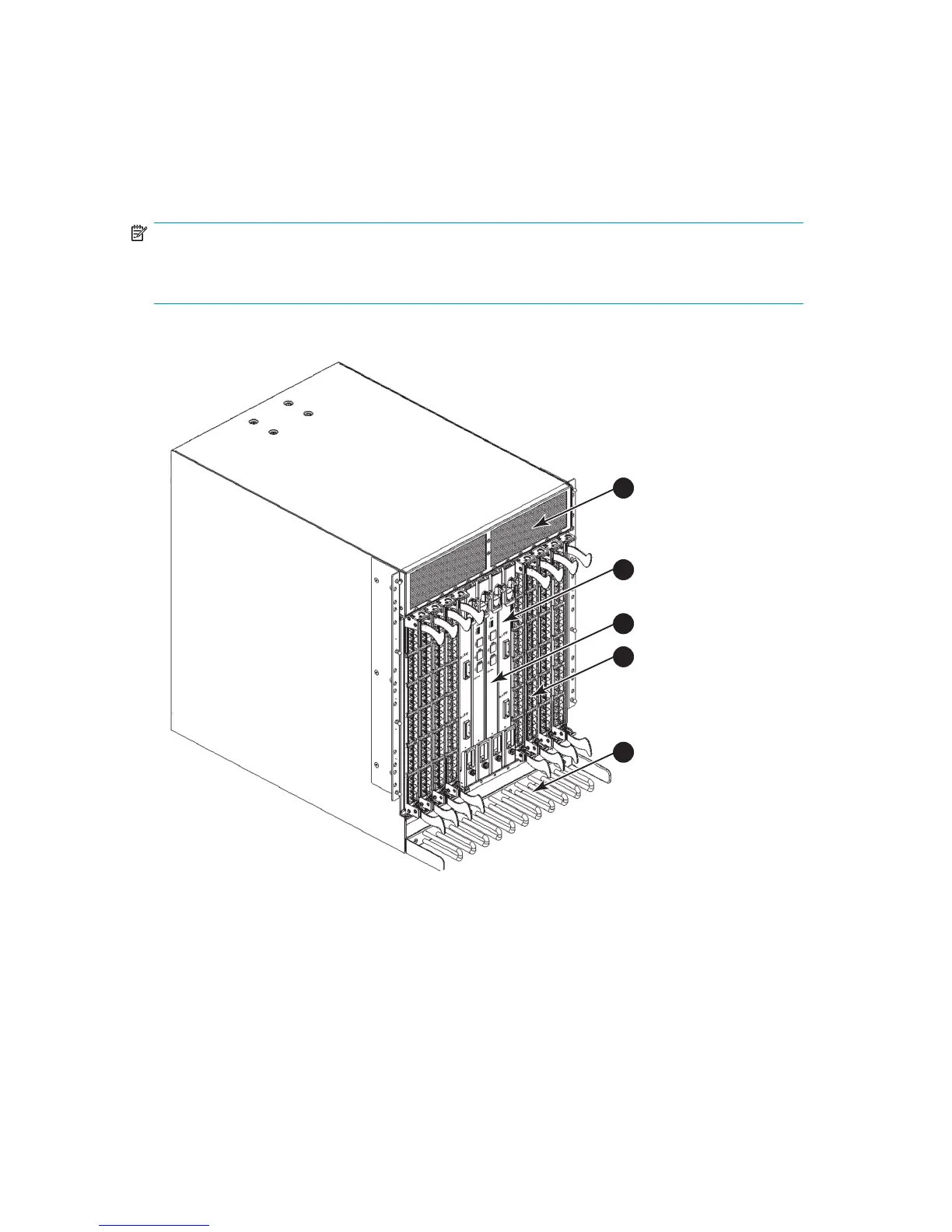

Figure 1 Port side of the DC SAN Director (sample configuration)
2. Core switch blade (CR8)1. Exhaust Vent
4. FC8-48 Director blade3. CP blade (CP8
5. Cable management comb
