Installing the chassis door
To install the chassis door (see Figure 26 on page 74):
1. Align the holes in the door with the pins in the chassis
2. Push the door into place.
26387a

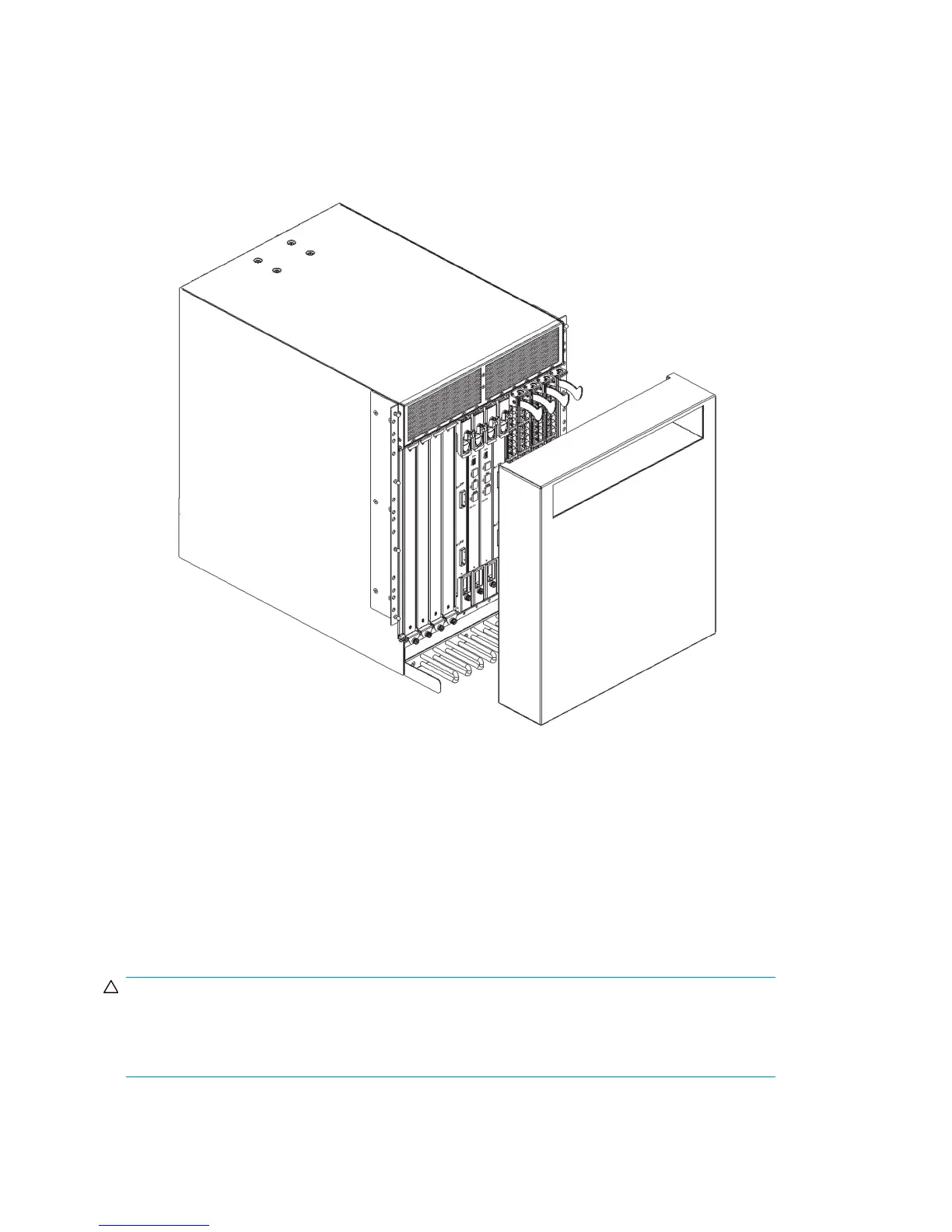

Figure 26 Removing or replacing a chassis door
Replacing the cable management comb
The replacement procedure for the cable management comb takes less than five minutes. You will
need a #1 Phillips screwdriver.
Removing a cable management comb
CAUTION:
Wear a grounded ESD strap when handling DC SAN Director components. The Director chassis
provides a grounding connection above the power connectors. Also, store ESD-sensitive components
in antistatic packaging.
Replacing DC SAN Director field-replaceable units (FRUs)74
