26424a

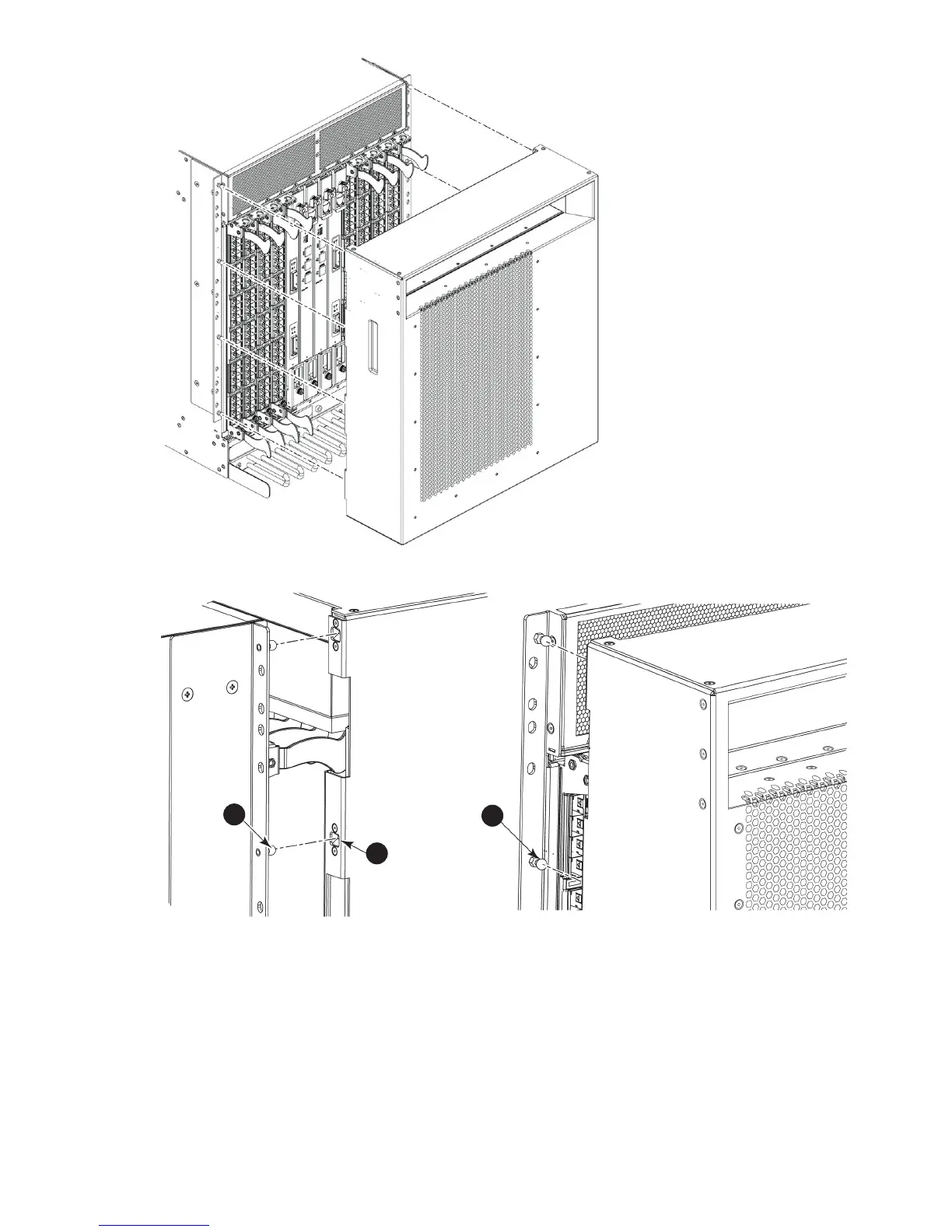

Figure 8 Aligning the DC SAN Director door with the chassis
26425a
1
2
3
Inside view
of door
Outside view
of door
Figure 9 Inserting DC SAN Director door on chassis ball studs
2. Mounting hardware1. Ball stud on chassis (outside view of door)
3. Ball stud on chassis (inside view of door)
HP StorageWorks DC and DC04 SAN Backbone Director Switches 41
