HT2000H_en_n.doc Page 141 of 167
1. Main screws
2. Upper cover
3. Syringe plunger
4. Heating body
5. Insulating gasket
6. Syringe holder
7. Upper spacer
8. Syringe barrel
9. Lower spacers (not used for 5ml syringe)
Proceed as described below:
1. Remove the two main screws (number 1 in Figure 109) that secure the upper cover using
the supplied allen key (see paragraph 2.3 “Tool kit“).

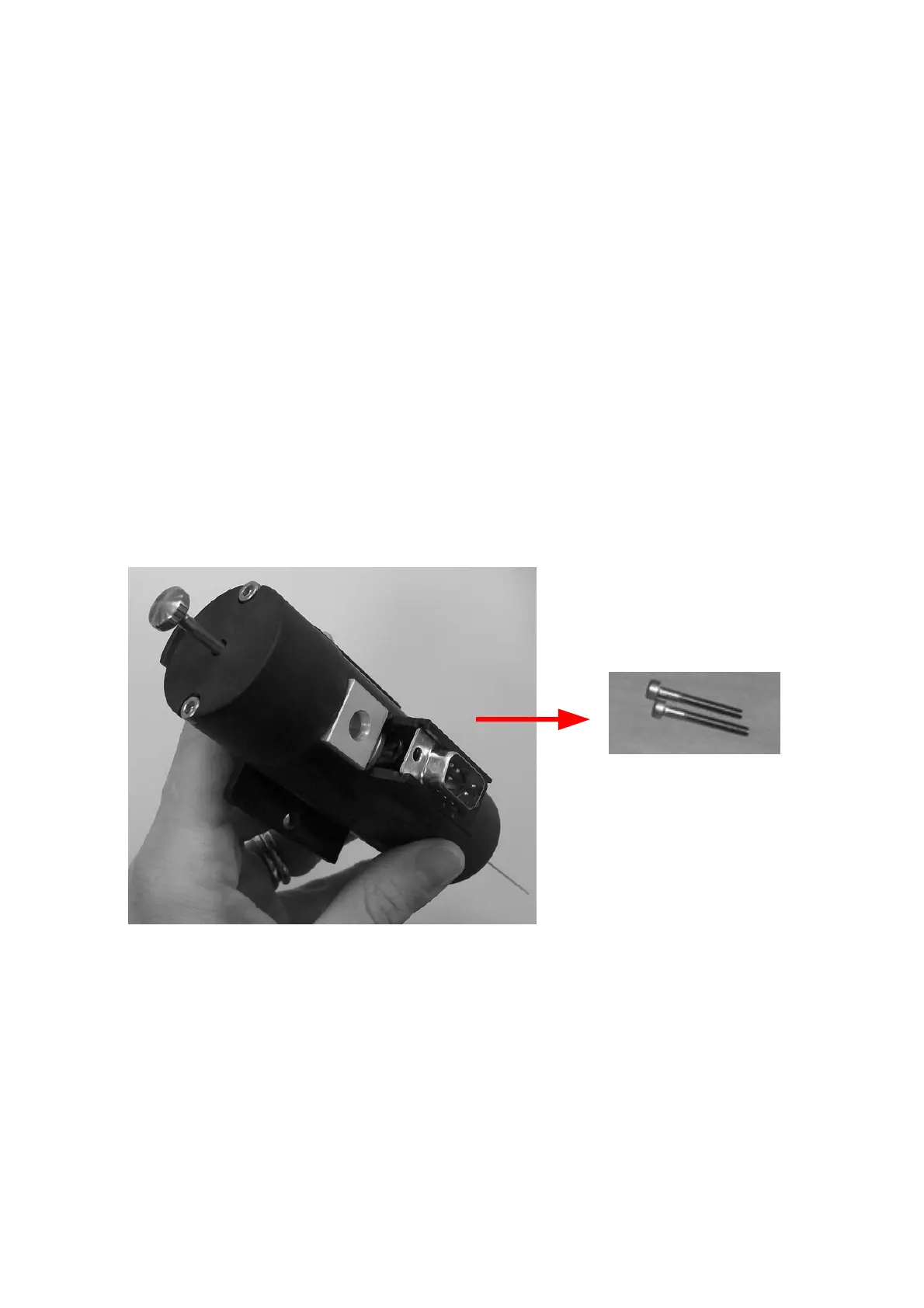

Figure 109: Main screw
2. Gently lift up the upper cover (number 2 in Figure 110) and the syringe plunger (number 3
in Figure 109)) to detach them from the heating body (number 4 in Figure 110).
