HTA HT2000H - Page 138

HT2000H_en_n.doc Page 142 of 167

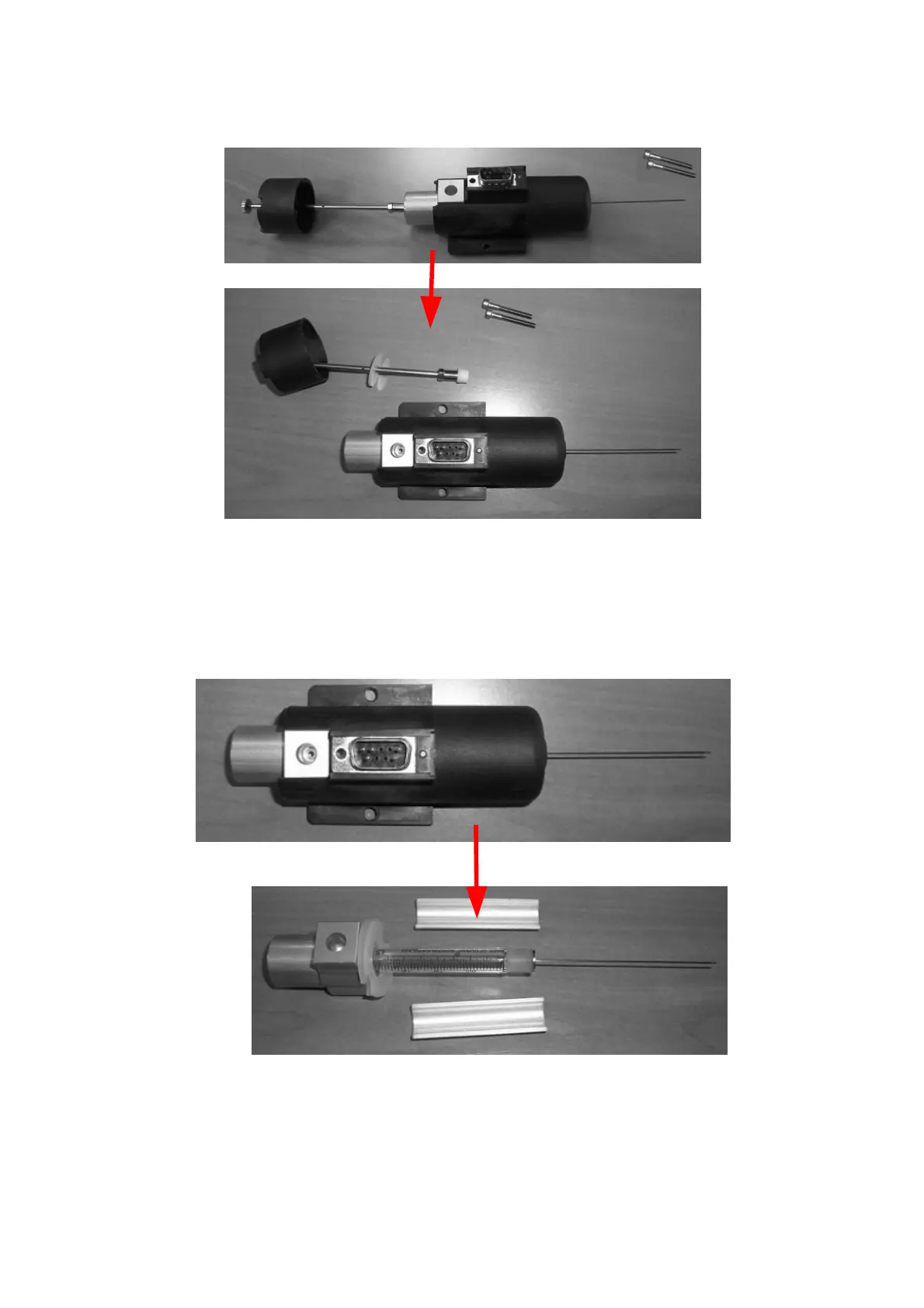

Figure 110: Removing the upper cover and the syringe plunger
3. Extract the syringe barrel (number 8 in Figure 111), with the insulating gasket (number 5 in
Figure 111), the syringe holder (number 6 in Figure 111), the upper spacer (number 7 in
Figure 111) and the lower spacers (number 9 in Figure 111, not present in the 5ml
syringe) from the heating body (number 4 in Figure 111). This operation is shown below:
Figure 111: Syringe warmer assembly disassembling_1
7
6
4
9
7
6
8
5
9
2
3
4
2
3
4
