10mm
min
50mm
max
48mm min
38mm
ma
2mm
min
22.4mm
to
23.0mm
12.2.1.2 Specifications for 10ml vials
x

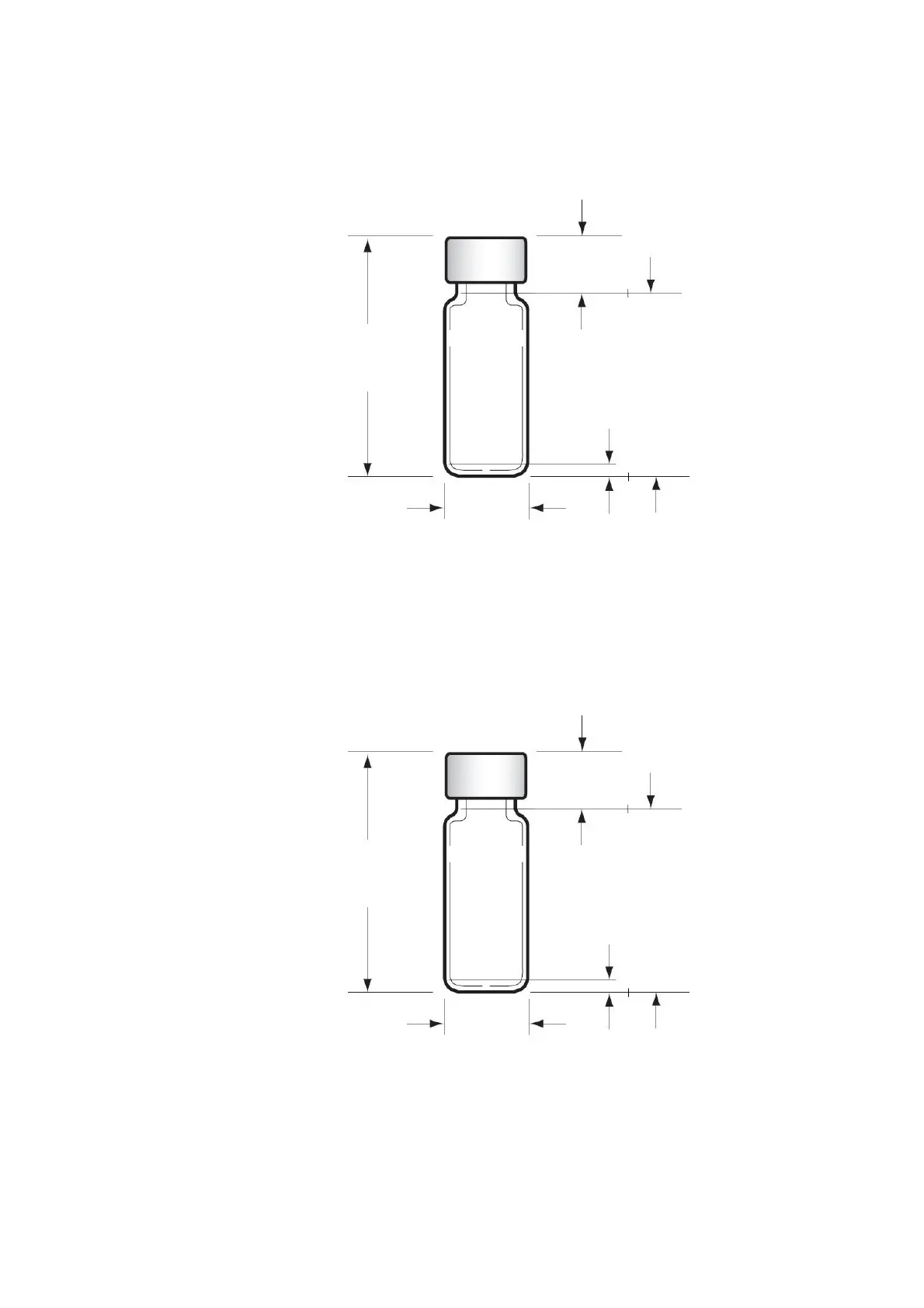

Figure 132: 10ml sample vial dimensions
12.2.1.3 Specifications for 6ml vials
Suitable only for HT2000H/HT2000HT autosampler (not for HT2100H)
Figure 133: 6ml sample vial dimensions
10mm
mi
n
42.2mm
max
40.2mm min
30.2mm
max
2mm
min
21.5mm
to
23mm
