HTA HT2000H - Page 23

HT2000H_en_n.doc Page 23 of 167

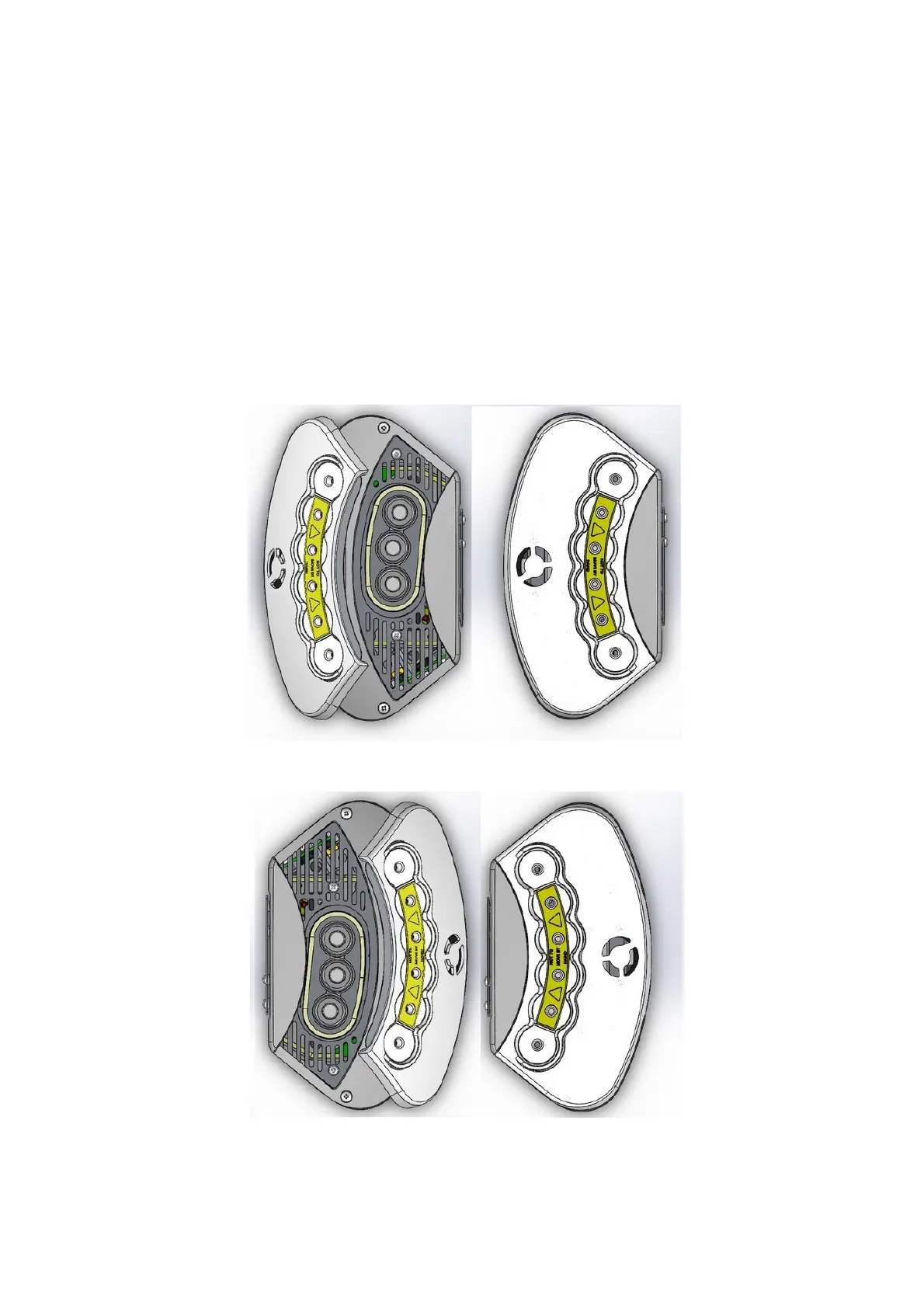

The oven positions are labelled A-F. In the left figure, the oven is shown open, while in the right
figure it is shown closed.
2.1.1.4 HT2000HT Incubation oven
On the side of the autosampler there is an incubation oven with 3 heated vial positions.
The oven is equipped with a fan, which is used to assist temperature stabilization and the cooling
down of the oven.
Left configuration
Right configuration
F
F
E
E
D
D
C
C
B
B
A
A
A
A
B
B
C
C
D
D
E
E
F
F
