HTA HT2000H - Page 24

HT2000H_en_n.doc Page 24 of 167
X
X
X
X
Figure 5: HT2000HT Incubation oven
The oven positions are labelled A-F, but only position B-C-D are used (3 positions). In the left
figure, the oven is shown open, while in the right figure it is shown closed.
2.1.1.5 HT2000H /HT2000HT Autosampler base

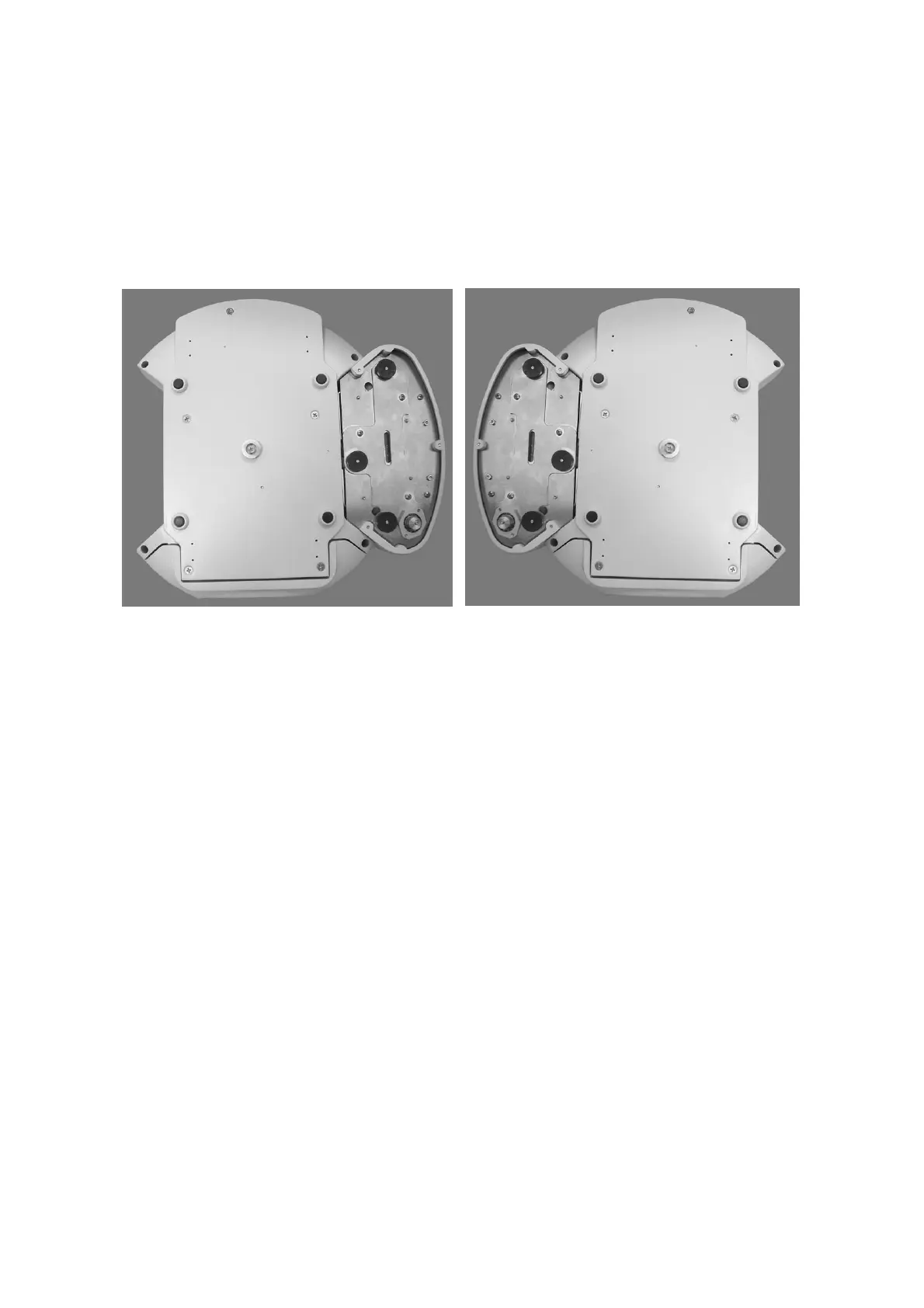

Figure 6: Left location for
incubation oven (bottom view)
Figure 7: Right location for
incubation oven (bottom view)
X
X
X
X
