HTA HT2000H - HT2100 H Model Overview and Controls

HT2000H_en_n.doc Page 25 of 167
“X” marks the rubber feet, these are important for the installation procedure (see paragraph 3.3.1
“Autosampler installation on the mounting plate“).
2.1.1.6 HT2000H/HT2000HT Control panel: touch screen display
The touch screen display is on the front of the unit.

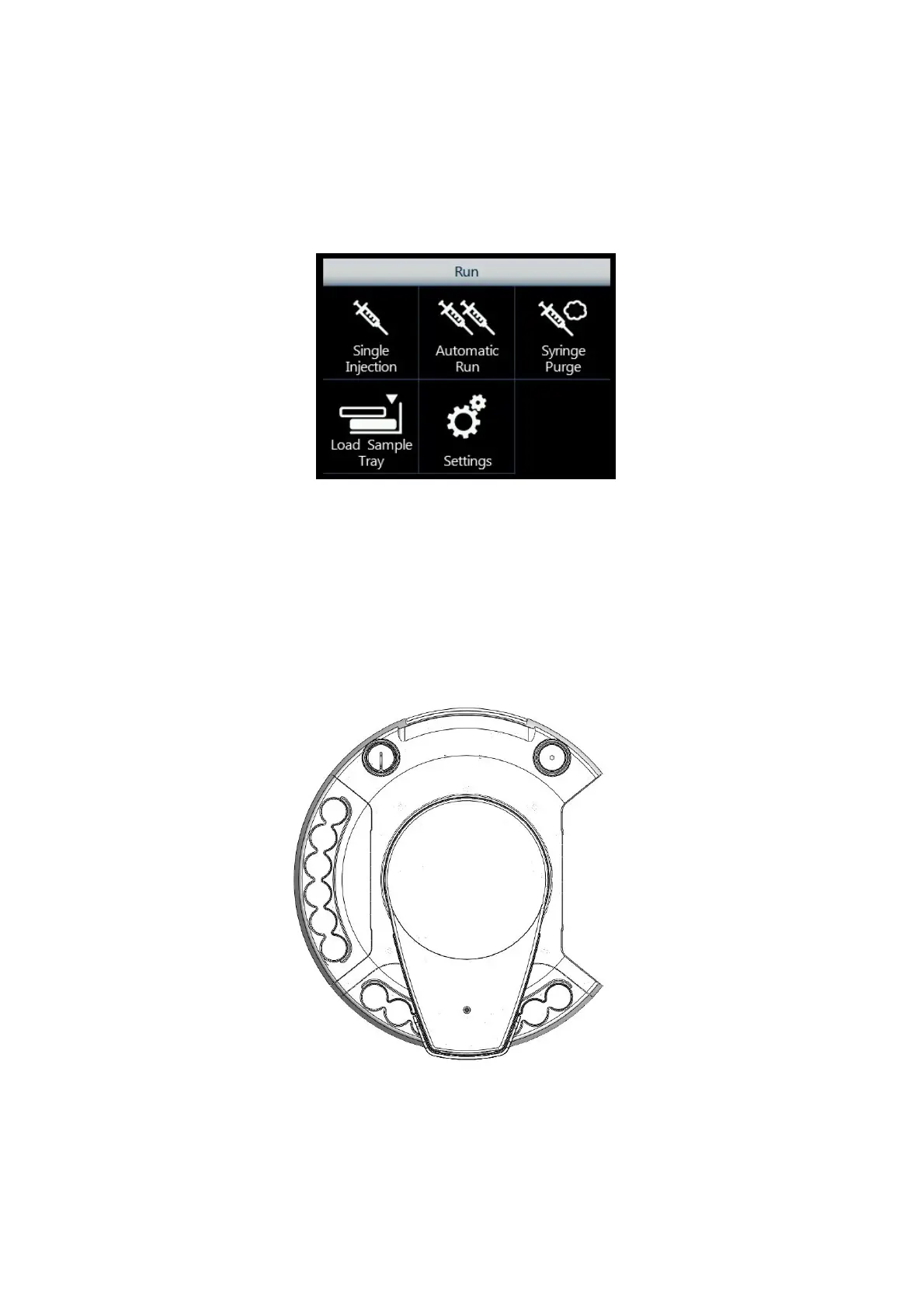

Figure 8: Touch screen display
The HT2000H/HT2000HT has a colour LCD display with touch control. The touch screen display
can be used to edit the method, sample list or set up as well as running the samples.
For further information on the HT2000H/HT2000HT touch screen display please refer to paragraph
2.4 “Touch screen display description (HT2000H/HT2000HT)”.
2.1.2 HT2100H Overview
2.1.2.1 HT2100 Main parts
Figure 9: HT2100H top view
4
6
1B
2
5
1A
3
