HT2000H_en_n.doc Page 26 of 167
1 DOUBLE FIXED RACK: rack 1A with 8 positions and rack 1B with 6 positions (total 14
sample positions).
The 1B rack may be located on the left or right side of the autosampler, depending on how the
autosampler is configured. Left/Right side configuration is factory set.
2 TURRET: holds the syringe
2 KEYPAD
3 INCUBATION OVEN/SHAKER: where one sample is heated
5 INJECTION AREA: region where an injection can be made
The injection area may also be located on the left or right side of the autosampler.
6 SYSTEM INTEGRITY TEST EXECUTION AREA: only if the System integrity kit option has
been supplied (see paragraph 1.7.2 “Options”.)
2.1.2.2 HT2100H Sample rack

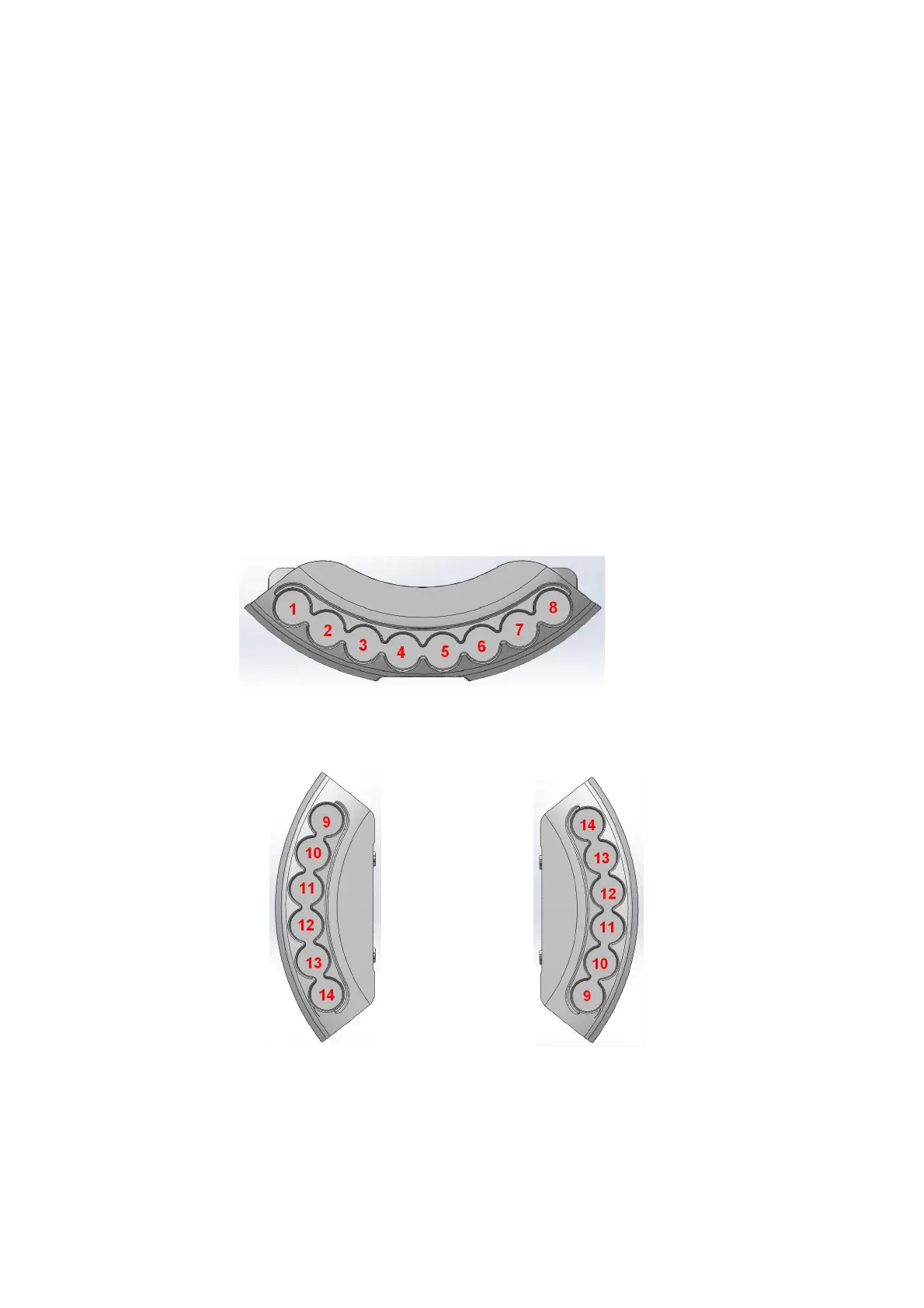

HT2100H uses a 14-position double fixed rack.
rack 1A
Rack 1B (left configuration) Rack 1B (right configuration)
Figure 10: HT2100H 14 positions double fixed rack
