Each vial is identified by a number (from 1 to 14). In block 1A (on the front of the autosampler) vial
positions are numbered from 1 to 8, in block 1B (on the left or right side of the autosampler,
depending on the factory configuration) vial positions are numbered from 9 to 14.
2.1.2.3 HT2100H Incubation oven
On the back of the autosampler there is the incubation oven, with 1 heated vial positions.
Figure 11: HT2100H Incubation oven
2.1.2.4 HT2100H Autosampler base

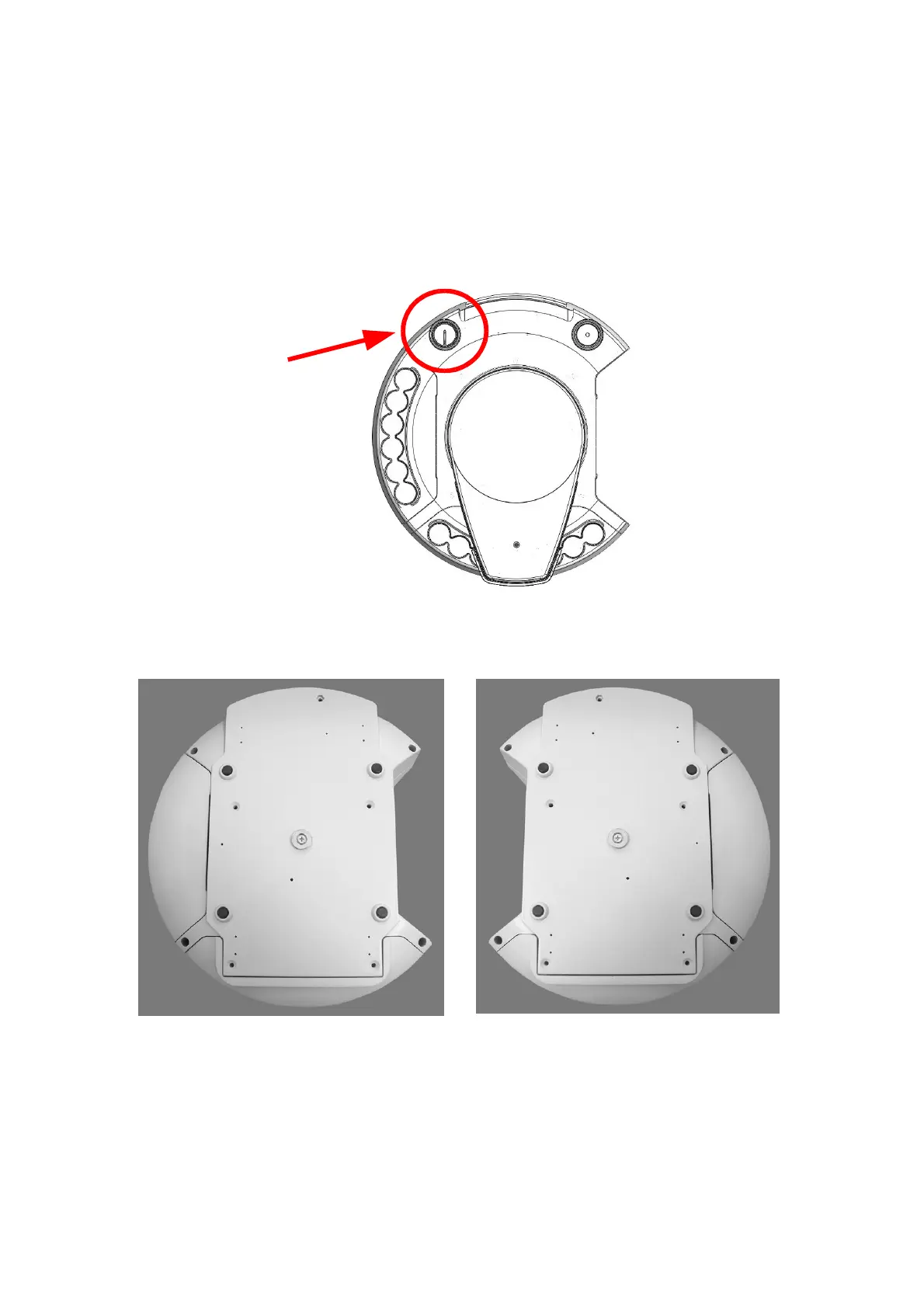

Figure 12: Right location for
rack 1B (bottom view)
Figure 13: Left location for rack 1B
(bottom view)
