Please follow these instructions in the following order:
1. Ensure that the autosampler mounting plate is correctly installed on the analyzer and that it allows
the correct centering of the autosampler over the injector. The instructions for mounting plate
installation are not available in this manual (for this information see the service documentation).
The mounting plate is specific for the GC brand and model. The following figure shows an
example:

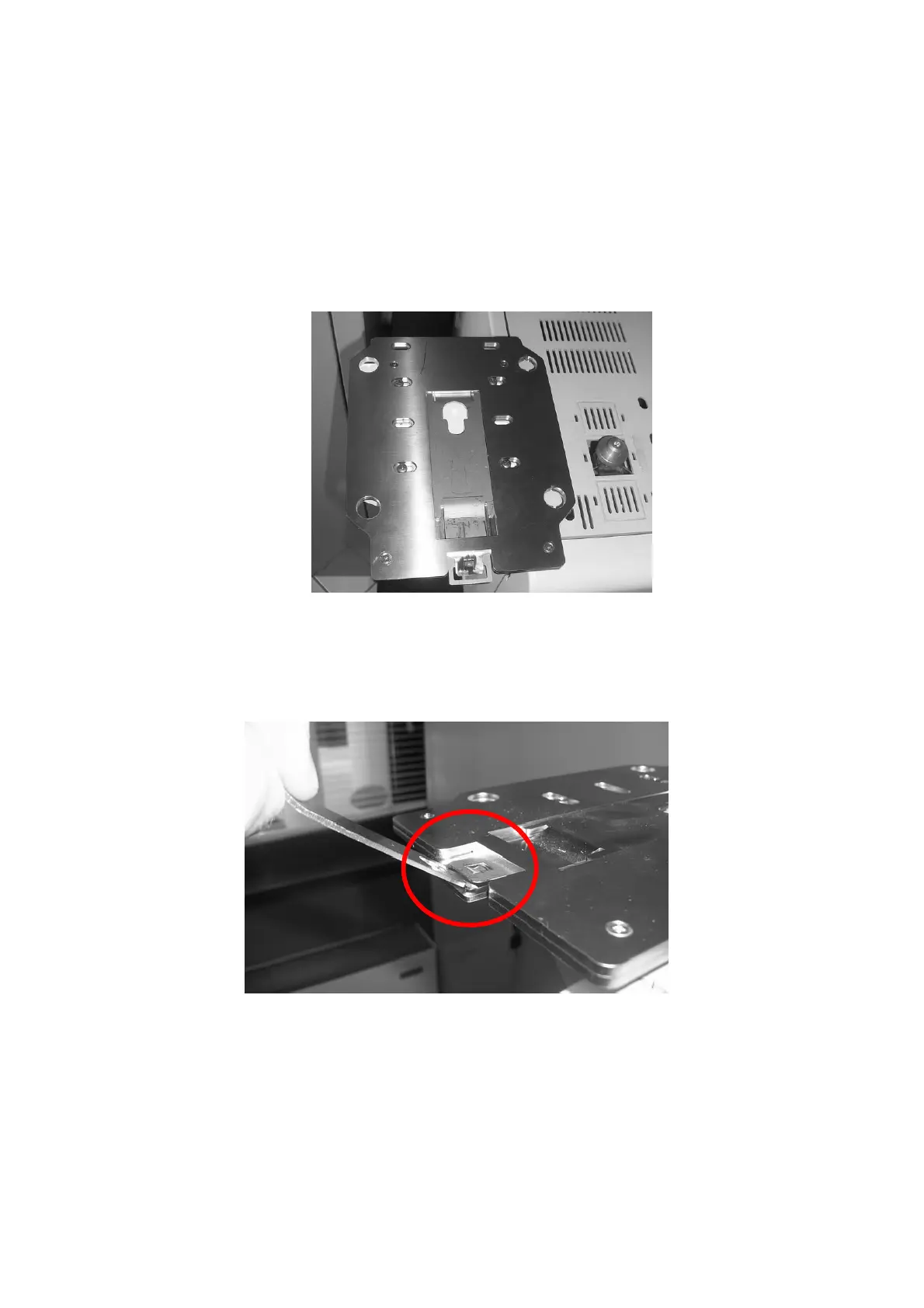

Figure 49: Example of a mounting plate correctly mounted on a GC
2. Open the mounting plate locker, pulling it out using the syringe pointer shown in the Figure 24. The
opening procedure is shown in the figures below.
