HT2000H_en_n.doc Page 50 of 167

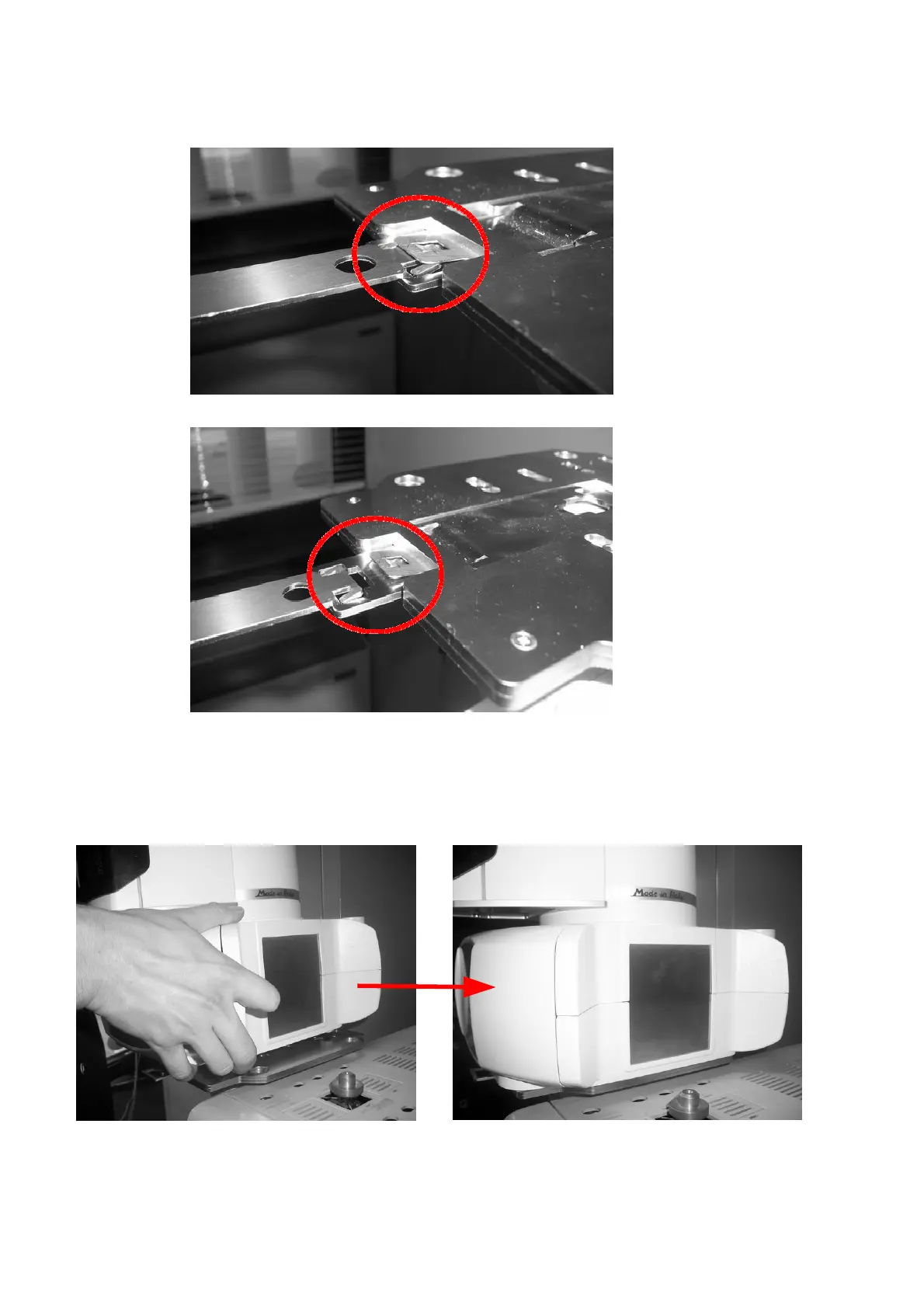

Figure 50: Mounting plate locker opening (example)
3. Place the autosampler over the mounting plate, ensuring that the four rubber feet of the
autosampler (indicated with “X” in Figure 6 and Figure 7 ) fit the four plate holes indicated with the
letter A in Figure 49:
Figure 51: Autosampler mounting over the mounting plate
