Step 7 Insert the new M48500N1 module into the slot, push the locking latch to the left,
and pull out the handle.
Step 8 Gently push the M48500N1 module along the guide rails into the subrack. Close
the handle, and push the locking latch to the right.

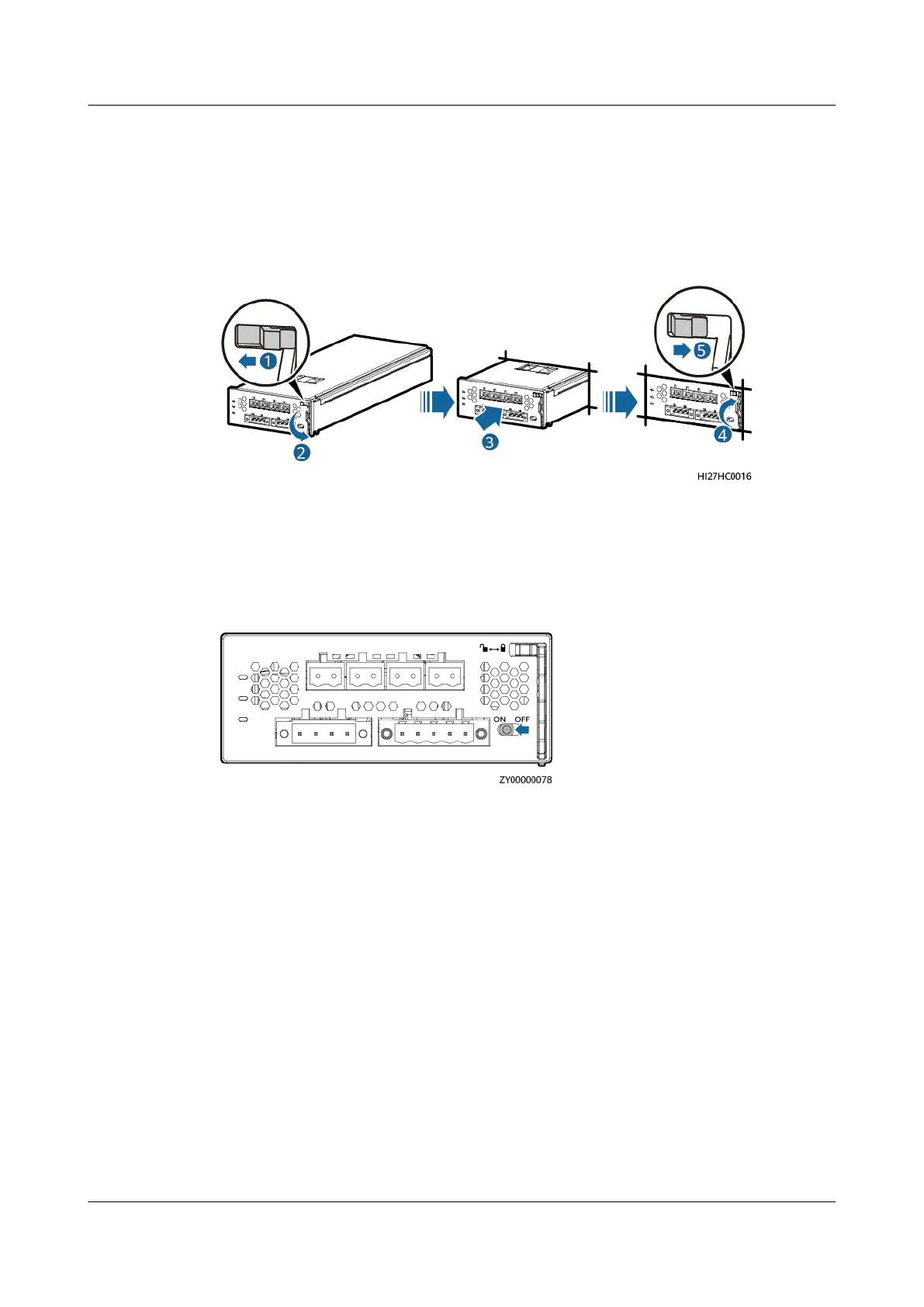

Figure 4-10 Installing a new M48500N1
Step 9 Connect the cables to the new M48500N1 module based on the recorded
information.
Step 10 Turn the switch on the new M48500N1 module to ON.
Figure 4-11 Turning the switch on the new M48500N1 module to ON
Step 11 Disconnect the ground cable from the ESD wrist strap, and remove the ESD wrist
strap and ESD gloves.
----End
Follow-up Procedure
Pack the removed component and return it to the local warehouse.
4.3.6 Replacing a BCU-1203A
Prerequisites
● The protective gloves, Phillips screwdriver, and key to the cabinet door are
available.
● The new BCU-1203A is intact.
