Pin Signal Description
4 NO Pins 4 and 6 are normally open (NO), and pins
5 and 6 are normally closed (NC).
5 NC
6 COM
7 CANH CAN bus high level
8 CANL CAN bus low level
3.2.18.2 Inverter Module I23002G1
The I23002G1 is an inverter module that supports DC/AC conversion. The input
voltage ranges from 42 V DC to 58 V DC, and the rated output voltage is 220 V
AC/230 V AC.
Appearance and Panel

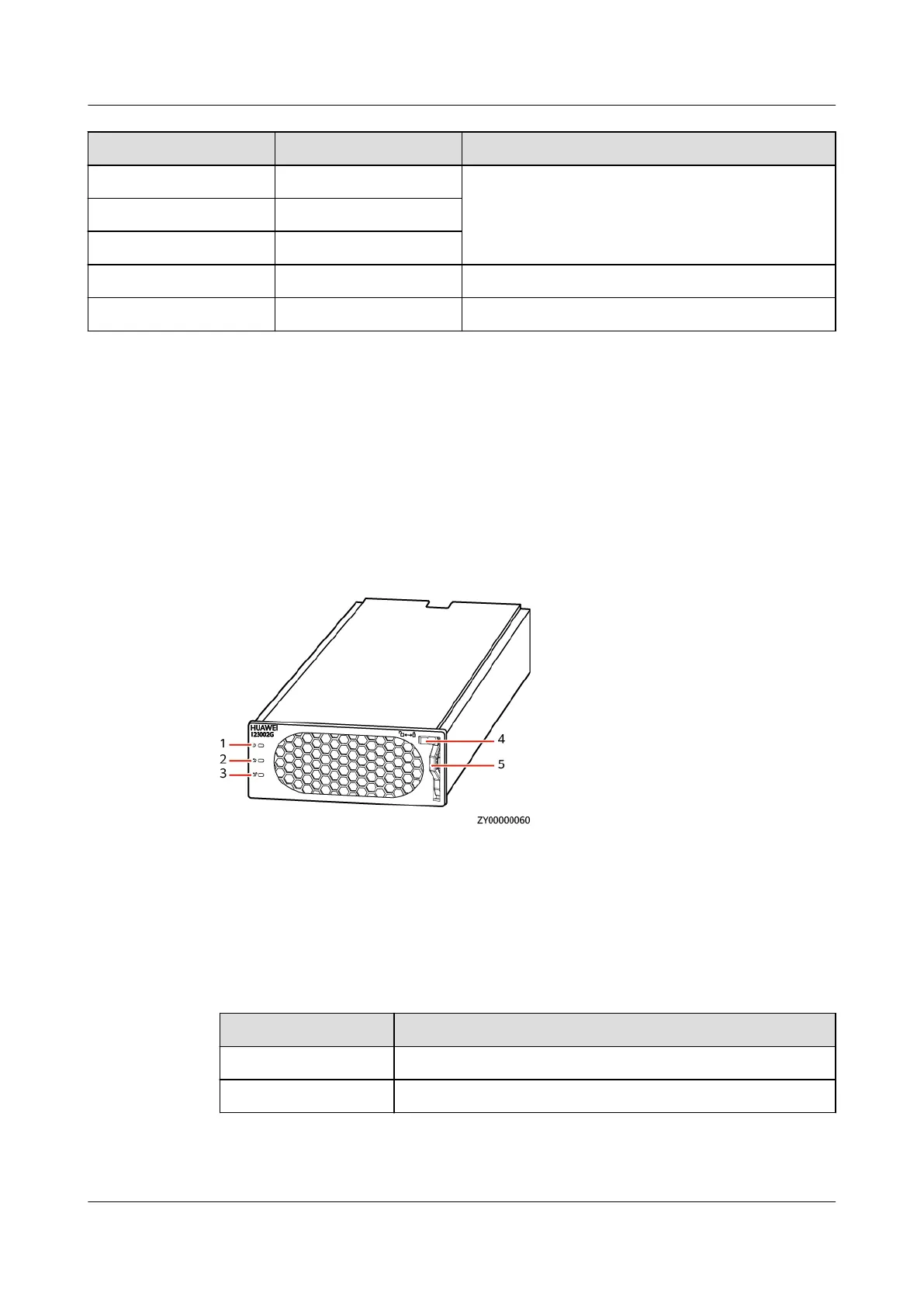

Figure 3-46 Appearance
(1) Power indicator
(2) Alarm indicator (3) Fault indicator
(4) Locking latch (5) Handle
Features
Table 3-49 Inverter module features
Item
Features
Hot swapping Supports hot swapping
Cooling mode Built-in fan (fan speed adjustable)
iSitePower Integrated Smart Site (ICC1000-A1-E1)
User Manual 3 Components
Issue 04 (2022-10-15) Copyright © Huawei Technologies Co., Ltd. 68
