3.3.1 Lithium Battery ESM-48100B1

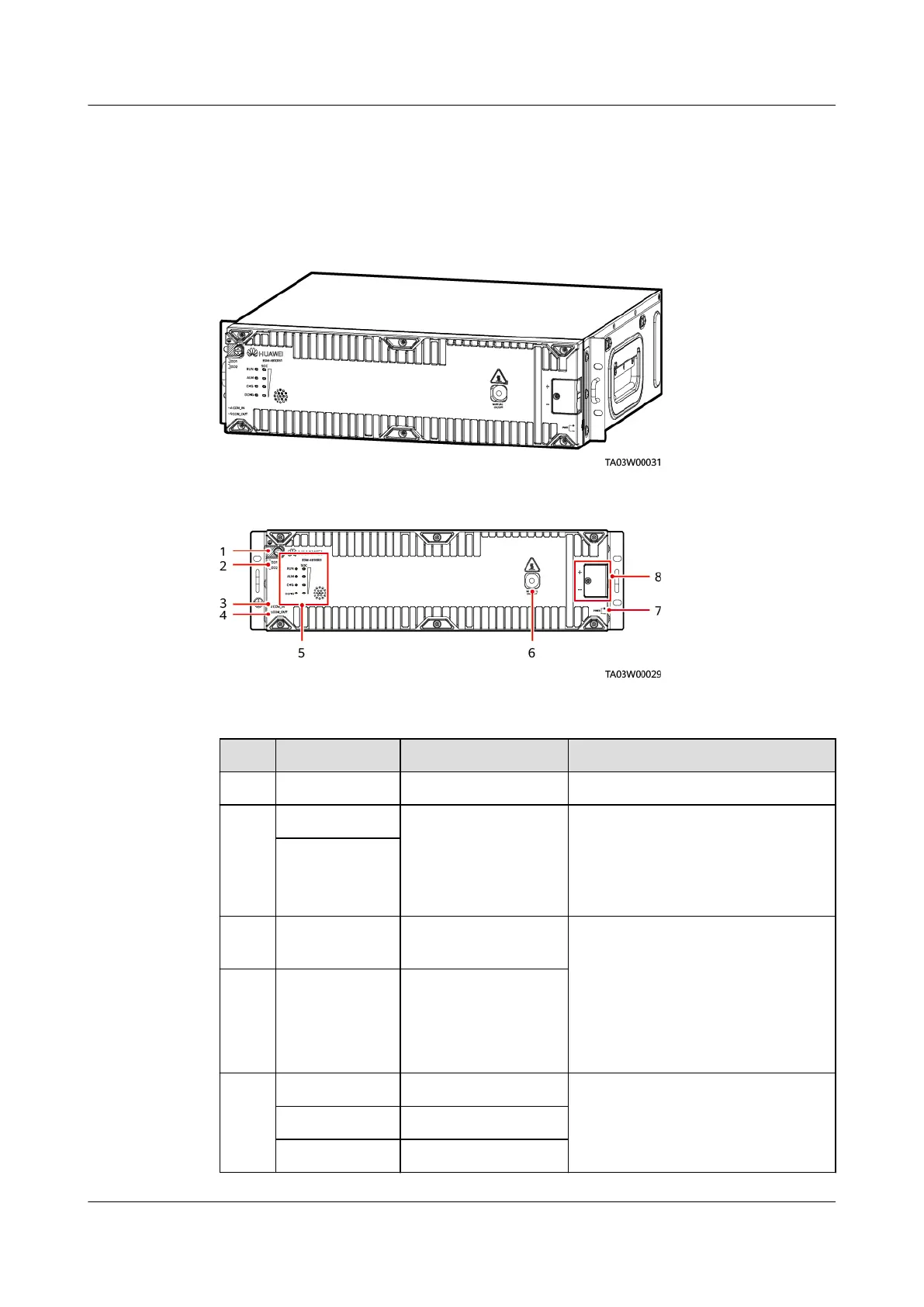

Appearance
Figure 3-83 ESM-48100B1
Figure 3-84 Panel and ports
Table 3-72 Panel and ports description
No.
Silk Screen Item Description
1 GND Protective ground M6 screw
2 DO1 ESM dry contact
output
Alarm output dry contact;
congurable (if the dry contact is
closed, an alarm is reported by
default). For details, see Table
3-75.
DO2
3 COM_ IN Communications
port
1. Used for information reporting
and communication
cascading.
2. Use RJ45 terminals and
provide the 1000 A surge
protection capability. For
details, see Table 3-74.
4 COM_ OUT Communications
port
5 RUN Run indicator For the diagram, see Figure 3-85.
For details about functions, see
Table 3-73.
ALM Alarm indicator
CHG Charge indicator
iSitePower Integrated Smart Site (ICC1000-A1-E1)
User Manual 3 Components
Issue 04 (2022-10-15) Copyright © Huawei Technologies Co., Ltd. 93
